SELECT A DIAGRAM

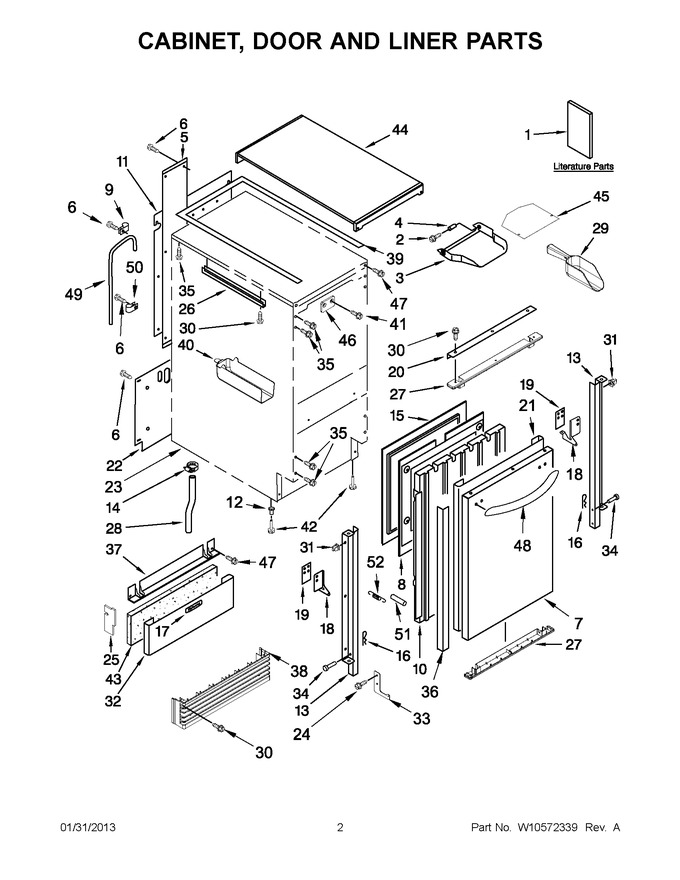

01 - Cabinet, Door And Liner Parts


02 - Evaporator, Grid, And Water Parts


03 - Pump Parts


04 - Control Panel Parts


05 - Unit Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10340961		Use & Care Guide		Appelez-nous	-
1	W10536704		Service & Wiring Sheet		Appelez-nous	-
2	3400886		Screw				$ 5.65
3	2208354		Bin, Door		Appelez-nous	-
4	2185678		Spacer				$ 11.03
5	2217394		Cover, Wiring		Appelez-nous	-
6	WP489442		Screw   (Replaces: 489442)			Immediately	$ 11.49
7	2208352B		Panel, Exterior (black)		Appelez-nous	-
8	2217298		Panel, Interior		Appelez-nous	-
9	WP489503		Clamp, Hose   (Replaces: 489503)			Immediately	$ 11.29
10	2208377		Insulation		Appelez-nous	-
11	W10218024		Ballast Back, Icemaker		Appelez-nous	-
12	3400240		Nut		Appelez-nous	-
13	2217465		Bracket, Door (right Side)		Appelez-nous	-
13	2217466		Bracket, Door (left Side)		Appelez-nous	-
14	WP489503		Clamp, Hose   (Replaces: 489503)			Immediately	$ 11.29
15	W11624959		Gasket, Door   (Replaces: 2217295)				$ 244.84
16	W11545866		Clip   (Replaces: W10136142)				$ 11.88
17	WPW10243391		Nameplate (stainless)   (Replaces: W10243391)				$ 58.31
18	2208425		Hinge (left Side)		Appelez-nous	-
18	2208426		Hinge (right Side)		Appelez-nous	-
19	2208401		Shim, Hinge		Appelez-nous	-
20	WP2208452B		Assembly, Magnet Endcap   (Replaces: 2208452B)				$ 115.37
21	2313817		Panel, Wrap		Appelez-nous	-
22	WPW10136200		Assembly, Unit Cover   (Replaces: W10136200)				$ 113.70
23	N/P		Cabinet & Liner (not Serviced)		Appelez-nous	-
24	WP488163		Screw   (Replaces: 488208)				$ 7.92
25	2217225		Pad, Foam		Appelez-nous	-
26	2185691		Channel, Wiring		Appelez-nous	-
27	W11413461		Endcap, Door (black)   (Replaces: 2208350B)		Appelez-nous	-
28	WP488366		Clip, Water Tube   (Replaces: 2208136)				$ 11.92
29	W11420408		Scoop   (Replaces: 2208386)				$ 28.61
30	WP3400884		Screw   (Replaces: 3400884)				$ 8.10
31	WP692400		Screw Grommet   (Replaces: 692400)			Immediately	$ 8.02
32	2208594S		Panel, Lower				$ 243.24
33	2208487		Bracket, Spring		Appelez-nous	-
34	2208417		Pin, Hinge		Appelez-nous	-
35	WP250830		Screw   (Replaces: 489048)				$ 8.78
36	2208595B		Grommet, Edge Guard		Appelez-nous	-
37	2208383B		Endcap, Panel (black)		Appelez-nous	-
38	WP2217206B		Grill, Front (black)   (Replaces: 2217206B)				$ 116.28
39	2217296		Gasket, Top Panel		Appelez-nous	-
40	W10557773		Holder, Scoop		Appelez-nous	-
41	8281191		Screw				$ 6.77
42	8193716		Leg, Leveling   (Replaces: 3374849)			Immediately	$ 88.96
43	2208384		Insulation		Appelez-nous	-
44	W10320113		Top (black)		Appelez-nous	-
45	2185690		Shield, Electrical		Appelez-nous	-
46	2208434		Strike, Magnet		Appelez-nous	-
47	WP489474		Screw   (Replaces: 489474)			Immediately	$ 8.55
48	WP9872207S		Handle, Door (stainless)   (Replaces: 9872207S)				$ 193.95
49	WPW10217906		Tube, Air Vent   (Replaces: W10217906)				$ 125.83
50	W10861184		Clamp, Hose   (Replaces: 489505)				$ 65.90
51	2208530		Dampener, Spring		Appelez-nous	-
52	WP2208570		Spring, Hinge   (Replaces: 2208570)				$ 23.79

    View Diagram in Separate Window       Print Part List
