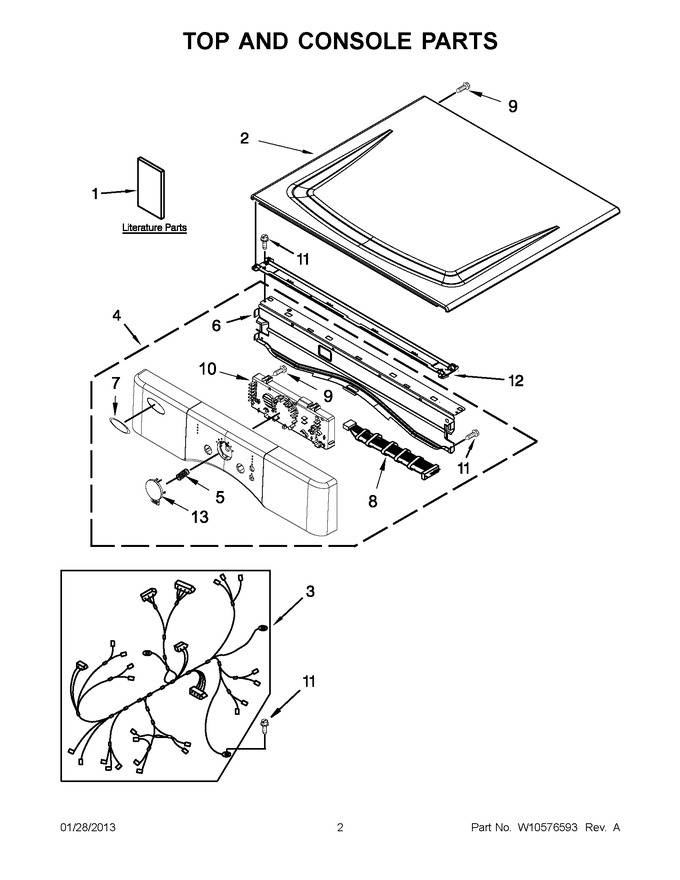

01 - Top And Console Parts
02 - Cabinet Parts
03 - Door Parts
04 - Bulkhead Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10443045 | Installation Instructions |
|
- | |||||
| 1 | W10296184 | Use & Care Guide |
|
- | |||||
| 1 | W10443109 | Tech Sheet |
|
- | |||||
| 1 | 3978996 | Wiring Diagram |
|
- | |||||
| 2 | WPW10336080 | Top (white) (Replaces: W10336080) |
|
$ 298.79 | |||||
| 3 | W10555108 | Main Wiring Harness |
|
$ 165.50 | |||||
| 4 | WPW10215458 | Panel, Console Assembly (Replaces: W10215458) |
|
$ 477.86 | |||||
| 5 | W10215807 | Spring, Button |
|
$ 19.82 | |||||
| 6 | WP8565237 | Bracket, Console (Replaces: 8565237) |
|
$ 170.79 | |||||
| 7 | W10117943 | Badge, Whirlpool |
|
- | |||||
| 8 | W10259049 | Cable, User Interface |
|
$ 153.43 | |||||
| 9 | W10006580 | Screw |
|
- | |||||
| 10 | W10215814 | Assembly, User Interface |
|
$ 244.23 | |||||
| 11 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.45 | ||||
| 12 | WPW10266747 | Channel-water, Dryer (Replaces: W10266747) |
|
$ 66.56 | |||||
| 13 | W10212800 | Button, Cycle |
|
$ 73.46 |
