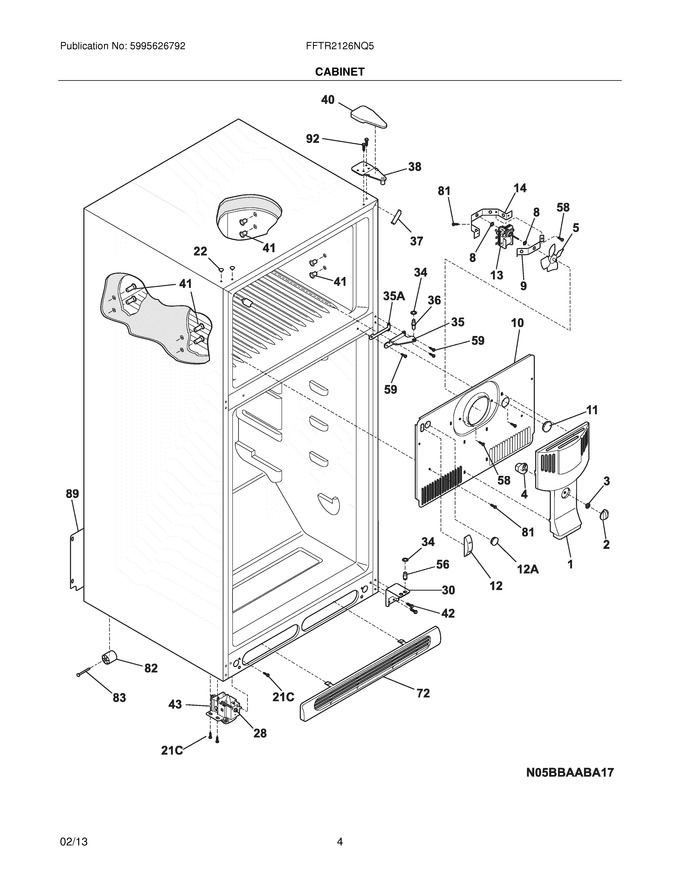

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	240355407		Cover-fan				$ 32.45
2	240367001		Knob-damper Control			Immediately	$ 64.04
3	5303001028		Nut,push-on		Appelez-nous	-
4	240367401		Damper-fan Cover				$ 41.32
5	5308000010		Fan Blade,red ,evaporator Fan			Immediately	$ 54.48
8	240438003		Bushing-motor Mtg,(2)   (Replaces: 242014101)				$ 19.38
9	5303292396		Bracket-motor Mtg,front				$ 72.30
10	240313612		Cover-evap Coil,w/o Light		Appelez-nous	-
11	5303208309		Plug-hole, Factory Test				$ 50.56
12	242193602		Plug-hole,icemaker				$ 16.01
14	240438003		Bracket-motor Mtg,rear   (Replaces: 5303292397)				$ 19.38
22	215774901		Plug-button,bisque ,upr Hinge Holes   (Replaces: 215774919)			Immediately	$ 20.22
28	5304499445		Bolt-roller Adj,hex Washer Head ,1/4-20 X 4.020,(2) ,special   (Replaces: 240335502)			Immediately	$ 34.81
30	240314011		Bracket-lower Hinge,zinc			Immediately	$ 85.84
34	240311303		Washer,hinge ,nylon ,(2)			Immediately	$ 11.80
35	240313806		Bracket-ctr Hinge,zinc				$ 57.60
36	240516402		Pin-center Hinge		Appelez-nous	-
37	240337611		Trim-cabinet Corner,bisque ,(2)				$ 2.79
38	240313703		Bracket-upper Hinge			Immediately	$ 35.86
40	240354403		Cover-upper Hinge,bisque				$ 40.95
41	5304500407		Grommet,shelf Mtg ,1.25`` ,lh ,(4)   (Replaces: 5308009759)			Immediately	$ 7.09
42	240578902		Screw,hex Head ,1/4-20 X 5/8			Immediately	$ 15.75
43	5304499445		Roller Assy,adjustable ,front ,(2)   (Replaces: 240335005)			Immediately	$ 34.81
56	240516502		Pin-lower Hinge				$ 80.89
58	5304456287		Screw,hex Washer Head ,8-15a X 0.500				$ 0.76
59	240442708		Screw-no.10-32 X 3/4,zinc   (Replaces: 240442706)				$ 9.27
72	241839406		Grille/kickplate,bisque				$ 66.31
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 15.75
82	5304418225		Roller,compressor Base ,rear ,(2)				$ 57.30
83	5304455655		Rivet,flat Head ,1/4 Od X 1-3/4 ,roller Pin			Immediately	$ 39.27
89	241733911		Cover-access,with Label   (Replaces: 241733907)				$ 56.12
92	241710601		Screw,hex Washer Hd ,1/4 X 7/8 ,hinge Mtg				$ 14.96
12A	240374401		Plug-wtr Inlet Tube,round ,1``				$ 12.15
21C	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500			Immediately	$ 15.75
35A	240336802		Spacer-hinge,center ,white			Immediately	$ 20.48
F12A	241586701		Plug-foam-wtr-inlet,round				$ 19.69
F13	241854401		Motor-fan,w/frzr Harness				$ 198.56
NI	5304414035		Paint,touch-up ,bisque				$ 14.96
NI	215474201		Washer,``slinger`` ,nylon ,evap Fan Shaft			Immediately	$ 20.48
NI	240568606		Seal-coil Cover				$ 14.18
NI	241500303		Screw,hex Washer Head ,8-18ab X 1/2			Immediately	$ 5.06
NI	240494001		Plug,button ,cab Liner Holes   (Replaces: 240479601)			Immediately	$ 20.22
NI	241941202		Screw,hex Washer Head ,8-18 X 5/16   (Replaces: 240433204)				$ 16.85
