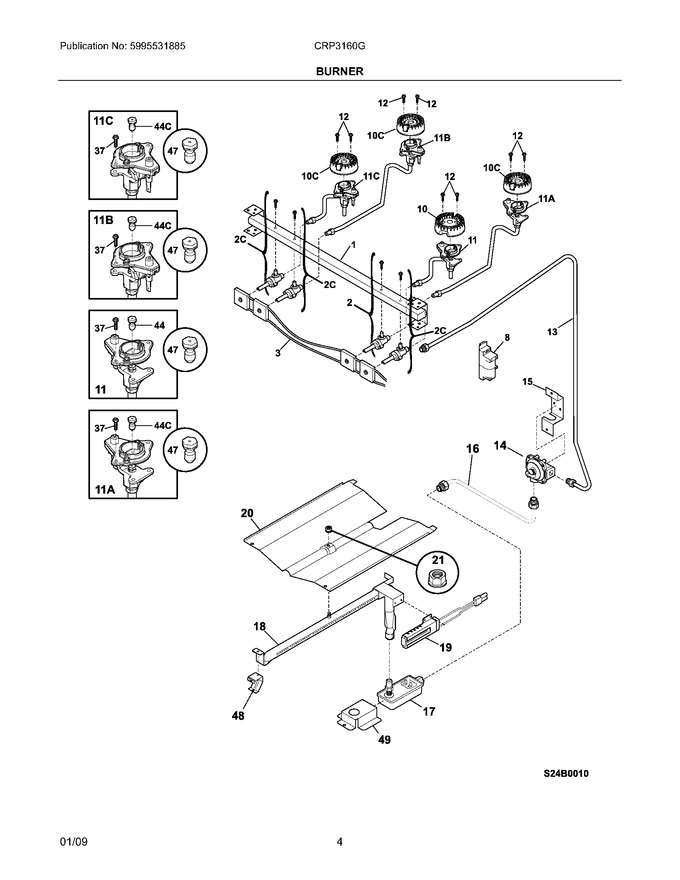

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	316438000		Burner,sealed ,12k				$ 75.34
12	316529700		Screw,burner Head ,mtg. ,(8)				$ 10.76
13	316545800		Tube,3/8 ,aluminum , Rgltr To Manf ,with Fittings		Appelez-nous	-
14	316091708		Controller-regulator Lp				$ 115.03
15	316091600		Bracket-regulator				$ 81.73
20	316496001		Baffle,oven Burner				$ 78.33
21	154079601		Nut,hex Head Sems   (Replaces: 5303013272)				$ 0.46
37	316240600		Screw,assy Mtg ,(8) ,ignitor/orifice			Immediately	$ 13.48
44	316527503		Orifice,top Burner ,12k		Appelez-nous	-
47	GRLP3		Lp Conversion Kit,w/instructions				$ 63.46
48	3018603		Bracket,support ,oven Burner		Appelez-nous	-
49	316416300		Bracket,safety Valve		Appelez-nous	-
44C	316527501		Orifice,top Burner ,9.5k				$ 20.48
F1	316446800		Pipe,manifold		Appelez-nous	-
F10C	316558300		Burner,sealed ,9.5k   (Replaces: 316527400)			Immediately	$ 58.28
F11	316536609		Ignitor/orifice Assy.,top Burner ,right Front,12k ,w/holder ,tube		Appelez-nous	-
F11A	316536605		Ignitor/orifice Assy.,top Burner ,right Rear,9.5k ,w/holder ,tube		Appelez-nous	-
F11B	316536604		Ignitor/orifice Assy.,top Burner ,left Rear,9.5k ,w/holder ,tube				$ 105.84
F11C	316536606		Ignitor/orifice Assy.,top Burner ,left Front,9.5k ,w/holder ,tube		Appelez-nous	-
F16	316065006		Tube-valve To Rgltr,3/8   (Replaces: 316436500)				$ 135.66
F17	3203459		Valve-safety				$ 337.38
F18	316114300		Burner,oven				$ 188.75
F19	5304509706		Ignitor,oven Kit ,w/nut & Instr   (Replaces: 316489402)			Immediately	$ 210.66
F2	5303935240		Valve,10k Top Burner ,w/mtg Screw		Appelez-nous	-
F2C	5303935241		Valve,8k Top Burner ,w/mtg Screw		Appelez-nous	-
F3	316219020		Wiring Harness,w/igntr Switch				$ 47.25
F8	5304505695		Module,spark   (Replaces: 316135702)			Immediately	$ 75.73
FNI	316526901		Harness,ignitor				$ 110.78
FNI	316253700		Wiring Harness,ignitor Module				$ 139.28
NI	5303271648		Screw,wafer Hd Sq Dr ,8-18ab X 0.5			Immediately	$ 14.96
NI	316021104		Screw`hex ,8-18 X 3/8 `nick `(3) `regulator Brkt				$ 8.66
NI	316443200		Bracket-support		Appelez-nous	-
NI	316215600		Screw,valve Mtg. ,1/4 - 20			Immediately	$ 15.75
NI	316248105		Instructions,lp Kit		Appelez-nous	-
