View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

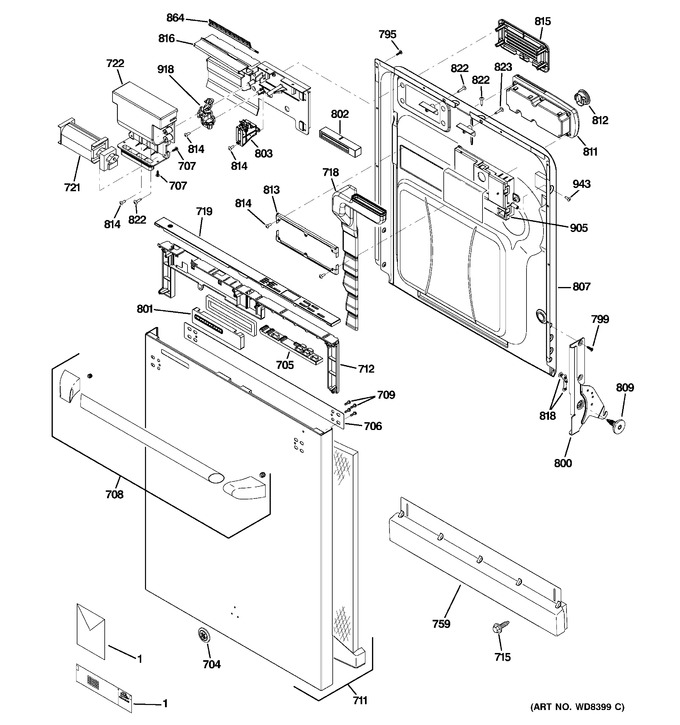

1 - Escutcheon & Door Assembly
2 - Body Parts
3 - Upper Rack Assembly
4 - Lower Rack Assembly
5 - Motor-pump Mechanism
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-30260 | Pm Instruction Install |
|
- | |||||
| 1 | WD09X10058 | Handle Ss |
|
- | |||||
| 1 | WD01X10295 | Strip Hardness Tester |
|
- | |||||
| 1 | WD01X10512 | Tco Assembly |
|
- | |||||
| 1 | WD09X10059 | End Cap Handle |
|
- | |||||
| 1 | WG04F04688 | Inlet Transition Piece (Replaces: WD12X10351) |
|
$ 51.54 | |||||
| 1 | WG04A01126 | Hub Spray Arm Mid (Replaces: WD12X10353) |
|
$ 5.72 | |||||
| 1 | WD35X10347 | Kit - O Ring |
|
- | |||||
| 1 | 31-30616-3 | Pm Mini Manual |
|
- | |||||
| 1 | 49-55065-1 | Pm Owners Manual |
|
- | |||||
| 1 | WD00X939 | Nut Grater |
|
- | |||||
| 1 | WD00X946 | Ct Screw Asm |
|
- | |||||
| 704 | WD13X10057 | Handle Asm |
|
- | |||||
| 704 | WD13X10038 | Handle Asm |
|
- | |||||
| 705 | WR02X11850 | Set Screw |
|
- | |||||
| 709 | WB01T10063 | Screw 1/4-tpi Fl Hx 9/10 |
|
- | |||||
| 711 | WD34X11727 | Panel Asm Outer |
|
- | |||||
| 712 | WD27X10374 | Console & Cover Asm |
|
- | |||||
| 712 | WS01A00013 | Badge (Replaces: WD34X11435) |
|
$ 30.04 | |||||
| 718 | WD12X10190 | Conduit Exhaust Asm |
|
- | |||||
| 719 | WD27X10354 | Console Cover Asm |
|
- | |||||
| 799 | WD02X10149 | Scr 10-32 Gxtt Flp.595 S |
|
- | |||||
| 800 | WG04L01512 | Arm Hinge Lh Asm (Replaces: WD14X10016) |
|
$ 217.35 | |||||
| 800 | WD14X10021 | Arm Hinge Rh Asm |
|
- | |||||
| 803 | WG02F02962 | Latch Asm (Replaces: WD13X10031) |
|
$ 73.90 | |||||
| 809 | WG04A01243 | Scr 10-32gx Flt25 .615 S (Replaces: WD02X10084) |
|
$ 3.57 | |||||
| 811 | WG04F00692 | Module Rinse And Cap Asm (Replaces: WD12X10163) |
|
Immediately | $ 154.01 | ||||
| 812 | WG04L00093 | Cap Rinse Asm (Replaces: WD12X10122) |
|
$ 35.73 | |||||
| 813 | WG04A00035 | Bracket Detergent Disp (Replaces: WD01X10207) |
|
$ 5.72 | |||||
| 814 | WD02X10104 | Scr 8-10 Pl Trp 1/2 S |
|
- | |||||
| 815 | WG04L01582 | Cover Vent (Replaces: WD12X10127) |
|
$ 27.16 | |||||
| 818 | WG04L01539 | Bearing Hinge Arm (Replaces: WD12X10313) |
|
$ 10.54 | |||||
| 864 | WD12X10067 | Flapper Vent |
|
- | |||||
| 905 | WG04A02628 | Module Control Asm (Replaces: WD21X10439) |
|
$ 252.15 | |||||
| 918 | WG04F01276 | Vent Driver Asm (Replaces: WD21X10172) |
|
$ 62.96 | |||||
| 943 | WZ05X0219 | Screw |
|
- |
