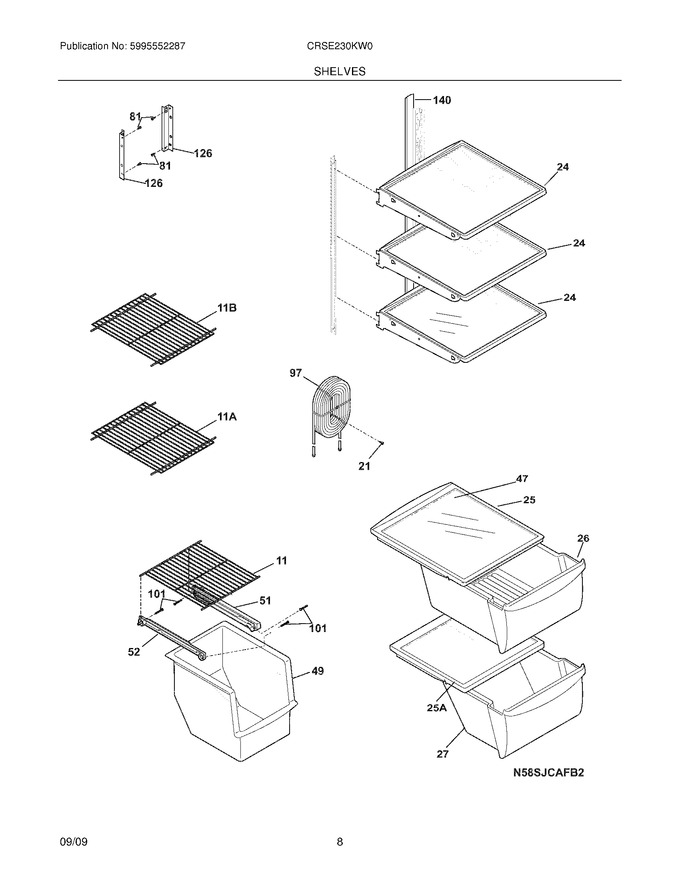

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	241657601		Shelf,flip Up ,wire				$ 88.31
21	218843801		Screw,hx Wshr Hd Sems ,8-15a X 0.625   (Replaces: 5304455658)				$ 16.01
24	240355211		Shelf-``spill-safe``,fixed				$ 224.07
25	240354502		Cover-crisper Pan,upper			Immediately	$ 111.13
26	240354723		Pan-crisper,upper   (Replaces: 240354706)			Immediately	$ 182.57
27	240354805		Pan-crisper,lower   (Replaces: 240354806)				$ 186.32
47	240350613		Insert-pan Cover,glass   (Replaces: 240350631)				$ 137.35
49	240564301		Basket-sliding				$ 146.63
51	240343002		Hanger-basket,rh				$ 72.47
52	240343102		Hanger-basket,lh				$ 77.52
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 15.75
97	240545308		Water Tank				$ 126.79
101	218493101		Screw,hex Washer Head ,8-18ab X 1-3/4				$ 14.96
126	241674401		Channel,auger Mtg ,lh				$ 52.76
126	241674402		Channel,auger Mtg ,rh				$ 48.04
140	240430501		Channel,wtr Tube Cover				$ 108.68
11A	5304532465		Shelf,fixed ,freezer   (Replaces: 241657501)				$ 60.11
11B	5304532464		Shelf,fixed Upper ,freezer   (Replaces: 241657503)		Appelez-nous	-
25A	240354602		Cover-crisper Pan,lower				$ 98.29
NI	242028528		Energy Guide		Appelez-nous	-
