SELECT A DIAGRAM

1 - Freezer Door

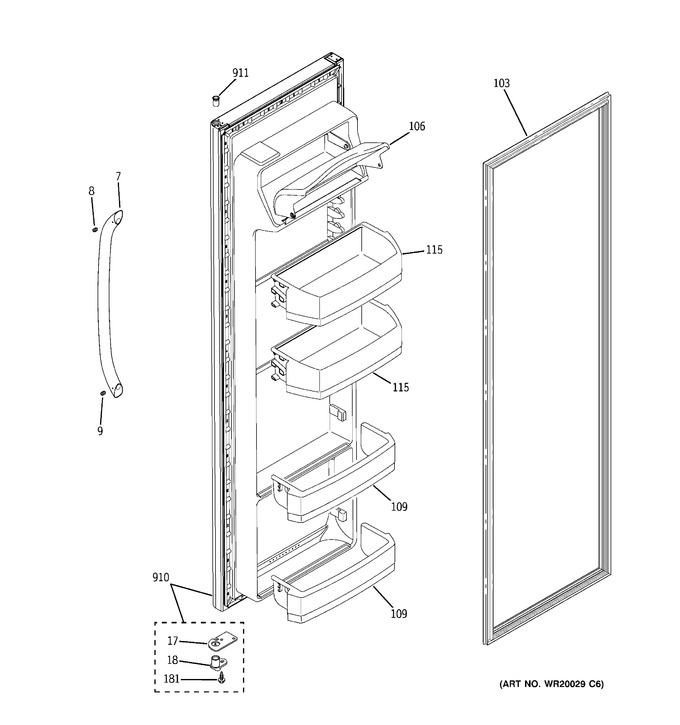

2 - Fresh Food Door


3 - Freezer Section


4 - Freezer Shelves


5 - Ice Maker & Dispenser


6 - Fresh Food Section


7 - Fresh Food Shelves


8 - Sealed System & Mother Board


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	WR12X10992		Handle Plastic Asm Ww		Appelez-nous	-
7	WR12X10989		Handle Plastic Asm Bb		Appelez-nous	-
7	WR12X10991		Handle Plastic Asm Bq		Appelez-nous	-
8	WS01F02074		Set Screw   (Replaces: WR02X11754)				$ 15.44
9	WR01X10838		Fastener Handle		Appelez-nous	-
17	WR02X11474		Plate Door Stop Ff		Appelez-nous	-
17	WR02X11430		Plate Door Stop Ff		Appelez-nous	-
17	WR02X11465		Plate Door Stop Ff		Appelez-nous	-
18	WG03L01095		Cam & Thimble Ff   (Replaces: WR02X11479)				$ 6.09
103	WR24X10134		Gasket Door Ff		Appelez-nous	-
103	WR24X10130		Gasket Door Ff		Appelez-nous	-
106	WR01L14045		Door Dairy   (Replaces: WR22X10012)				$ 22.93
109	WR71X11000		Shelf Module Fixed Ff		Appelez-nous	-
115	WR71X10959		Shelf Module Ff		Appelez-nous	-
181	WZ04X10001		Scr 10-32 Gx Hxws 9/16 S		Appelez-nous	-
910	WR78X12807		Dr Asm Foam 22 Ff		Appelez-nous	-
910	WR78X12805		Doorasm Foam 22ff		Appelez-nous	-
910	WR78X12806		Door Asm Foam Ff		Appelez-nous	-
911	WR01X10201		Thimble Top Closed		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
