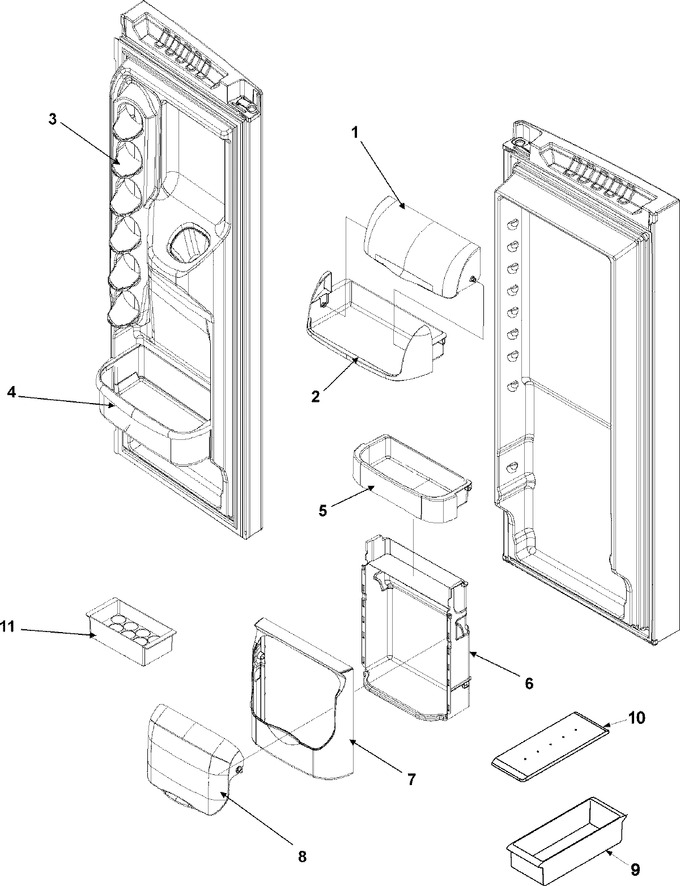

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP67003637		Door, Dairy   (Replaces: 67003637)	10		Immediately	$ 82.67
2	WP67001279		Tray, Dairy   (Replaces: 67001279)	10		Immediately	$ 88.01
3	67006311		Dispenser, Can	10			$ 36.65
4	67006404		Refrigerator Bucket Assembly	10	Appelez-nous	-
5	WP67006313		Bucket, Chiller Top   (Replaces: 67006313)	10		Immediately	$ 84.62
6	W11266639		Frame, Chiller (rear)   (Replaces: 67006315)	10			$ 269.63
7	W11266639		Frame, Chiller (frt)   (Replaces: 67006314)	10			$ 269.63
8	WP67006312		Door, Chiller   (Replaces: 67006312)	10		Immediately	$ 86.29
9	10423131		Bin, Utility	10			$ 31.13
10	10436404		Lid, Utility	10			$ 60.85
11	10436506		Tray, Egg	10			$ 8.28

    View Diagram in Separate Window       Print Part List
