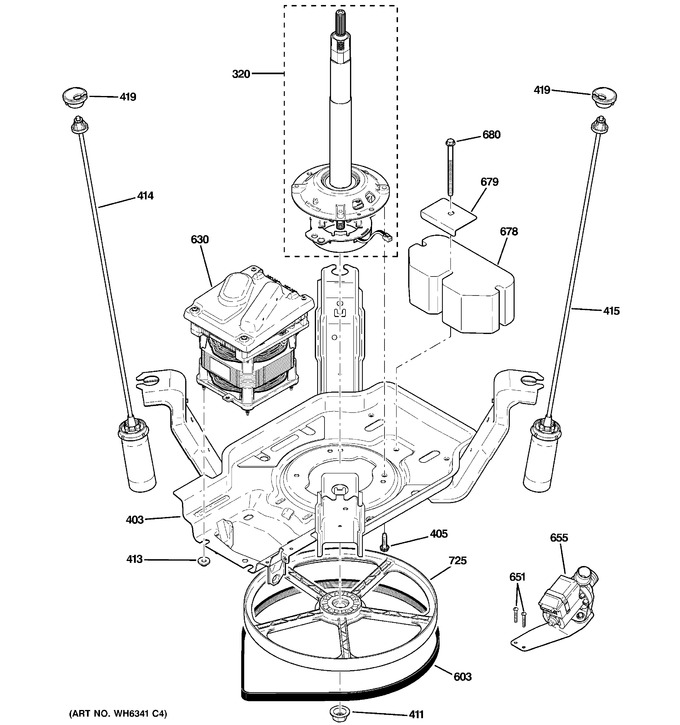

1 - Controls & Backsplash
2 - Cabinet, Cover & Front Panel
3 - Tub, Basket & Agitator
4 - Suspension, Pump & Drive Components
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 320 | WG04A00196 | Shaft And Tube Asm (Replaces: WH38X10017) |
|
Immediately | $ 377.71 | ||||
| 403 | WG04F03603 | Leg And Platform Asm (Replaces: WH17X10016) |
|
$ 288.00 | |||||
| 405 | WH2X1201 | Scr 1/4-20 B Hxw 3/4 Sns |
|
- | |||||
| 411 | WG04F03630 | Nut Pulley (Replaces: WH2X1203) |
|
$ 3.57 | |||||
| 413 | WH02X10233 | Hex Nut Overmold Asm |
|
- | |||||
| 414 | WG04F01777 | Rod & Spring Asm (Replaces: WH16X544) |
|
Immediately | $ 97.92 | ||||
| 415 | WG04F02338 | Rod & Spring Asm (Replaces: WH16X10057) |
|
Immediately | $ 60.08 | ||||
| 419 | WG04F04831 | Socket Rod Support (Replaces: WH01X10001) |
|
$ 11.44 | |||||
| 603 | WG04A00025 | Belt (Replaces: WH01X10353) |
|
Immediately | $ 51.12 | ||||
| 630 | WG04F05512 | Motor And Inverter Asm (Replaces: WH20X10057) |
|
Immediately | $ 588.43 | ||||
| 651 | WH02X10123 | Scr 1/4-20 Tpt 1h 1/2 Sn |
|
- | |||||
| 655 | WG04A03417 | Pump (Replaces: WH23X10013) |
|
Immediately | $ 169.40 | ||||
| 678 | WH01X10303 | Counterweight |
|
- | |||||
| 679 | WH01X10304 | Bracket Counterweight |
|
- | |||||
| 680 | WH02X10235 | Scr 1/4-20 B Hxw 3.9 Sns |
|
- | |||||
| 725 | WG04F03541 | Pulley Driven (Replaces: WH07X10019) |
|
$ 115.18 | |||||
| WG04F01772 | Interrupteur Du Couvercle Asm |
|
Immediately | $ 56.10 | |||||
| WG04F04241 | Arbre Et Tube Asm. |
|
Immediately | $ 404.24 | |||||
| WG04F04277 | Ensemble De Minuterie |
|
$ 107.24 | ||||||
| WG04F05512 | Moteur Et Inverseur Asm. |
|
Immediately | $ 588.43 |
