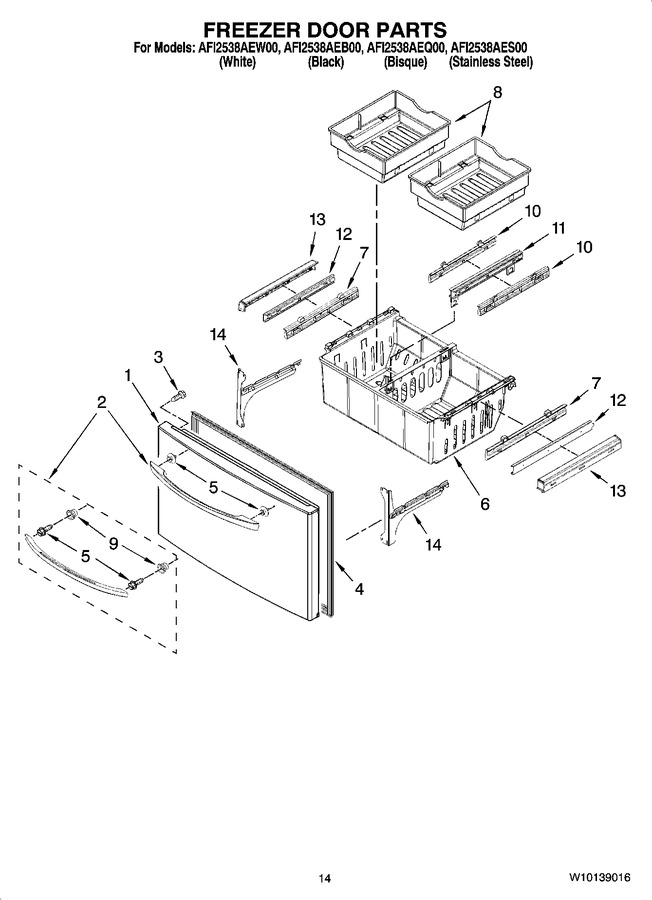

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67007104		Freezer Door (white)		Appelez-nous	-
1	67007079		Freezer Door (black)		Appelez-nous	-
1	12977801QQ		Freezer Door (bisque)   (Replaces: 67007099)		Appelez-nous	-
1	67006144		Freezer Door (stainless Steel)		Appelez-nous	-
2	67006457		Handle (white)		Appelez-nous	-
2	67007080		Handle (black)		Appelez-nous	-
2	67007102		Handle (bisque)		Appelez-nous	-
2	67007070		Handle (stainless Steel)		Appelez-nous	-
3	12991101		Screw   (Replaces: 67006408)				$ 13.47
4	WPW10436253		Gasket, Door (black)   (Replaces: 67006361)				$ 360.89
4	WPW10443321		Gasket, Door (white)   (Replaces: 67006362)				$ 359.84
5	WP3387230		Screw, Handle (stainless Model)   (Replaces: 67002935)			Immediately	$ 8.54
5	WP12992902		Screw, Handle (white, Black And Bisque Models)   (Replaces: 67006282)				$ 11.91
6	67006366		Bin, Lower				$ 69.67
7	W10166742		Adapter, Bin (outer)   (Replaces: 67006370)				$ 98.12
8	WP12924903		Bin, Upper   (Replaces: 67006374)				$ 132.30
9	WP67006113		Stud, Handle (stainless Model)   (Replaces: 67006113)			Immediately	$ 12.56
10	12925404SP		Adapter, Bin (inner)   (Replaces: 67006371)				$ 45.32
11	WPW10235357		Bracket/glide Assembly   (Replaces: 67006372)			Immediately	$ 330.98
12	WPW10235367		Glide, Upper   (Replaces: 67006369)				$ 313.43
13	W10826788		Retainer, Glide (left)   (Replaces: 67006367)				$ 57.50
13	WP67006368		Retainer, Glide (right)   (Replaces: 67006368)				$ 192.90
14	67004013		Bracket, Door Slide (right)		Appelez-nous	-
14	67004012		Bracket, Door Slide (left)		Appelez-nous	-
