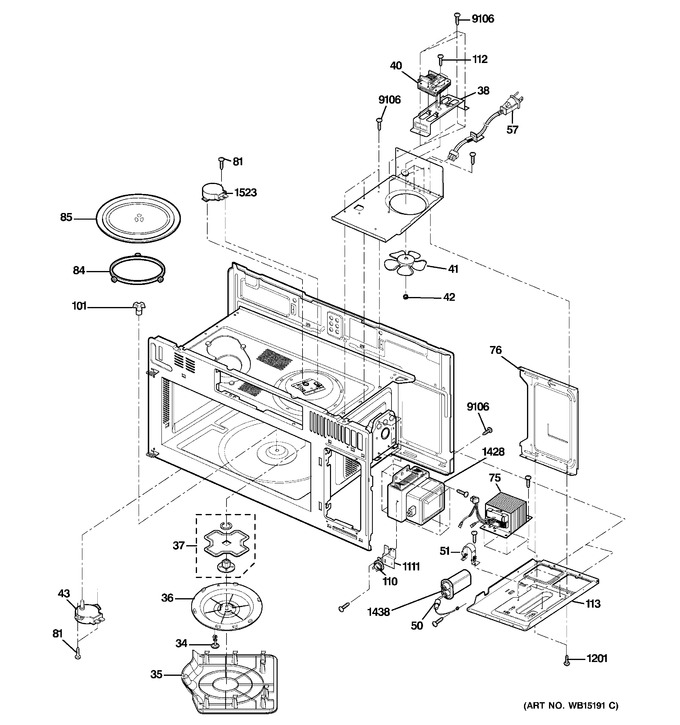

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
34	WB01X10055		Rivet Asm		Appelez-nous	-
35	WB06X10880		Cover, Stirrer Fan Asm		Appelez-nous	-
36	WB06X10879		Cover, Stirrer Fan		Appelez-nous	-
37	WB06X10876		Stirrer, Fan Asm		Appelez-nous	-
38	WB06X10878		Bracket, Motor		Appelez-nous	-
40	WB20X10057		Motor,ac Fan		Appelez-nous	-
41	WB38X10101		Fan		Appelez-nous	-
42	WB01X10375		Nut,customized		Appelez-nous	-
43	WB26X10226		Motor, Ac Synchronous				$ 45.18
50	WB18X10449		Cable, Diode		Appelez-nous	-
51	WB06X10561		Bracket,capacitor		Appelez-nous	-
57	WB18X10489		Power Cord Asm		Appelez-nous	-
75	WB20X10058		Transformer, Hv		Appelez-nous	-
76	WB02X11362		Guide,air		Appelez-nous	-
81	WB02X10728		Screw Tapping		Appelez-nous	-
84	WB06X10875		Turntable Asm		Appelez-nous	-
85	WB49X10233		Tray, Glass		Appelez-nous	-
101	WB06X10873		Shaft,turntable		Appelez-nous	-
110	WB27X11100		Thermostat		Appelez-nous	-
112	WB02X10720		Screw Tapping		Appelez-nous	-
113	WB02X11531		Base Plate, Trans		Appelez-nous	-
1111	WB06X10570		Bracket,misc		Appelez-nous	-
1201	WB02X10777		Screw Taptite		Appelez-nous	-
1428	WB27X11155		Magnetron		Appelez-nous	-
1438	WB27X11096		Capacitor H.v		Appelez-nous	-
1523	WB26X10057		Motor,synchronous		Appelez-nous	-
9106	WB1X1515		Screw Tapping		Appelez-nous	-
