1 - Control Panel & Coin Box Assembly


2 - Front Panel & Door


3 - Cabinet


4 - Drum


5 - Blower & Motor Assembly

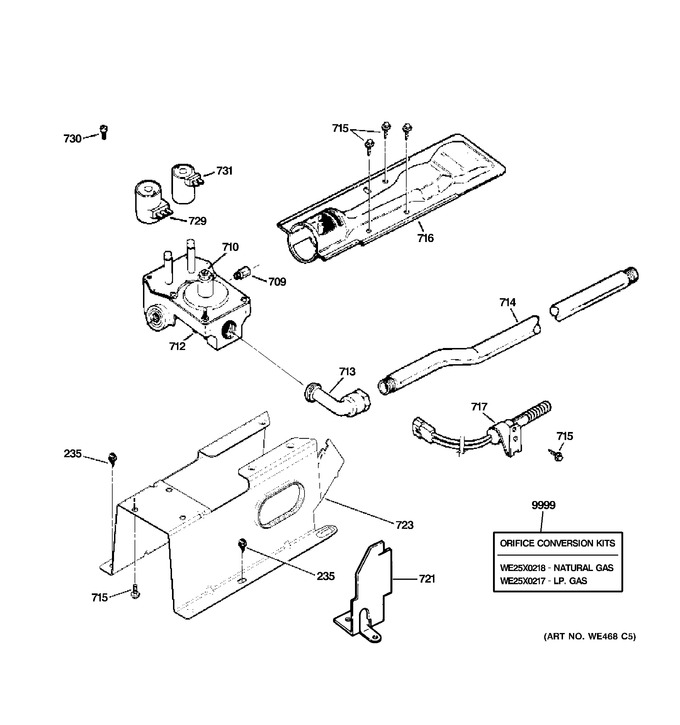

6 - Gas Valve & Burner Assembly


7 - Timer Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
235	WE2M307		Scr 10-16 X 1/2 Ab		Appelez-nous	-
709	WE1X1148		Orifice		Appelez-nous	-
710	WE01X1076á		Leak Limiterá		Appelez-nous	-
712	WW02F00099		Gas Valve Asm   (Replaces: WE14X215)			Immediately	$ 154.50
713	WW02F00099		Valve Asm. Shutoff   (Replaces: WE14X215)			Immediately	$ 154.50
714	WE1M512		Pipe & Lug Asm.		Appelez-nous	-
715	WD2M101		Screw		Appelez-nous	-
716	WE14M104		Burner Gas				$ 255.39
717	WW01F01432		Gas Igniter Asm   (Replaces: WE4M449)			Immediately	$ 135.99
721	WE13X118		Bracket Spacer		Appelez-nous	-
723	WE13M52		Bracket Gas Valve		Appelez-nous	-
729	WE04X0692á		Coil Dualá		Appelez-nous	-
730	WE02X0333á		Screw (coil Mtg Brkt)á		Appelez-nous	-
731	WE04X0693á		Coil Mainá		Appelez-nous	-
