SELECT A DIAGRAM

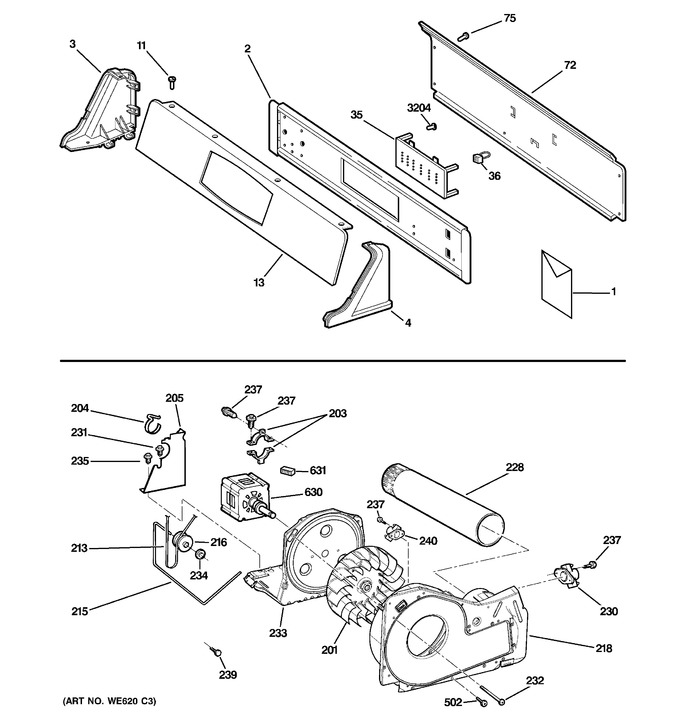

1 - Backsplash, Blower & Motor Assembly
2 - Front Panel & Door
3 - Cabinet
4 - Drum
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 49-90269 | Use & Care |
|
- | |||||
| 1 | 31-16193 | Mini-manual Wiring |
|
- | |||||
| 1 | 31-16224 | Installation Instruction |
|
- | |||||
| 2 | WE2M215 | Screw Switch Plate, 8-18 |
|
- | |||||
| 2 | WH46X10055 | Support Switch |
|
- | |||||
| 3 | WE19M1451 | End Cap Lh Bk |
|
- | |||||
| 4 | WE19M1452 | End Cap Rh Bk |
|
- | |||||
| 11 | WH02X10089 | Scr 8-18 Ab Flt 9/16 Sn |
|
- | |||||
| 13 | WE19M1562 | Switch Trim Asm. Chr & B |
|
- | |||||
| 35 | WE4M296 | L3 Electronic Module |
|
- | |||||
| 36 | WD21X10070 | Harness |
|
- | |||||
| 72 | WE20M343 | Rear Panel |
|
- | |||||
| 75 | WE2M308 | Scr 8-15 X 7/16 Ab |
|
- | |||||
| 75 | WE2M173 | Screw |
|
- | |||||
| 201 | WE16M17 | Blower Wheel W/insert |
|
- | |||||
| 203 | WE13X200 | Strap Motor |
|
- | |||||
| 204 | WE1X921 | Strap Motor |
|
- | |||||
| 205 | WE2M200 | Screw Ground |
|
- | |||||
| 205 | WE13M39 | Motor Support |
|
- | |||||
| 213 | WW02F00854 | Belt Drive (Replaces: WE12M33) |
|
Immediately | $ 26.44 | ||||
| 215 | WW02A00060 | Idler Arm Spring (Replaces: WE3M25) |
|
$ 11.34 | |||||
| 216 | WW02F00871 | Idler Pulley (Replaces: WE12M8) |
|
Immediately | $ 5.36 | ||||
| 218 | WE14M200 | Blower Housing Asm |
|
- | |||||
| 228 | WW02L00148 | Exaust Pipe (Replaces: WE14M90) |
|
$ 14.02 | |||||
| 230 | WG04F01127 | T'stat Bias Drum Out (Replaces: WE4M216) |
|
Immediately | $ 14.92 | ||||
| 231 | WE2M187 | Screw |
|
- | |||||
| 232 | WW02A00032 | Screw (Replaces: WE2M202) |
|
$ 3.57 | |||||
| 233 | WE13M51 | Plate Motor |
|
- | |||||
| 234 | WG04A00124 | Cap Nut (Replaces: WE2M96) |
|
$ 9.11 | |||||
| 235 | WE2M307 | Scr 10-16 X 1/2 Ab |
|
- | |||||
| 237 | WE2M154 | Screw |
|
- | |||||
| 239 | WE2M167 | Screw |
|
- | |||||
| 240 | WE4M299 | Thermistor , Outlet Cntr |
|
- | |||||
| 502 | WW02A00031 | Screw #10 (Replaces: WE2M174) |
|
Immediately | $ 3.57 | ||||
| 630 | WE17M37 | Motor Thrd Shaft & Pully |
|
- | |||||
| 631 | WE1M650 | Connector Motor |
|
$ 13.19 | |||||
| 3204 | WH2M270 | Screw |
|
- |
