View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

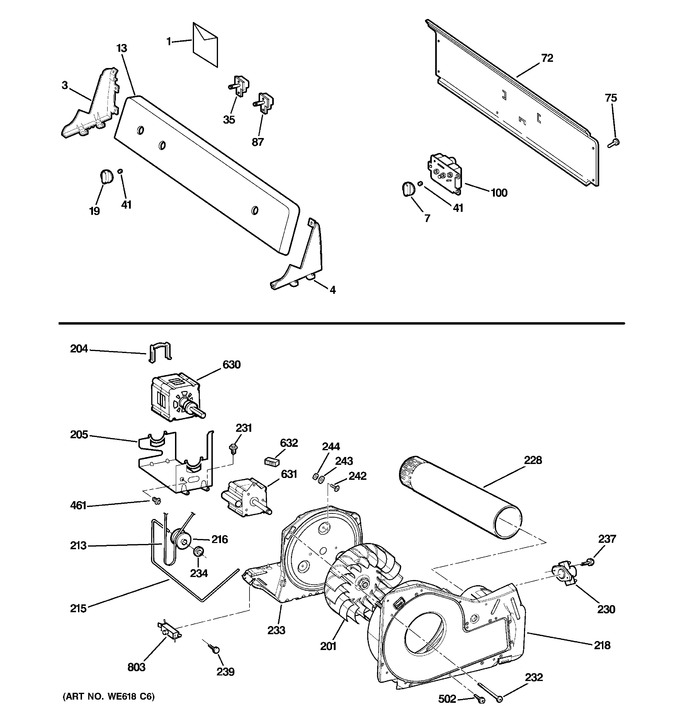

1 - Backsplash, Blower & Motor Assembly
2 - Front Panel Door
3 - Cabinet
4 - Drum
5 - Gas Valve & Burner Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-16227 | Installation Instruction |
|
- | |||||
| 1 | 31-16254 | Mini-manual |
|
- | |||||
| 1 | 49-90407 | Use & Care ( Ge ) |
|
- | |||||
| 3 | WE19M1474 | End Cap Asm |
|
- | |||||
| 4 | WE19M1473 | End Cap Asm |
|
- | |||||
| 7 | WW02L00247 | Knob Asm Timer - Wh (Replaces: WE1M856) |
|
Immediately | $ 10.54 | ||||
| 13 | WE19M1675 | Backsplash Graphics Asm |
|
- | |||||
| 19 | WW02F00278 | Knob And Clip Asm (Replaces: WH01X10460) |
|
Immediately | $ 15.85 | ||||
| 35 | WE4M412 | Rotary Start Switch Long |
|
- | |||||
| 41 | WE1X980 | U Clip |
|
- | |||||
| 72 | WE19M1725 | Panel Back |
|
- | |||||
| 75 | WE2M173 | Screw |
|
- | |||||
| 75 | WE2M308 | Scr 8-15 X 7/16 Ab |
|
- | |||||
| 87 | WE4M520 | Rotary Switch 4temp |
|
- | |||||
| 100 | WE4M506 | Timer |
|
- | |||||
| 201 | WE16M17 | Blower Wheel W/insert |
|
- | |||||
| 204 | WE1M555 | Motor Clip |
|
- | |||||
| 205 | WE13M38 | Motor Plate |
|
- | |||||
| 213 | WW02F00854 | Belt Drive (Replaces: WE12M29) |
|
Immediately | $ 26.44 | ||||
| 215 | WE3M24 | Idler Arm |
|
- | |||||
| 216 | WW02F00871 | Idler Pulley (Replaces: WE12M8) |
|
Immediately | $ 5.36 | ||||
| 218 | WE1M473 | Gasket Seal, Hsng Exh |
|
- | |||||
| 218 | WE14M199 | Blower Housing Asm |
|
- | |||||
| 228 | WW02L00148 | Exaust Pipe (Replaces: WE14M90) |
|
$ 14.02 | |||||
| 230 | WG04F01127 | T'stat Outlet Ctrl (Replaces: WE4M317) |
|
Immediately | $ 14.92 | ||||
| 231 | WE2M187 | Screw |
|
- | |||||
| 232 | WW02A00032 | Screw (Replaces: WE2M202) |
|
$ 3.57 | |||||
| 233 | WE13M54 | Plate Motor |
|
- | |||||
| 234 | WG04A00124 | Cap Nut (Replaces: WE2M96) |
|
$ 9.11 | |||||
| 237 | WE2M154 | Screw |
|
- | |||||
| 239 | WE2M167 | Screw |
|
- | |||||
| 242 | WE2M229 | Screw |
|
- | |||||
| 243 | WH2M283 | Washer Steel |
|
- | |||||
| 244 | WE2M206 | Rubber Grommet |
|
- | |||||
| 461 | WZ05X0158 | Screw 8-32x3/8 Grd Scr |
|
- | |||||
| 502 | WW02A00031 | Screw #10 (Replaces: WE2M174) |
|
Immediately | $ 3.57 | ||||
| 630 | WE17M29 | Mtr/pulley Asm L.v. |
|
- | |||||
| 631 | WE17M46 | Motor & Cap. Kit W/wheel |
|
- | |||||
| 632 | WE1M650 | Connector Motor |
|
$ 13.19 | |||||
| 803 | WW02F00249 | Switch Interlock (Replaces: WD21X557) |
|
Immediately | $ 15.72 |
