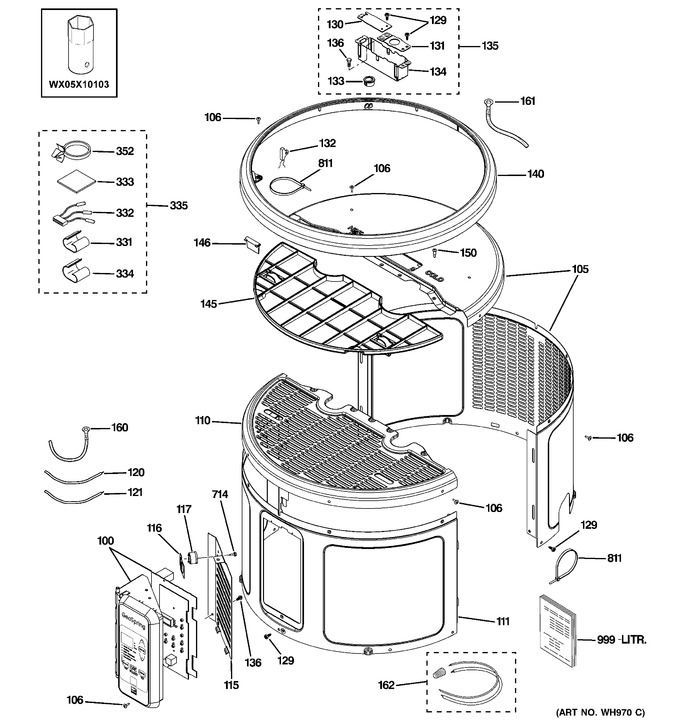

1 - Control Panel & Shroud
2 - Body Parts
3 - Unit Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 100 | WG04F05119 | Control Asm, Gray (Replaces: WS55X10023) |
|
- | |||||
| 100 | WS35X20581 | Control Asm (Replaces: WS55X10022) |
|
$ 842.69 | |||||
| 105 | WS31X10060 | Rear Shroud Asm Red |
|
- | |||||
| 105 | WS31X10064 | Rear Shroud Asm, Gray |
|
- | |||||
| 106 | WS02X10083 | Scr 8-18 B Pnt7/16 S Red |
|
- | |||||
| 110 | WS35X20522 | Cvr Shroud Front Asm Red (Replaces: WS31X10059) |
|
- | |||||
| 110 | WS35X20523 | Cvr Shroud Front, Gray (Replaces: WS31X10063) |
|
- | |||||
| 111 | WS31X10062 | Shroud Front Painted Red |
|
- | |||||
| 111 | WS35X20523 | Shroud Front Paint, Gray (Replaces: WS31X10065) |
|
- | |||||
| 115 | WS31X10057 | Enclosure |
|
- | |||||
| 116 | WS28X10075 | Brkt Overload |
|
- | |||||
| 117 | WS08X10017 | Overload Comp External |
|
- | |||||
| 120 | WS19X10033 | Wire (e-d) Yellow |
|
- | |||||
| 121 | WS19X10036 | Wire (e-e) Blue |
|
- | |||||
| 129 | WS02X10086 | Scr 10-32 Gx Pnt20 1/2 S |
|
- | |||||
| 130 | WS01X10048 | Cover Access J- Box |
|
- | |||||
| 131 | WS01X20383 | Cover Fixed J- Box (Replaces: WS01X10049) |
|
- | |||||
| 132 | WS17X10008 | Sensor T5 |
|
- | |||||
| 133 | WS02X10072 | Grommet Dc (j-box) |
|
- | |||||
| 134 | WS01X10047 | Cavity Junction Box |
|
- | |||||
| 135 | WS35X10073 | Box, Covers & Grommet |
|
- | |||||
| 136 | WS02X10087 | Scr 10-32 Gx Hxw 7/16 S |
|
- | |||||
| 140 | WS31X10061 | Trim Ring |
|
- | |||||
| 145 | WS31X10058 | Filter Air |
|
- | |||||
| 146 | WS01X10053 | Cover Air Filter Snap |
|
- | |||||
| 150 | WS02X10084 | Scr 8-18 B Pnt 3/4 S Red |
|
- | |||||
| 160 | WS19X10037 | Ground Wire To Enclosure |
|
- | |||||
| 161 | WS19X10038 | Ground Wire To J-box |
|
- | |||||
| 162 | WS19X10039 | Li - L2 Wire Repair Kit |
|
- | |||||
| 331 | WS02X10078 | Clip Sensor (t3a/t4) |
|
- | |||||
| 332 | WS17X10011 | Sensor Asm (t3a/t3b/t4) |
|
- | |||||
| 333 | WS03X10075 | Mastic Thermal Sensor |
|
- | |||||
| 334 | WS02X10079 | Clip Sensor (t3b) |
|
- | |||||
| 335 | WS17X10014 | Sensor Asm |
|
- | |||||
| 352 | WG04A01362 | Wire Tie (Replaces: WH01X10217) |
|
$ 5.72 | |||||
| 714 | WD02X10083 | Scr 8-18 B Hxw .480 S |
|
- | |||||
| 811 | WR02X11607 | Wire Tie |
|
- | |||||
| 999 | 31-75008 | Pm Mini Manual |
|
- | |||||
| 999 | 49-50281 | Pm Use And Care |
|
- |
