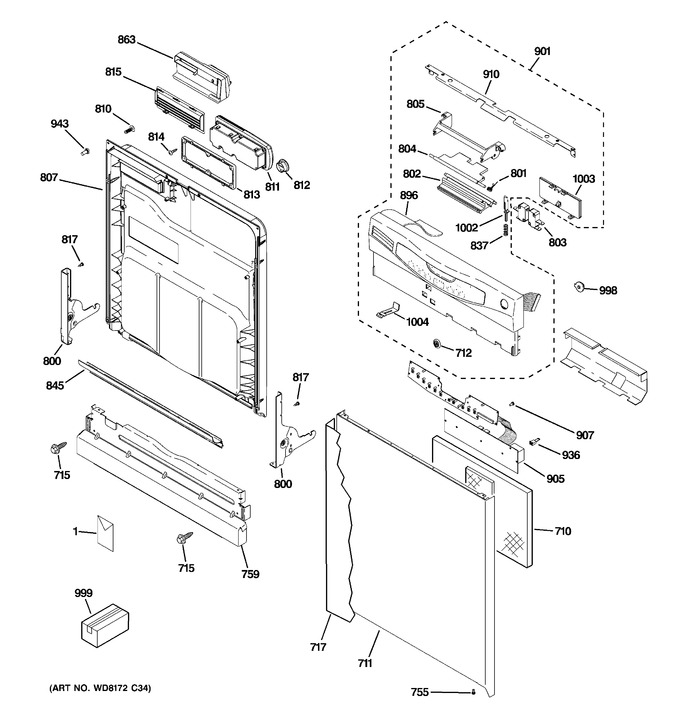

1 - Escutcheon & Door Assembly


2 - Body Parts


3 - Upper Rack Assembly


4 - Lower Rack Assembly


5 - Motor-pump Mechanism


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-30283		Pm Instruction Install		Appelez-nous	-
1	31-30634		Pm Mini Manual		Appelez-nous	-
1	49-55077		Pm Manual Use & Care		Appelez-nous	-
710	WD01X10344		Block Foam Door		Appelez-nous	-
710	WD01X10287		Insulation Panel		Appelez-nous	-
711	WD31X10123		Panel Front		Appelez-nous	-
712	WD34X11692		Badge		Appelez-nous	-
715	WR1X1554		Scr 8-18 Ab Ihxw 1/2 S		Appelez-nous	-
717	WD27X10275		Cover Front Decorative		Appelez-nous	-
755	WD2X430		Screw 8-18 5/16 Ph		Appelez-nous	-
759	WG04A01327		Toekick Asm   (Replaces: WD27X10219)				$ 365.37
800	WG04L01731		Hinge Arm Asm Lh   (Replaces: WD14X10024)				$ 254.43
800	WG04L01732		Hinge Arm Asm Rh   (Replaces: WD14X10025)				$ 24.78
801	WG03A00047		Spring Recess Door   (Replaces: WR02X10585)			Immediately	$ 3.97
802	WD13X10007		Handle Latch		Appelez-nous	-
803	WG02F02968		Switch Interlock   (Replaces: WD21X10224)			Immediately	$ 16.52
804	WG04F00006		Actuator Handle   (Replaces: WD13X10045)			Immediately	$ 85.41
805	WG04L00456		Retainer Handle   (Replaces: WD13X10009)				$ 77.35
807	WG04L01618		Door Inner Punched   (Replaces: WD31X10083)				$ 69.95
810	WG04A00158		Scr 8-18 Ab Tr 7/8s   (Replaces: WD02X10106)				$ 3.97
811	WG04F00692		Module Rinse And Cap Asm   (Replaces: WD12X10205)			Immediately	$ 171.12
812	WG04L00091		Cap Rinse Asm   (Replaces: WD12X10206)				$ 34.94
813	WD12X10146		Backup Flange D Cup		Appelez-nous	-
814	WD02X10104		Scr 8-10 Pl Trp 1/2 S		Appelez-nous	-
815	WG04L01939		Vent   (Replaces: WD12X10192)				$ 30.98
837	WG04A01303		Spring Plunger   (Replaces: WD03X10026)				$ 19.06
845	WG04L01889		Seal Short Bottom Door   (Replaces: WD08X10059)			Immediately	$ 156.86
863	WG04L01510		Air Diverter Asm   (Replaces: WD12X10288)				$ 209.17
896	WD12X10203		Shield Main Board		Appelez-nous	-
901	WD34X11780		Escutcheon Asm		Appelez-nous	-
905	WG04A01076		Board Main Dl-2   (Replaces: WD21X10470)				$ 268.19
907	WD02X10129		Scr 8-18 Ab Hw 1/2 S		Appelez-nous	-
910	WD34X11691		Brace Escutcheon		Appelez-nous	-
936	WD21X10403		Model Selector Plug Asm		Appelez-nous	-
943	WZ05X0219		Screw		Appelez-nous	-
998	WD01X10563		Lens Asm Kit Ss		Appelez-nous	-
999	WD35X10061		Kit-panel Support Clip		Appelez-nous	-
1002	WG04F06764		Plunger Sw Interlock   (Replaces: WD12X10321)				$ 46.42
1003	WD12X10401		Cover Interlock		Appelez-nous	-
