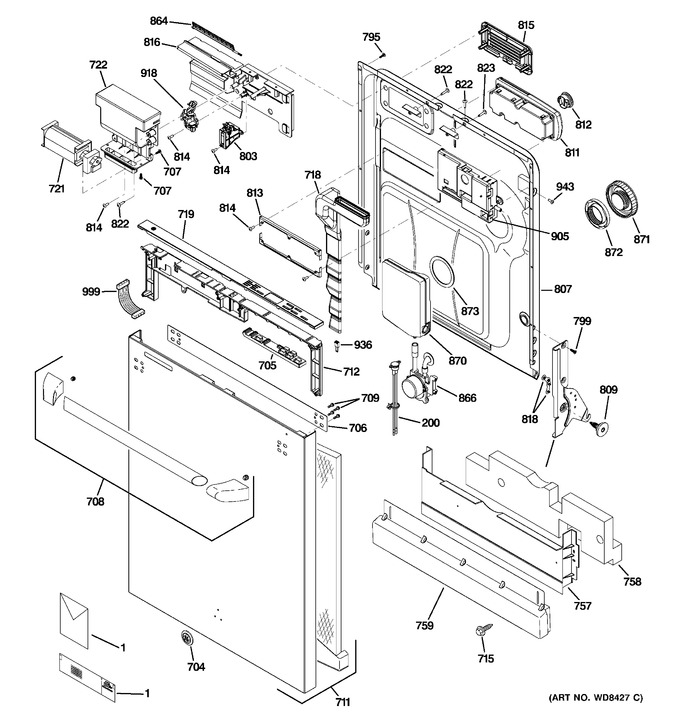

1 - Escutcheon & Door Assembly


2 - Body Parts


3 - Upper Rack Assembly


4 - Lower Rack Assembly


5 - Motor-pump Mechanism


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-30284		Pm Install Instructions		Appelez-nous	-
1	31-30637		Pm Sheet Mini Manual		Appelez-nous	-
1	49-55078		Pm Manual Use & Care		Appelez-nous	-
200	WG04A01172		Tco Assembly   (Replaces: WD01X10537)				$ 92.17
704	WS01A00013		Badge   (Replaces: WD34X11435)				$ 30.04
705	WD01X10539		Button Asm Silicone		Appelez-nous	-
706	WD01X10549		Handle Bracket		Appelez-nous	-
707	WB01T10063		Screw 1/4-tpi Fl Hx 9/10		Appelez-nous	-
708	WD13X10057		Handle Asm		Appelez-nous	-
709	WD02X10094		Scr 10-18 X 5/8		Appelez-nous	-
711	WD34X11786		Panel Asm Outer		Appelez-nous	-
712	WG04F05065		Console & Cover Asm   (Replaces: WD27X10375)				$ 159.48
715	WH02X10126		Scr 8-18 B 1hw 1/2 Sn		Appelez-nous	-
718	WD12X10190		Conduit Exhaust Asm		Appelez-nous	-
719	WD27X10353		Console Cover Asm		Appelez-nous	-
721	WG04F03674		Blower Dishwasher   (Replaces: WD26X10056)				$ 183.41
722	WG04F04688		Inlet Transition Piece   (Replaces: WD12X10351)				$ 57.27
757	WD27X10250		Kit Toekick Asm		Appelez-nous	-
758	WD01X10421		Foam Brace		Appelez-nous	-
759	WD27X10324		Toekick Asm		Appelez-nous	-
795	WG04A00378		Screw   (Replaces: WD2X444)				$ 3.97
799	WD02X10149		Scr 10-32 Gxtt Flp.595 S		Appelez-nous	-
803	WG02F02962		Latch Asm   (Replaces: WD13X10031)				$ 82.11
807	WG04L01615		Door Inner & Gasket   (Replaces: WD31X10131)				$ 177.42
809	WG04A01243		Scr 10-32gx Flt25 .615 S   (Replaces: WD02X10084)				$ 3.97
811	WG04F00692		Module Rinse And Cap Asm   (Replaces: WD12X10163)			Immediately	$ 171.12
812	WG04L00093		Cap Rinse Asm   (Replaces: WD12X10122)				$ 39.70
813	WG04A00035		Bracket Detergent Disp   (Replaces: WD01X10207)				$ 6.35
814	WD02X10104		Scr 8-10 Pl Trp 1/2 S		Appelez-nous	-
815	WG04L01582		Cover Vent   (Replaces: WD12X10127)				$ 30.18
816	WD01X10548		Vent Asm		Appelez-nous	-
818	WG04L01539		Bearing Hinge Arm   (Replaces: WD12X10313)				$ 10.54
822	WG04A00158		Scr 8-18 Ab Tr 7/8s   (Replaces: WD02X10106)				$ 3.97
823	WR01X10652		Scr 8-18 Ab Ihw 5/8 S		Appelez-nous	-
864	WD12X10067		Flapper Vent		Appelez-nous	-
866	WG04L01599		Dispensing Det Asm   (Replaces: WD12X10384)				$ 253.30
870	WG04L01542		Bottle Detergent Asm   (Replaces: WD35X10361)				$ 151.24
871	WD12X10282		Cap Asm				$ 165.35
872	WD12X10212		Lock Nut Asm		Appelez-nous	-
873	WG04L01694		Gasket Fill Hole   (Replaces: WD08X10060)				$ 15.88
905	WG04A02628		Module Control Asm   (Replaces: WD21X10439)				$ 280.17
918	WG04F01276		Vent Driver Asm   (Replaces: WD21X10172)				$ 69.95
936	WD21X10484		Model Selector Plug Asm		Appelez-nous	-
943	WZ05X0219		Screw		Appelez-nous	-
999	WD01X10557		Harness Hmi Asm		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
