SELECT A DIAGRAM
1 - Escutcheon & Door Assembly
2 - Body Parts
3 - Upper Rack Assembly
4 - Lower Rack Assembly

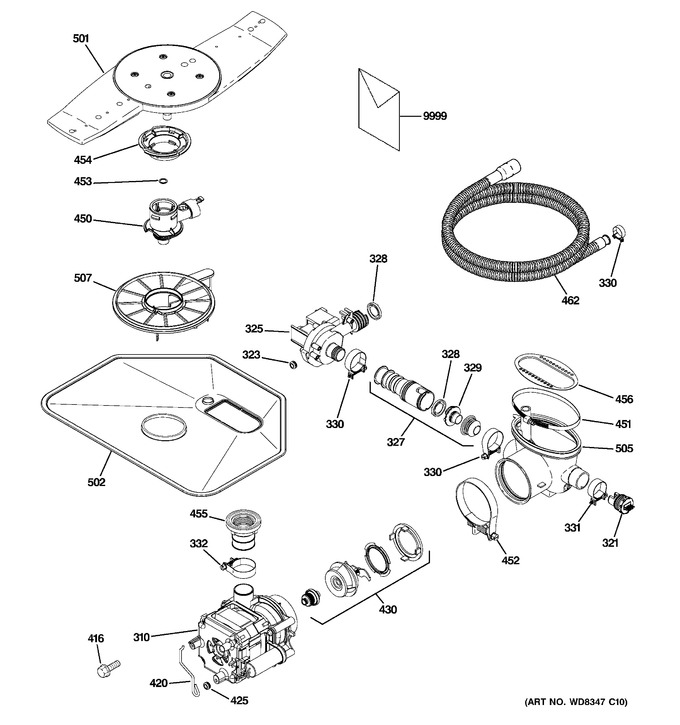

5 - Motor-pump Mechanism
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 310 | WG04F04741 | Mechanism Asm (Replaces: WD26X10038) |
|
Immediately | $ 254.33 | ||||
| 321 | WD21X10272 | Sensor Turbidity |
|
- | |||||
| 323 | WD01X10269 | Grommet |
|
- | |||||
| 325 | WG02F03017 | Pump Drain Asm (Replaces: WD26X10048) |
|
Immediately | $ 184.57 | ||||
| 327 | WD12X10279 | Adaptor Pump Asm |
|
- | |||||
| 328 | WD01X10406 | Valve Flapper Dual Pump |
|
- | |||||
| 329 | WD01X10405 | Seat Check Valve |
|
- | |||||
| 330 | WG04A00072 | Clamp (Replaces: WD01X10103) |
|
$ 8.58 | |||||
| 331 | WG04A00073 | Clamp (Replaces: WD01X10104) |
|
Immediately | $ 11.44 | ||||
| 332 | WD01X10105 | Clamp |
|
- | |||||
| 416 | WD02X10141 | Scr 10-32 Tt Hex .575s |
|
- | |||||
| 420 | WD01X10211 | Hanger Motor |
|
- | |||||
| 425 | WD01X10101 | Grommet |
|
- | |||||
| 430 | WG02A00446 | Kit - Impeller Asm (Replaces: WD19X10038) |
|
$ 106.26 | |||||
| 450 | WD18X10050 | Hub Venturi Asm |
|
- | |||||
| 450 | WD18X10009 | Hub Venturi Asm |
|
- | |||||
| 451 | WG04A01069 | Clamp Sump (Replaces: WD01X10210) |
|
$ 17.15 | |||||
| 452 | WG04A00077 | Clamp Hose (Replaces: WD1X1392) |
|
$ 14.29 | |||||
| 453 | WG04A01023 | Bearing Spray Arm Low (Replaces: WD01X10107) |
|
$ 3.57 | |||||
| 454 | WG04A01182 | Nut Hub Fine Filter (Replaces: WD12X10061) |
|
Immediately | $ 51.53 | ||||
| 455 | WG04F00179 | Connector Pump Asm (Replaces: WD18X10010) |
|
Immediately | $ 47.23 | ||||
| 456 | WG04L01844 | Plate Sump (Replaces: WD01X10219) |
|
$ 240.81 | |||||
| 462 | WG04F00333 | Drain Tube Asm (Replaces: WD24X10035) |
|
Immediately | $ 83.66 | ||||
| 501 | WD22X10063 | Arm Spray Low Asm |
|
- | |||||
| 502 | WD22X10076 | Coarse Filter Asm |
|
- | |||||
| 502 | WD22X10038 | Filter Coarse |
|
- | |||||
| 505 | WG01L00289 | Sump Inlet (Replaces: WD18X10026) |
|
Immediately | $ 75.33 | ||||
| 507 | WG04F04636 | Filter Fine Asm (Replaces: WD12X10109) |
|
Immediately | $ 98.11 | ||||
| 9999 | WG04A01014 | Bag And Bracket Asm (Replaces: WD35X10372) |
|
$ 22.87 | |||||
| WG04A01326 | Toekick Asm |
|
$ 155.48 | ||||||
| WG04A02628 | Module Control Asm Kit |
|
$ 252.15 | ||||||
| WG04F00096 | C├#ble Asm |
|
Immediately | $ 14.29 | |||||
| WG04F00692 | Module Rinse And Cap Asm |
|
Immediately | $ 154.01 | |||||
| WG04F01063 | Switch Flood Asm |
|
$ 77.98 | ||||||
| WG04F04554 | Conduit Main |
|
$ 85.89 | ||||||
| WG04F04741 | Mecanique Asm. |
|
Immediately | $ 254.33 | |||||
| WG04F05064 | Console Et Couvercle Asm. |
|
$ 163.76 | ||||||
| WG04F05089 | Console, Couvercle |
|
$ 149.34 | ||||||
| WG04L00215 | Gasket Tub |
|
Immediately | $ 95.63 | |||||
| WG04A01129 | Inner Rail + Clips Uppr Rack |
|
$ 84.41 | ||||||
| WG04L01313 | Ressort De La Porte |
|
$ 147.99 | ||||||
| WG04L01512 | Charniere G. Asm. |
|
$ 217.35 | ||||||
| WG04L01513 | Charniere D. Asm. |
|
$ 65.10 | ||||||
| WG04L01520 | Arm Spray Upper Asm |
|
$ 53.80 | ||||||
| WG04L01599 | Dispensing Det Asm |
|
$ 253.30 | ||||||
| WG04L01615 | Door Inner & Gasket |
|
$ 177.42 | ||||||
| WG04L01858 | Panier Fixe Asm Sup |
|
$ 188.79 | ||||||
| WG04L03138 | Button Asm Silicone |
|
Immediately | $ 145.93 | |||||
| WG04L03248 | Roulette, Panier Inf. |
|
- | ||||||
| WG04L00677 | Link Hinge Arm |
|
Immediately | $ 5.72 | |||||
| WG04A01025 | Bearing Spray Arm Up |
|
$ 3.57 | ||||||
| WG04A00015 | Arm Spray Low Asm |
|
$ 101.18 | ||||||
| WG03F00838 | Valve Water Inlet |
|
Immediately | $ 58.71 | |||||
| WG02F03017 | Pump Cntr Wgt Asm W/hngr |
|
Immediately | $ 184.57 | |||||
| WG04A01261 | Screw 8-32 B Hxw 1.13 Ss |
|
$ 14.29 | ||||||
| WG04A01289 | Spray Arm Mid Asm, Monogram |
|
$ 57.24 |
