1 - Backsplash, Blower & Motor Assembly

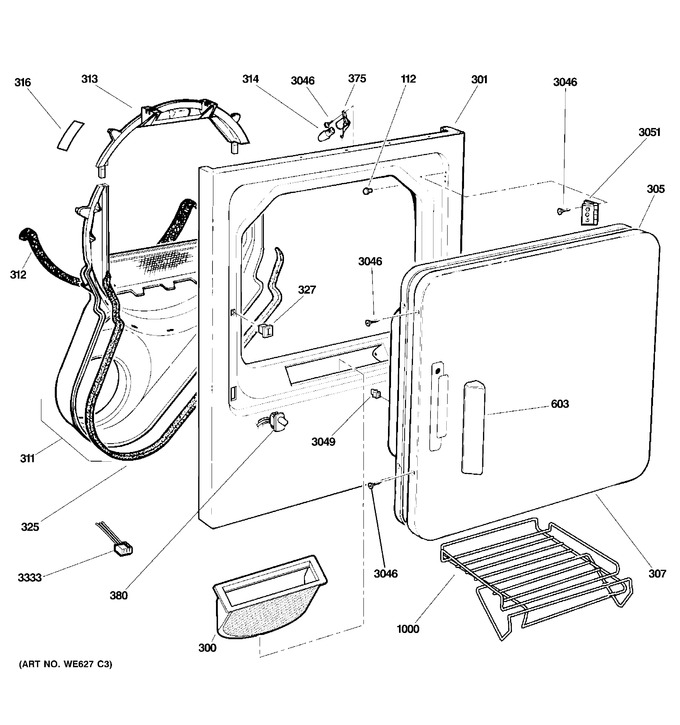

2 - Front Panel & Door
3 - Water System
4 - Cabinet & Top Panel
5 - Shields & Water Parts
6 - Drum
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 112 | WR01A00517 | Plug Door Rvsbl Wh (Replaces: WR2X8693) |
|
$ 4.37 | |||||
| 300 | WG04F00416 | Filter (Replaces: WE18M53) |
|
Immediately | $ 40.73 | ||||
| 301 | WE20M405 | Front Panel "white" |
|
- | |||||
| 301 | WE1M869 | Ft Heat Deflection Plate |
|
- | |||||
| 305 | WG04L00267 | Inner Door & Gasket Asm. (Replaces: WE10M109) |
|
$ 122.60 | |||||
| 307 | WW01L01133 | Door Panel (Replaces: WE10M102) |
|
$ 149.43 | |||||
| 311 | WW02F00088 | Sensor Rods (Replaces: WE1M575) |
|
Immediately | $ 9.65 | ||||
| 311 | WE9M41 | Gasket-trap Duct |
|
- | |||||
| 311 | WE14M174 | Air Duct Asm |
|
- | |||||
| 312 | WE9M30 | Felt |
|
- | |||||
| 313 | WW02L00517 | Top Bearing (Replaces: WE3M26) |
|
Immediately | $ 87.83 | ||||
| 314 | WW03F00458 | Lamp (Replaces: WE4M305) |
|
Immediately | $ 13.37 | ||||
| 316 | WE1M504 | Slide White |
|
Immediately | $ 40.66 | ||||
| 316 | WW02A00129 | Slide Green (Replaces: WE1M507) |
|
Immediately | $ 15.72 | ||||
| 325 | WE1M825 | Gasket (seal) 39 Inch |
|
- | |||||
| 327 | WE1M536 | Latch |
|
- | |||||
| 375 | WE5M48 | Socket Asm |
|
- | |||||
| 380 | WE4M415 | Door Switch |
|
- | |||||
| 603 | WE1M1026 | Handle Door |
|
- | |||||
| 1000 | WE1M396 | Drying Rack |
|
- | |||||
| 3046 | WW02A00097 | Screw #8 (Replaces: WE2M196) |
|
$ 3.57 | |||||
| 3049 | WW02A00004 | Strike Door (Replaces: WE1X1192) |
|
Immediately | $ 3.57 | ||||
| 3051 | WW02L00028 | Hinge (Replaces: WE1M505) |
|
Immediately | $ 8.93 | ||||
| 3333 | WE5M39 | Harness Sensor |
|
- |
