View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

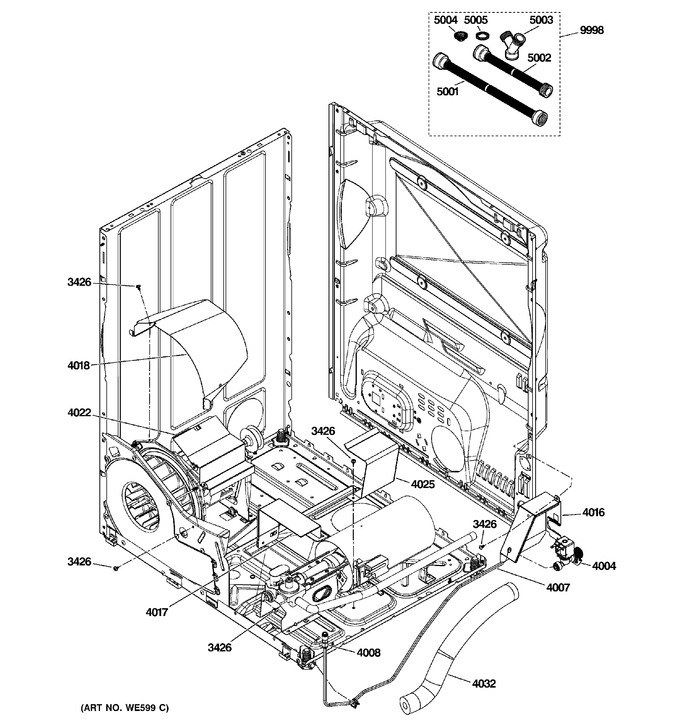

1 - Backsplash, Blower & Motor Assembly
2 - Front Panel & Door
3 - Water System
4 - Cabinet & Top Panel
5 - Shields & Water System
6 - Drum
7 - Gas Valve & Burner Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3426 | WE2M223 | Screw |
|
- | |||||
| 4017 | WE1M977 | Shield Gas Valve |
|
- | |||||
| 4022 | WE1M976 | Shield Thermostat |
|
- | |||||
| 4025 | WE1M978 | Shield Flame Detector |
|
- | |||||
| 5001 | WE1M847 | Inlet Hose (long) |
|
- | |||||
| 5002 | WE1M848 | Short Inlet Hose |
|
- | |||||
| 5003 | WE1M849 | Y Adaptor |
|
- | |||||
| 5004 | WE1M850 | Screen-washer Hose |
|
- | |||||
| 5005 | WE1M851 | Washer Hose |
|
- | |||||
| 9998 | WE25M76 | Water Valve Shield Kit |
|
- | |||||
| 9998 | WE25M53 | Hose Inlet Asm - Kit |
|
- | |||||
| 9998 | WE25M72 | Water Valve Asm Kit |
|
- | |||||
| 9998 | WE25M75 | Hose Back Asm Kit |
|
- |
