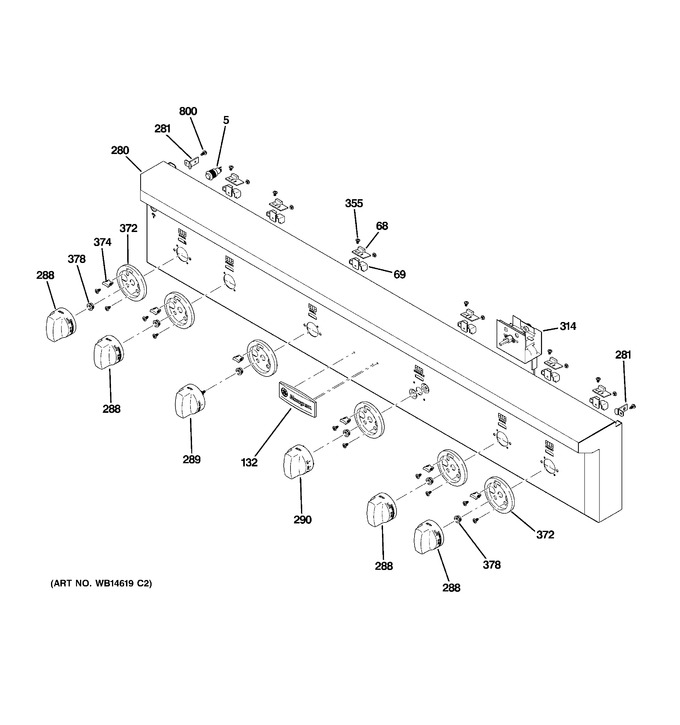

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | WS01F01623 | Switch Led (Replaces: WB21K10139) |
|
$ 84.52 | |||||
| 68 | WB25K10014 | Led Board |
|
- | |||||
| 69 | WB02K10214 | Bracket Led |
|
- | |||||
| 132 | WS01A00367 | Monogram Badge (Replaces: WB02K10295) |
|
$ 12.40 | |||||
| 280 | WB36K10973 | Control Panel & Rail Asm |
|
- | |||||
| 281 | WB02K10211 | Bracket Control Panel |
|
- | |||||
| 288 | WB03K10359 | Knob Asm Burner |
|
- | |||||
| 289 | WB03K10257 | Knob Asm Grill |
|
- | |||||
| 290 | WB03K10258 | Knob Asm Griddle |
|
- | |||||
| 314 | WB21K10136 | Thermostat Asm |
|
- | |||||
| 355 | WB01K10029 | Screw 832 1/8 |
|
- | |||||
| 372 | WB07K10299 | Bezel Knob |
|
- | |||||
| 374 | WB02K10216 | Lens Bezel |
|
- | |||||
| 378 | WB02K10217 | Bushing Bezel |
|
- | |||||
| 800 | WB01K10042 | Scr 8-18 Ab Ihw 3/8 Sn |
|
- |
