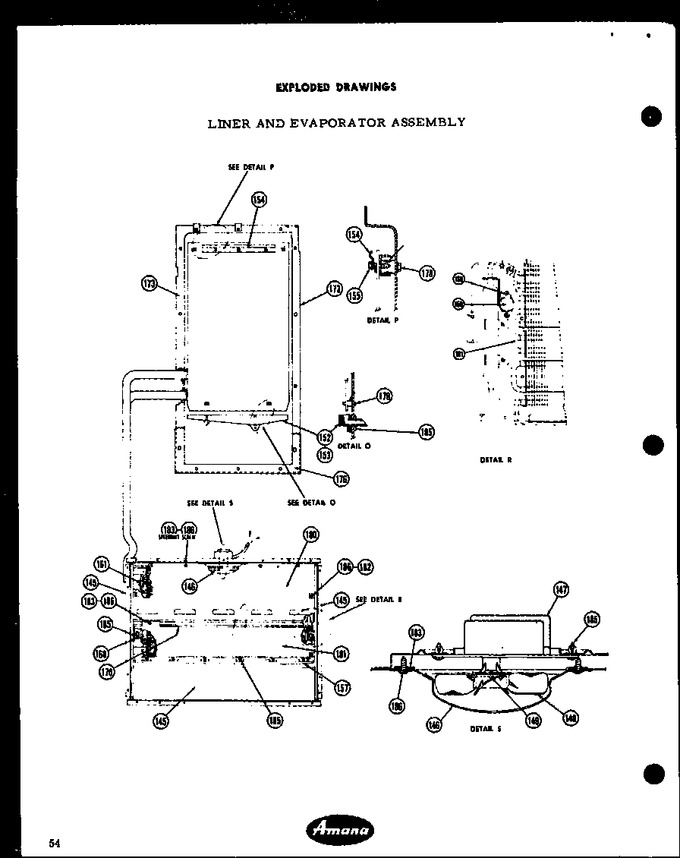

02 - Liner And Evap Assy
03 - Page 1
04 - Ref Door Assy
05 - Ref Liner Assy
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 145 | A0055001 | Liner |
|
- | |||||
| 152 | C3513601 | Drip Tray |
|
- | |||||
| 153 | M0274009 | Washer, Sealing |
|
- | |||||
| 154 | A0382601 | Clamp |
|
- | |||||
| 155 | M0211118 | Screw, Sm |
|
- | |||||
| 168 | B0543101 | Glide Basket |
|
- | |||||
| 170 | B0560001 | Trim, Shelf |
|
- | |||||
| 173 | D3894601 | Cover |
|
- | |||||
| 176 | 212643 | Sealer Ft. A / K (Replaces: M0275507) |
|
Immediately | $ 82.13 | ||||
| 178 | M0218035 | Screw |
|
- | |||||
| NI | W11233072 | Screw (Replaces: M0211631) |
|
Immediately | $ 14.72 | ||||
| NI | A0375001 | Grommet |
|
- | |||||
| NI | A3024901 | Spring Clip, Basket Guide |
|
- | |||||
| NI | Y00000000 | See Note Screw, Machine -- No.10-32 X 5/16`` Tr. Accumulator Clamp Mtg. |
|
- |
