SELECT A DIAGRAM

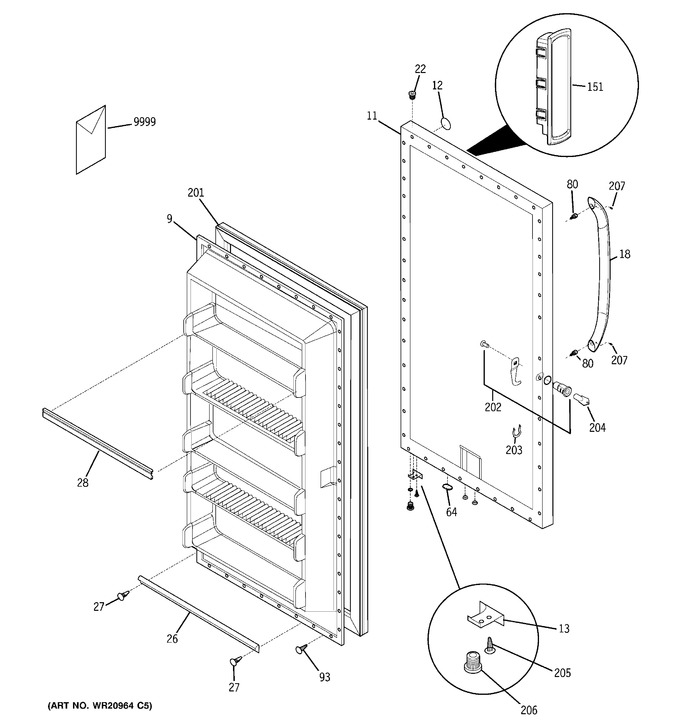

1 - Door


2 - Cabinet


3 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
9	216527615		Panel-inner Door,frzr   (Replaces: WR77X10059)				$ 304.43
11	WR55X10933		Thermistor		Appelez-nous	-
11	WR78X12591		Panel-outer Door, White		Appelez-nous	-
12	WR04X10159		Nameplate		Appelez-nous	-
13	WR02X12995		Door Stop, Chrome, Rh/lh		Appelez-nous	-
18	WG03L01725		Handle Door   (Replaces: WR12X11025)				$ 204.50
22	WR02X12067		Bearing,hinge ,top		Appelez-nous	-
26	WR14X10320		Gasket, Secondary		Appelez-nous	-
27	5304472186		Clip, Panel Mtg   (Replaces: WR01X10916)				$ 11.57
28	WR17X11923		Rack-door		Appelez-nous	-
64	WR02X10087		Plug Button Base Door		Appelez-nous	-
80	WR01X11042		Screw Hourglass		Appelez-nous	-
93	WR01X10797		Screw,ph Truss Head ,8-1		Appelez-nous	-
151	WR55X11084		Control Ez Set Ge 115v W		Appelez-nous	-
201	WR24X10253		Gasket, Door Seal, Whit		Appelez-nous	-
202	WR05X10038		Lock Assy		Appelez-nous	-
203	WR01X10870		Clip, Spring		Appelez-nous	-
204	WR05X10005		Key		Appelez-nous	-
205	WR02X12989		Screw, Door Stop Mtg, Fh		Appelez-nous	-
206	WR02X12310		Bearing-hinge Bottom		Appelez-nous	-
207	WG03A00456		Screw-set   (Replaces: WR01X10922)				$ 64.18

    View Diagram in Separate Window       Print Part List
