1 - Door
2 - Cabinet
3 - Unit Parts
New Model Search:

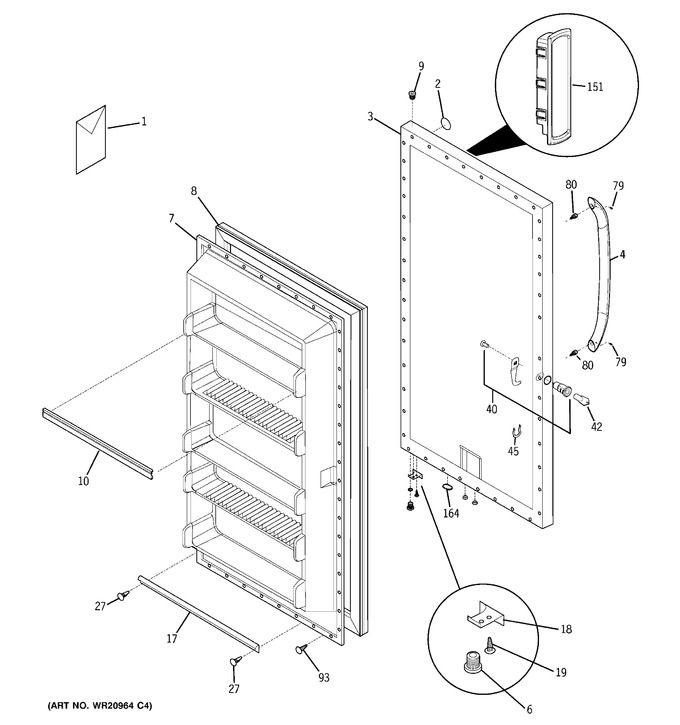

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 49-60567 | Use & Care Manual |
|
- | |||||
| 2 | WR04X10159 | Nameplate |
|
- | |||||
| 3 | WR78X12559 | Panel-outer Door, White |
|
- | |||||
| 4 | WG03L01725 | Handle Door (Replaces: WR12X11025) |
|
$ 204.50 | |||||
| 6 | WR02X12310 | Bearing-hinge Bottom |
|
- | |||||
| 7 | WR77X10060 | Panel-inner Door,frzr |
|
- | |||||
| 8 | WR24X10287 | Gasket, Door Seal, Wh |
|
- | |||||
| 9 | WR02X12067 | Bearing,hinge ,top |
|
- | |||||
| 10 | WR17X11913 | Rack-door |
|
- | |||||
| 17 | 216524201 | Gasket, Secondary (Replaces: WR14X10314) |
|
$ 49.62 | |||||
| 18 | WR02X12995 | Door Stop, Chrome, Rh/lh |
|
- | |||||
| 19 | WR02X12989 | Screw, Door Stop Mtg, Fh |
|
- | |||||
| 27 | 5304472186 | Clip, Panel Mtg (Replaces: WR01X10916) |
|
$ 11.57 | |||||
| 40 | WR05X10038 | Lock Assy |
|
- | |||||
| 42 | WR05X10005 | Key |
|
- | |||||
| 45 | WR01X10870 | Clip, Spring |
|
- | |||||
| 79 | WG03A00456 | Screw-set (Replaces: WR01X10922) |
|
$ 64.18 | |||||
| 80 | WR01X11042 | Screw Hourglass |
|
- | |||||
| 93 | WR01X10797 | Screw,ph Truss Head ,8-1 |
|
- | |||||
| 151 | WR17X4120 | Hose-drain |
|
- | |||||
| 164 | WR02X10087 | Plug Button Base Door |
|
- |
