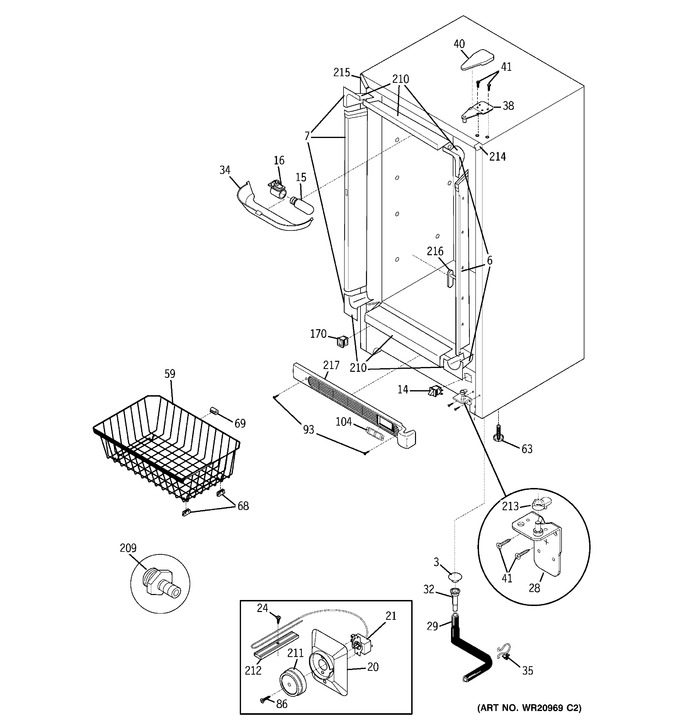

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	WR02X10073		Plug Drain Interior		Appelez-nous	-
6	WR40X10059		Breaker Kit W/corners,no		Appelez-nous	-
7	WR40X10060		Breaker Kit W/corners,in		Appelez-nous	-
14	WR23X10303		Switch Light		Appelez-nous	-
15	PURCH. LOCAL1		Light Bulb/lamp		Appelez-nous	-
16	WR23X10302		Light Socket		Appelez-nous	-
20	WR02X12316		Cover-control Housing		Appelez-nous	-
21	WR09X10063		Control Temp		Appelez-nous	-
24	WR01X10796		Screw,type A ,10-24 X 3/		Appelez-nous	-
28	WR12X10964		Hinge-bottom, Stepped Pi		Appelez-nous	-
29	WR17X11418		Hose-drain		Appelez-nous	-
32	WR2X6353		Drain		Appelez-nous	-
34	WR02X12994		Shield-light		Appelez-nous	-
35	WR1X2181		Clip Drain Hose		Appelez-nous	-
38	297283803		Hinge-upper   (Replaces: WR12X10963)			Immediately	$ 19.52
40	WR02X12689		Cover-hinge		Appelez-nous	-
41	WR01X10997		Screw Bottom Hinge		Appelez-nous	-
59	WR21X10238		Bottom Basket		Appelez-nous	-
63	WR2X9485		Leveling Leg Adjustable		Appelez-nous	-
68	WR2X6808		Slide Basket		Appelez-nous	-
69	WR2X6361		Bumper Basket		Appelez-nous	-
86	WR02X12764		Screw,rwhd ,8-32a X 0.50		Appelez-nous	-
93	WR01X10797		Screw,ph Truss Head ,8-1		Appelez-nous	-
104	WG03F03252		Light,signal ,assy W/bra   (Replaces: WR02X12315)				$ 72.66
170	297280400		Valve, Breather   (Replaces: WR86X10064)				$ 10.13
209	WR1X1965		Hose Adapter		Appelez-nous	-
210	WR40X10058		Breaker Kit W/corners,32		Appelez-nous	-
211	WR02X10860		Knob Cold Control		Appelez-nous	-
212	WR02X11441		Clamp Cap .tube		Appelez-nous	-
213	WR02X10393		Ramp Door Closure		Appelez-nous	-
214	WR02X12717		Trim-cabinet Corner,whit		Appelez-nous	-
215	297273904		Trim-cabinet Corner, Whi   (Replaces: WR02X13348)				$ 7.59
216	WR02X11446		Stop-basket		Appelez-nous	-
217	WR74X10217		Grille/kickplate,32" Wh		Appelez-nous	-
