SELECT A DIAGRAM

10 - Case Parts


1 - Dispenser Door


2 - Machine Compartment


3 - Right Side Door


4 - Freezer Doors


5 - Freezer Section


6 - Freezer Shelves


7 - Ice Maker & Dispenser


8 - Fresh Food Section


9 - Fresh Food Shelves

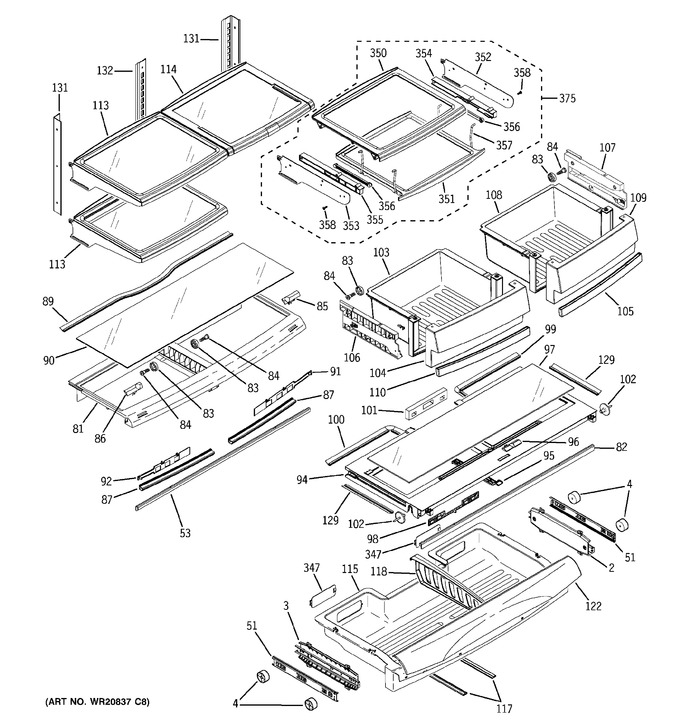

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WR72X10281		Slide & Bracket Asm		Appelez-nous	-
3	WR72X10282		Slide & Bracket Asm		Appelez-nous	-
4	WR01A00892		Spacer   (Replaces: WR72X10260)				$ 12.40
51	WR72X10219		Slide Liner		Appelez-nous	-
53	WR17X12946		Bar Reinforcement		Appelez-nous	-
81	WR32X10818		Cover Top Veg Pan		Appelez-nous	-
82	WR17X12243		Bar Reinforcement		Appelez-nous	-
83	WR01F01936		Wheel Slide   (Replaces: WR01X10937)				$ 4.20
84	WR01A00639		Scr10-16pl Flt25 5/8s Zn   (Replaces: WR01X10968)				$ 4.20
85	WR01F00500		Slide Control   (Replaces: WR17X12586)				$ 4.20
86	WR01F00501		Slide Control   (Replaces: WR17X12587)				$ 3.97
87	WR01L02149		Gasket Pan Cvr Front   (Replaces: WR14X10321)				$ 10.29
89	WR14X10215		Gasket Pan Veg Frame		Appelez-nous	-
90	WR01L02197		Glass Cover Veg Pan   (Replaces: WR32X10819)				$ 67.09
91	WR01F01711		Damper   (Replaces: WR17X12588)				$ 5.36
92	WR17X12589		Damper		Appelez-nous	-
94	WR01L02031		Frame Pan Meat   (Replaces: WR72X10224)				$ 93.23
95	WR01L02792		Linkage Bar Meat Pan 25   (Replaces: WR02X12419)				$ 18.49
96	WR01A00802		Slide Control Meat Pan   (Replaces: WR17X12245)				$ 13.97
97	WR01L04229		Shelf Cant Glass   (Replaces: WR32X10615)				$ 66.14
98	WR17X12246		Damper Meat Pan		Appelez-nous	-
99	WR14X10217		Gasket Frame Meat Side		Appelez-nous	-
100	WR14X10218		Gasket Frame Meat Side		Appelez-nous	-
101	WR01L02141		Gasket Inlet Meat Pan   (Replaces: WR14X10219)				$ 27.82
102	WR01A00975		Support Veg Pan Asm   (Replaces: WR02X13504)			Immediately	$ 4.76
103	WR32X10817		Pan Veg Rear Lh		Appelez-nous	-
104	WR01L03070		Pan Veg Front Lh   (Replaces: WR32X10812)				$ 15.66
105	WR17X12272		Handle Pan Veg Rh		Appelez-nous	-
106	WR72X10376		Side Track Lh		Appelez-nous	-
107	WR72X10375		Side Track Rh		Appelez-nous	-
108	WR32X10816		Pan Veg Rear Rh		Appelez-nous	-
109	WR01L03069		Pan Veg Front Rh   (Replaces: WR32X10811)				$ 18.26
110	WR17X12273		Handle Pan Veg Lh		Appelez-nous	-
113	WR71X10880		Shelf Asm Slideout		Appelez-nous	-
114	WR71X10881		Shelf Asm Tuckaway		Appelez-nous	-
115	WR32X10845		Pan Meat		Appelez-nous	-
117	WR38X10399		Trim Bottom Pan Meat		Appelez-nous	-
118	WR02X12420		Divider Pan		Appelez-nous	-
122	WR01L00816		Cover Flip Lid   (Replaces: WR17X12257)				$ 68.10
129	WR14X10234		Gasket Pan Veg Frame		Appelez-nous	-
131	WR01F01860		Track Side Ff   (Replaces: WR72X10236)				$ 62.61
132	WR72X10235		Track Center Ff		Appelez-nous	-
347	WR17X12994		Insert Meat Pan		Appelez-nous	-
350	WR71X11005		Casserole Shelf Upper		Appelez-nous	-
351	WR71X11006		Casserole Shelf Lower		Appelez-nous	-
352	WR72X10402		Casserole Bracket		Appelez-nous	-
353	WR72X10403		Casserole Bracket		Appelez-nous	-
354	WR72X10399		Slide Outer Rh		Appelez-nous	-
355	WR72X10400		Slide Outer Lh		Appelez-nous	-
356	WR72X10401		Slide Inner		Appelez-nous	-
357	WR01X10988		Wire		Appelez-nous	-
358	WR01X10065		Scr 8-18 Ba Por 5/8 Ss		Appelez-nous	-
375	WR71X11011		Casserole Shelf Asm 25		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
