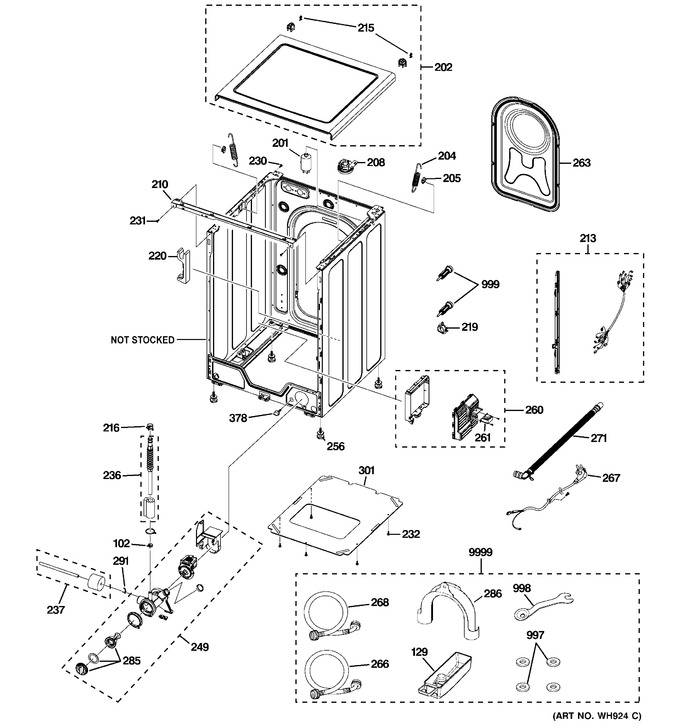

1 - Controls & Dispenser
2 - Cabinet, Cover & Top Panel
3 - Front Panel & Door
4 - Tub & Motor
5 - Fasteners
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 102 | WH02X10311 | Clamp Hose (id-0.55") |
|
- | |||||
| 129 | WG04L01790 | Liquid Detergent Insert (Replaces: WH41X10230) |
|
$ 52.50 | |||||
| 201 | WH41X10229 | Filter-emi |
|
- | |||||
| 202 | WG04L01919 | Top Cover Asm Wh (Replaces: WH44X10225) |
|
$ 211.29 | |||||
| 204 | WH05X10011 | Spring Suspension |
|
- | |||||
| 205 | WH01X10478 | Hanger Spring |
|
- | |||||
| 208 | WG04F05553 | Pressure Switch (Replaces: WH12X10449) |
|
Immediately | $ 92.67 | ||||
| 210 | WH16X10121 | Brace Front |
|
- | |||||
| 213 | WH19X10063 | Harness Main & Guide |
|
- | |||||
| 215 | WG03A00521 | Screw-tapping (Replaces: WR01X10463) |
|
Immediately | $ 6.35 | ||||
| 216 | WH02X10313 | Clamp Hose (id-0.69") |
|
- | |||||
| 219 | WH01X10496 | Hose Guide |
|
- | |||||
| 220 | WH01X10513 | Hose Guide |
|
- | |||||
| 230 | WH02X10322 | Screw-hex (m5xl10) |
|
- | |||||
| 231 | WH02X10323 | Screw-tapping (m4xl12) |
|
- | |||||
| 232 | WH02X10324 | Screw-tapping (m4xl12) |
|
- | |||||
| 236 | WG04F06611 | Assy Hose Pump (Replaces: WH41X10291) |
|
$ 156.86 | |||||
| 237 | WG04F06608 | Hose Pressure Switch (Replaces: WH41X10241) |
|
$ 143.07 | |||||
| 249 | WG04F11505 | Pump Drain Asm (Replaces: WH23X10036) |
|
Immediately | $ 252.47 | ||||
| 256 | WG04L03072 | Leg Leveling Asm (Replaces: WH46X10231) |
|
$ 61.06 | |||||
| 260 | WG04F06490 | Inverter Asm (Replaces: WH12X10448) |
|
Immediately | $ 714.04 | ||||
| 261 | WH01X10489 | Filter Coil(3mh/6a/60hz) |
|
- | |||||
| 263 | WG04L01970 | Back Cover (Replaces: WH44X10222) |
|
$ 79.41 | |||||
| 266 | WH41X10233 | Main Water Hose (cold) |
|
- | |||||
| 267 | WH19X10064 | Power Cord |
|
- | |||||
| 268 | WH41X10232 | Main Water Hose (hot) |
|
- | |||||
| 271 | WG04F04670 | Hose Drain Pump Asm 75" (Replaces: WH41X10239) |
|
Immediately | $ 143.07 | ||||
| 285 | WH01X10476 | Filter Asm |
|
- | |||||
| 286 | WH01X10487 | U-shape Drain Hose Hange |
|
- | |||||
| 291 | WH02X10321 | Clamp Hose (id-0.42") |
|
- | |||||
| 301 | WH01X10482 | Noise Baffle |
|
- | |||||
| 378 | WH01X10485 | Plug Drain |
|
- | |||||
| 997 | WH01X10590 | Plug Button Shipng Bolt |
|
- | |||||
| 998 | WH02X10309 | Spanner Wrench (od-1.4") |
|
- | |||||
| 999 | WH49X10091 | Shipping Bolt |
|
- |
