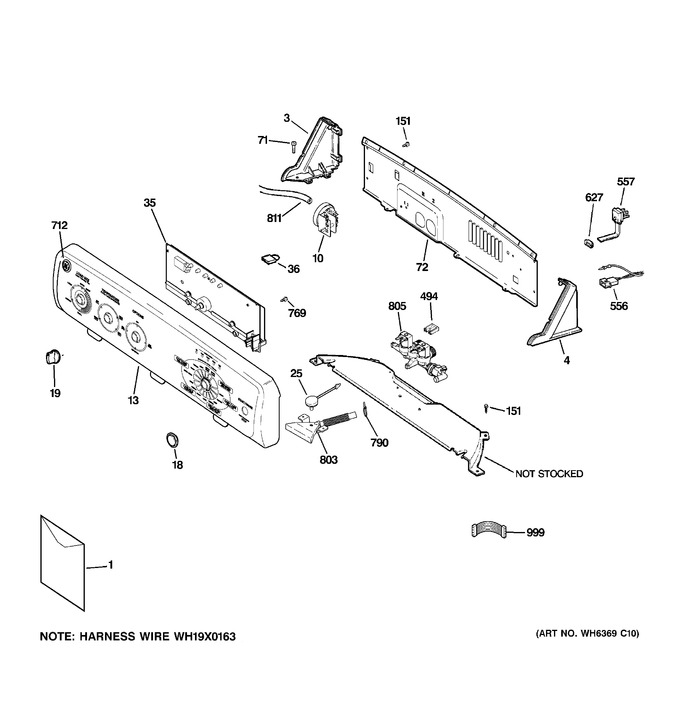

1 - Controls & Backsplash
2 - Cabinet, Cover & Front Panel
3 - Tub, Basket & Agitator
4 - Suspension, Pump & Drive Components
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-15441 | Pm Instruction Install |
|
- | |||||
| 1 | 31-16628-3 | Pm Mini Manual |
|
- | |||||
| 1 | 49-90448 | Pm Manual U&c |
|
- | |||||
| 3 | WH42X22575 | Endcap Washer Lh |
|
- | |||||
| 4 | WH42X22576 | Endcap Washer Rh |
|
- | |||||
| 10 | WH12X10412 | Switch Pressure |
|
- | |||||
| 13 | WG04L05347 | Backsplash Asm (Replaces: WH42X10975) |
|
$ 143.64 | |||||
| 18 | WG04F03527 | Button Switch (Replaces: WH01X10088) |
|
$ 22.87 | |||||
| 19 | WG04L02356 | Knob Asm (Replaces: WH01X10647) |
|
$ 15.54 | |||||
| 25 | WH12X10410 | Probe Sensor Atc |
|
- | |||||
| 35 | WG04F04565 | Board Asm Mounted (Replaces: WH12X10538) |
|
Immediately | $ 272.37 | ||||
| 36 | WH12X10111 | Harness |
|
- | |||||
| 71 | WH2X1205 | Scr 8-18 B 1/2 Hxw P |
|
- | |||||
| 72 | WH46X10146 | Back Panel |
|
- | |||||
| 151 | WH02X10126 | Screw 8-18 B 1hw 1/2 Sn |
|
- | |||||
| 494 | WD21X10257 | Term Hsng - W/valve |
|
- | |||||
| 556 | WH12X497 | Housing Terminal |
|
- | |||||
| 557 | WG04F04596 | Cord Power Asm (Replaces: WH19X10068) |
|
$ 53.80 | |||||
| 627 | WH12X10208 | Self Locking Strain Relf |
|
- | |||||
| 712 | WH01X10648 | Badge |
|
- | |||||
| 769 | WR01X10619 | Scr 10-18 Hi/lo Hxw 1/2 |
|
- | |||||
| 790 | WH1X2036 | Clamp Hose |
|
- | |||||
| 803 | WG04F04648 | Funnel Shower Head Asm (Replaces: WH41X10299) |
|
Immediately | $ 21.44 | ||||
| 805 | WG04F02334 | Valve Triple Water (Replaces: WH13X10037) |
|
Immediately | $ 140.72 | ||||
| 811 | WG04F03638 | Hose Pres Sw (Replaces: WH41X365) |
|
Immediately | $ 14.29 | ||||
| 999 | WH19X10102 | Harness Washer |
|
- |
