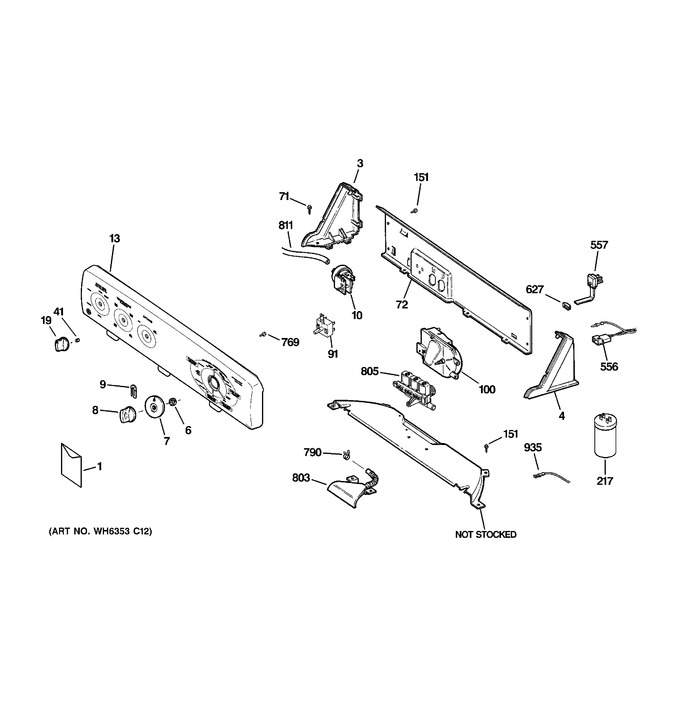

1 - Controls & Backsplash


2 - Cabinet, Cover & Top Panel


3 - Tub, Basket & Agitator


4 - Suspension, Pump & Drive Compenents


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-15441		Pm Instruction Install		Appelez-nous	-
1	31-16642		Pm Mini Manual		Appelez-nous	-
1	49-90413-1		Pm Manual U&c		Appelez-nous	-
3	WH42X10679		Endcap Washer		Appelez-nous	-
4	WG04L02820		Endcap Washer   (Replaces: WH42X10678)				$ 47.17
6	WG04F03746		Ring Compression   (Replaces: WH02X10093)				$ 3.97
7	WG04F03718		Dial Asm   (Replaces: WH11X10047)				$ 19.06
8	WG04L01226		Knob Asm Control   (Replaces: WH01X10314)			Immediately	$ 12.71
9	WG04A00788		Clip Spring   (Replaces: WH1X2117)			Immediately	$ 4.04
10	WG04F03766		Switch Pressure   (Replaces: WH12X10476)			Immediately	$ 89.83
13	WG02L05797		Backsplash Asm   (Replaces: WH42X10922)				$ 155.25
19	WG04L01748		Knob & Clip Asm   (Replaces: WH01X10313)			Immediately	$ 12.71
41	WH01X10106		Clip Knob		Appelez-nous	-
71	WH2X1205		Scr 8-18 B 1/2 Hxw P		Appelez-nous	-
72	WH46X10146		Panel Back Washer		Appelez-nous	-
91	WG04F03769		Switch Rotary   (Replaces: WH12X10498)			Immediately	$ 47.74
100	WG04A01319		Timer Washer   (Replaces: WH12X10536)			Immediately	$ 180.59
151	WH02X10126		Scr 8-18 B 1hw 1/2 Sn		Appelez-nous	-
217	WG04F03692		Capacitor Cmrw Ts 45/2   (Replaces: WH12X10462)			Immediately	$ 67.41
556	WH12X497		Housing Terminal		Appelez-nous	-
557	WG04F04596		Cord Power Asm   (Replaces: WH19X10068)				$ 59.78
627	WH12X10208		Self Locking Strain Relf		Appelez-nous	-
769	WG03A00428		Scr 8-18 Hi/lo 5/8   (Replaces: WR01X10196)				$ 4.20
790	WH1X2036		Clamp Hose		Appelez-nous	-
803	WG04F03731		Hose & Water Inlet   (Replaces: WH41X10077)			Immediately	$ 12.71
805	WG04F09765		Valve Triple Water   (Replaces: WH13X10048)			Immediately	$ 145.93
811	WG04F03638		Hose   (Replaces: WH41X365)			Immediately	$ 15.88
935	WD1X1434		Terminal Special		Appelez-nous	-
