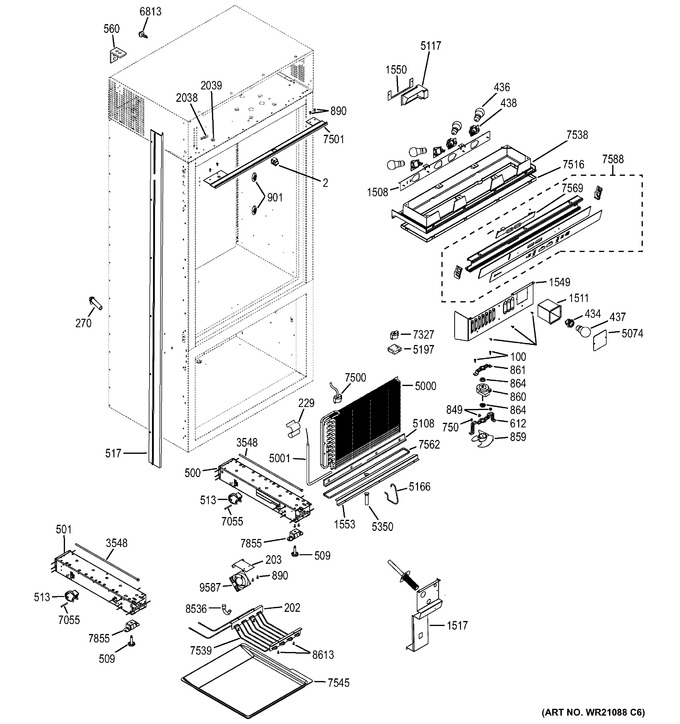

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Doors
2 - Controls & Components
3 - Freezer Section, Trim & Components
4 - Shelves & Drawers
5 - Machine Compartment
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WR23X475 | Rocker Swt |
|
- | |||||
| 100 | WR01X23106 | Screw, 10-24 X 1/2 Type |
|
- | |||||
| 202 | WR02X12572 | Bracket Cond Support Bm |
|
- | |||||
| 203 | WR02X12566 | Bracket Fan Mtg |
|
- | |||||
| 229 | WR01A00194 | Clip Evap Thermistor (Replaces: WR02X10552) |
|
$ 4.17 | |||||
| 270 | WR02X13037 | Grommet Water Fill |
|
- | |||||
| 434 | WR02X11626 | Light Socket Ff/fz |
|
- | |||||
| 436 | 40A15 | 40watt 15amp |
|
Immediately | $ 1.98 | ||||
| 437 | 60A | 60a - 2bulbs |
|
- | |||||
| 438 | WG03F01610 | Socket & Terminal (Replaces: WR02X10591) |
|
$ 12.71 | |||||
| 500 | WR13X10965 | Base Channel Rh |
|
- | |||||
| 501 | WR13X10966 | Base Channel Lh |
|
- | |||||
| 509 | WR02X10479 | Leveling Leg |
|
- | |||||
| 513 | WR2X8377 | Wheel Asm. |
|
- | |||||
| 517 | WR17X11181 | Case Trim Fz Side |
|
- | |||||
| 560 | WR01X10825 | Bracket Anti-tip |
|
- | |||||
| 612 | WR02X10653 | Bracket Orifice Fan |
|
- | |||||
| 750 | WR1X1826 | #8-18 Type Ab X 3/8 Ph P |
|
- | |||||
| 849 | WR01A00163 | Bumper (Replaces: WR02X10540) |
|
Immediately | $ 6.35 | ||||
| 859 | WR60X10050 | Blade Fan Motor |
|
- | |||||
| 860 | WR01F01622 | Motor Evap Dc (Replaces: WR60X10185) |
|
Immediately | $ 69.95 | ||||
| 861 | WR02X11622 | Bracket Evap Fan Btm |
|
- | |||||
| 864 | WR02X10519 | Grommet Evap Fan |
|
- | |||||
| 890 | WG04A01239 | #10x1 Ph Sms (Replaces: WD2X295) |
|
$ 3.97 | |||||
| 901 | WR71X10325 | Ff Air Diffuser |
|
- | |||||
| 1508 | WR02X11023 | Fixture Lighting |
|
- | |||||
| 1511 | WR74X10085 | Bracket Light Socket Fz |
|
- | |||||
| 1517 | WR02X13607 | Cover Fill Tube |
|
- | |||||
| 1549 | WR74X10344 | Cover Evap Fan |
|
- | |||||
| 1550 | WR17X11009 | Bracket Damper Mtg |
|
- | |||||
| 1553 | WR17X12380 | Catch Trough Evap |
|
- | |||||
| 3548 | WG03F00037 | Base Shaft (Replaces: WR01X10256) |
|
$ 14.29 | |||||
| 5000 | WR85X10118 | Evaporator Bm |
|
- | |||||
| 5001 | WR51X10125 | Heater Defrost |
|
- | |||||
| 5074 | WR17X10347 | Light Shield Fz |
|
- | |||||
| 5108 | WR17X10349 | Drain Baffle |
|
- | |||||
| 5117 | WR09X10065 | Damper Motorized |
|
- | |||||
| 5166 | WR01X10045 | Wire Ret Evap Heater |
|
- | |||||
| 5197 | WR02X10145 | Baffle Evap Lh |
|
- | |||||
| 5350 | WR17X10655 | Drain Tube |
|
- | |||||
| 6813 | WR01X10484 | 8-32 X 5/8" Ph Ss Tcs |
|
- | |||||
| 7055 | WR02X10478 | Axle Wheel |
|
- | |||||
| 7327 | WR50X10045 | Thermodisc, Defrost Ff |
|
- | |||||
| 7500 | WR50X10105 | Tod Evap |
|
$ 24.45 | |||||
| 7501 | WR17X11557 | Switch Plate Rh |
|
- | |||||
| 7516 | WR17X11014 | Light Shield Ff |
|
- | |||||
| 7538 | WR17X11015 | Trim Lighting Ff |
|
- | |||||
| 7539 | WR84X10102 | Cond Bottom Bm |
|
- | |||||
| 7545 | WR17X11016 | Drain Pan |
|
- | |||||
| 7562 | WR17X11098 | Evaporator Trough |
|
- | |||||
| 7569 | WR55X10846 | Board Asm Control Temp |
|
- | |||||
| 7588 | WR55X10918 | Kit Hmi Asm Bm |
|
- | |||||
| 7855 | WR02X11210 | Front Roller Asm |
|
- | |||||
| 8536 | WR17X10355 | Drain Tube Trap |
|
- | |||||
| 8613 | WR1X2129 | Screw, #8-15 X 1/2 Cr Pa |
|
- | |||||
| 9587 | WR60X10225 | Fan Fresh Food |
|
- | |||||
| WG03F00417 | Im Crescent |
|
Immediately | $ 207.39 | |||||
| WG03F00574 | Stand Off |
|
$ 112.62 | ||||||
| WG03F00686 | Valve |
|
Immediately | $ 80.53 | |||||
| WG03F02384 | Tube De Remplissage, Monogram |
|
$ 371.43 | ||||||
| WG03F02444 | Board Asm Main Control |
|
$ 270.99 | ||||||
| WG03A00490 | Toe Kick, Monogram Sst |
|
$ 200.09 | ||||||
| WR01F02256 | Motor Evap Dc |
|
Immediately | $ 139.84 |
