SELECT A DIAGRAM

1 - Escutcheon & Door Assembly

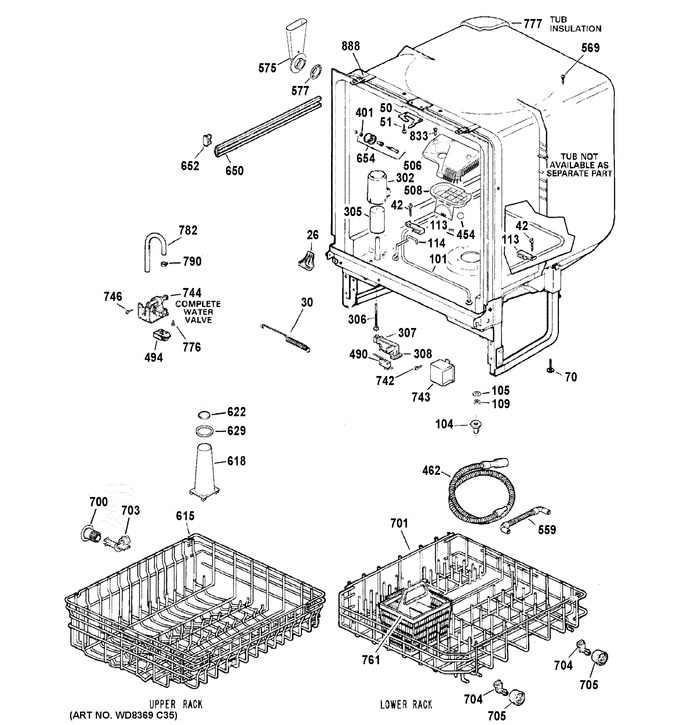

2 - Body Parts


3 - Motor-pump Mechanism


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
26	WG04F00036		Baffle Tub Corner Lh   (Replaces: WD8X228)			Immediately	$ 10.86
26	WG04F01565		Baffle Tub Corner Rh   (Replaces: WD8X227)			Immediately	$ 10.86
30	WG04A01292		Spring Door Bk 20 Lb   (Replaces: WD03X10006)				$ 136.29
42	WD02X10110		Screw #8-3/4 L Hx Hd Ss		Appelez-nous	-
50	WG04F04725		Keeper Latch   (Replaces: WD13X67)				$ 11.12
51	WD02X10066		Screw 10-24x1/2 Tt Trr S		Appelez-nous	-
70	WG04A00321		Screw Level   (Replaces: WD2X320)				$ 15.88
101	WG04A04608		Element Heating Asm   (Replaces: WD05X10009)				$ 96.47
104	WD01X10070		Nut Tower Heater		Appelez-nous	-
105	WD1X1168		Heater Washer		Appelez-nous	-
109	WD8X225		Grommet Heater		Appelez-nous	-
113	WD01X10086		Support Calrod Assy		Appelez-nous	-
114	WD1X1472		Support Heater		Appelez-nous	-
302	WD12X445		Float Dome		Appelez-nous	-
305	WD12X334		Flood Float		Appelez-nous	-
306	WD12X335		Float Stem		Appelez-nous	-
307	WD12X10023		Bracket Flood Switch		Appelez-nous	-
308	WG04F01663		Cover Bracket   (Replaces: WD12X377)				$ 9.53
401	WD3X767		Washer St Stl		Appelez-nous	-
454	WG04F04501		Ball Filter - Orange   (Replaces: WD12X10408)			Immediately	$ 23.82
462	WG04F01563		Hose Drain   (Replaces: WD24X10014)			Immediately	$ 68.11
490	WG04F01056		Switch Flood   (Replaces: WD21X479)				$ 14.29
494	WD21X10355		Hsng Special-water Valve		Appelez-nous	-
506	WD12X10356		Cover Inlet		Appelez-nous	-
508	WD12X10358		Cap Sump		Appelez-nous	-
559	WD24X10041		Hose Chamber		Appelez-nous	-
569	WD02X10114		Scr 8-18 Pl Hxw 3/8 S		Appelez-nous	-
575	WD12X10180		Funnel Fill		Appelez-nous	-
577	WD08X10053		Gasket Funnel Fill		Appelez-nous	-
615	WG04F12728		Rack Asm Final Upper   (Replaces: WD28X10210)			Immediately	$ 236.95
618	WG04L01923		Tower Upper Rack   (Replaces: WD28X10367)				$ 17.47
622	WG04L03171		Cap Tower Upper   (Replaces: WD28X10202)				$ 4.20
629	WD01X10339		Seal Cap Tower Upper		Appelez-nous	-
650	WG04L00503		Rack Slide   (Replaces: WD30X98)				$ 14.29
652	WG04L00086		Rack Slide End Cap   (Replaces: WD12X10304)			Immediately	$ 94.28
654	WD12X332		Roller Stud Asm				$ 4.88
700	WG04A01309		Stud & Roller Asm - Upper   (Replaces: WD12X10269)				$ 6.35
701	WG04A05238		Rack Asm Final Lower   (Replaces: WD28X10284)				$ 209.83
703	WD12X10266		Stud Roller - Upper		Appelez-nous	-
704	WG04L01910		Stud Roller - Lower   (Replaces: WD12X10265)				$ 38.75
705	WG04A03477		Roller Lower Rack   (Replaces: WD12X10074)			Immediately	$ 67.43
742	WG04A00176		Screw 8-16 Hxw 1/2 Ss   (Replaces: WD02X10067)				$ 3.97
743	WG02L01023		Cover Junction Box   (Replaces: WD12X448)				$ 20.65
744	WG03F00838		Valve Water Inlet   (Replaces: WD15X10014)			Immediately	$ 65.23
746	WD2X248		Scr 10-24x3/8 Tt Hex		Appelez-nous	-
761	WG04F00380		Basket Silverware Tm   (Replaces: WD28X265)			Immediately	$ 78.84
776	WG04A01257		Scr 10-32 C Hx 7/16 S   (Replaces: WD02X10159)				$ 3.97
777	WG04A05053		Insulation Tub   (Replaces: WD01X10419)				$ 34.94
782	WG04F00460		Water Inlet Hose   (Replaces: WD18X202)				$ 14.29
790	WH1X2036		Clamp Hose		Appelez-nous	-
790	WD01X10065		Clamp Hose		Appelez-nous	-
833	WD02X10195		Scr 8-16 Ab 1hxw 1.25 Ss		Appelez-nous	-
888	WD35X200		Bracket Counter		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
