View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Controls & Dispenser

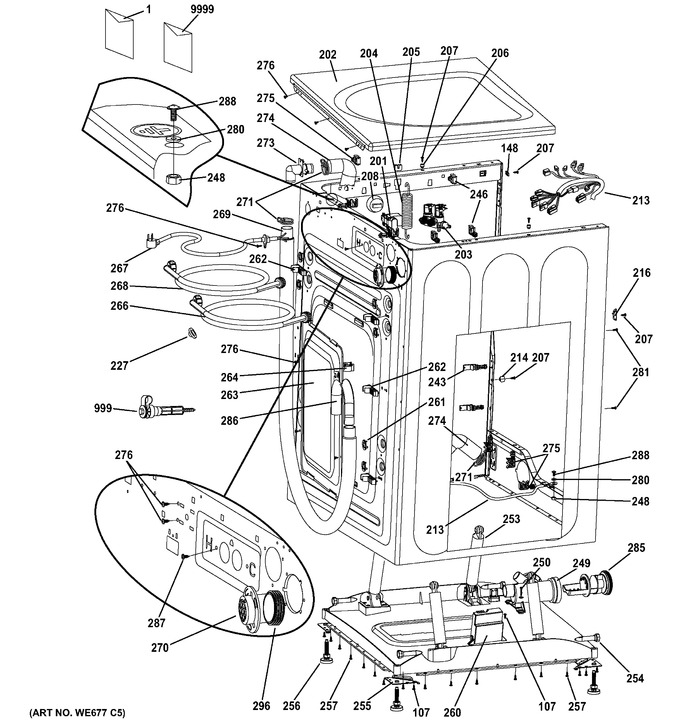

2 - Cabinet & Top Panel
3 - Front Panel & Door
4 - Tub & Motor
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 49-90521 | Pm Owners Manual |
|
- | |||||
| 107 | WH02X10183 | Screw_st4*13 |
|
- | |||||
| 148 | WH01X10651 | Control Panel Pin |
|
- | |||||
| 201 | WH41X10301 | Emi Filter |
|
- | |||||
| 202 | WG04L02681 | Top Panel Sub (Replaces: WH44X10297) |
|
$ 213.17 | |||||
| 203 | WG04F00002 | 2 In 3 Out Water Valve (Replaces: WH13X10029) |
|
Immediately | $ 134.04 | ||||
| 204 | WH05X10012 | Spring - Suspension |
|
- | |||||
| 205 | WG04A00964 | Spring_hanger (Replaces: WH01X10251) |
|
Immediately | $ 3.57 | ||||
| 206 | WH01X10252 | Top_panel_pin |
|
- | |||||
| 207 | WH02X10187 | Screw_st 4.2x14 |
|
- | |||||
| 208 | WH12X10546 | Pressure Switch |
|
- | |||||
| 213 | WH19X10100 | Wire Harness |
|
- | |||||
| 214 | WH01X10652 | Front Panel Pin |
|
- | |||||
| 216 | WH16X10073 | Front_panel_hanger |
|
- | |||||
| 227 | WH01X10636 | Inlet Hose Strainer |
|
- | |||||
| 243 | WH16X10074 | Wire_catch |
|
- | |||||
| 246 | WH16X10076 | Wire_catch |
|
- | |||||
| 248 | WH02X10199 | Nut_m5 |
|
- | |||||
| 249 | WG04F12336 | Pump (Replaces: WH23X10038) |
|
Immediately | $ 131.62 | ||||
| 250 | WH02X10200 | Screw_washer_st4*25 |
|
- | |||||
| 253 | WH01X10385 | Damper - Shock |
|
- | |||||
| 254 | WH01X10261 | Damper_pin |
|
- | |||||
| 255 | WH16X10077 | Corner Bracket |
|
- | |||||
| 256 | WH46X10243 | Leg Asm |
|
- | |||||
| 257 | WH02X10201 | Screw_st4.2*13 |
|
- | |||||
| 260 | WG04F03583 | Inverter (Replaces: WH12X10470) |
|
$ 295.33 | |||||
| 261 | WH44X10206 | Cover - Shipping Screw |
|
- | |||||
| 262 | WH01X10262 | Outside_drain_hose_catch |
|
- | |||||
| 263 | WH46X10237 | Cabinet Rear Cover |
|
- | |||||
| 264 | WH01X10263 | Inside_drain_hose_catch |
|
- | |||||
| 266 | WW03L00236 | Main_water_hose_cold (Replaces: WH41X10286) |
|
$ 75.33 | |||||
| 267 | WH19X10071 | Power Cord |
|
- | |||||
| 268 | WW03L00236 | Main_water_hose_hot (Replaces: WH41X10287) |
|
$ 75.33 | |||||
| 269 | WG04F00643 | Outside_drain_hose (Replaces: WH41X10126) |
|
$ 89.94 | |||||
| 270 | WH01X10527 | Vent Hose Coupling |
|
- | |||||
| 271 | WH01X10265 | Drain_hose_clamp |
|
- | |||||
| 273 | WG04F00309 | Drain_hose_coupling (Replaces: WH01X10266) |
|
$ 6.80 | |||||
| 274 | WH41X10127 | Inside_drain_hose |
|
- | |||||
| 275 | WH16X10078 | Wire_catch_1 |
|
- | |||||
| 276 | WH02X10203 | Screw St4.2*11 |
|
- | |||||
| 280 | WH02X10218 | Lock Washer |
|
- | |||||
| 281 | WH02X10219 | Screw_st4*10 |
|
- | |||||
| 285 | WG04A05158 | Pump Filter (Replaces: WH23X10029) |
|
$ 34.31 | |||||
| 286 | WG04F04381 | Drain Hose Guide U-shape (Replaces: WH41X10133) |
|
$ 7.51 | |||||
| 287 | WH02X10251 | Screw M4*8 |
|
- | |||||
| 288 | WH02X10234 | Screw M5*12 |
|
- | |||||
| 296 | WH08X10052 | Seal Vent Pipe |
|
- | |||||
| 999 | WH49X10081 | Kit - Shipping Bolt |
|
- | |||||
| 9999 | WE25X10028 | Kit - Stacking Wsh/dry |
|
- | |||||
| WG04A00796 | Emi Filter |
|
$ 135.71 | ||||||
| WG04F00002 | Water Valve |
|
Immediately | $ 134.04 | |||||
| WG04F00309 | Drain Hose Coupling |
|
$ 6.80 | ||||||
| WG04F00643 | Outside Drain Hose |
|
$ 89.94 | ||||||
| WG04F02290 | Damper Shock |
|
$ 88.02 | ||||||
| WG04F02295 | Courroie |
|
Immediately | $ 154.53 | |||||
| WG04F02296 | Joint Etanche, Cuve |
|
$ 25.28 | ||||||
| WG04F02346 | Motor Asm Kit |
|
$ 670.91 | ||||||
| WG04F12336 | Pompe (Replaces: WG04F02348) |
|
Immediately | $ 131.62 | |||||
| WG04F02357 | Pipe Siphon |
|
$ 7.00 | ||||||
| WG04F02372 | Cuve Arr. Asm. |
|
$ 729.60 | ||||||
| WG04F03583 | Inverter |
|
$ 295.33 | ||||||
| WG04F03755 | Softener Bleach Cover |
|
$ 24.30 | ||||||
| WG04F03796 | Board |
|
Immediately | $ 743.29 | |||||
| WG04F03818 | Cuve |
|
$ 229.73 | ||||||
| WG04F03823 | Boulon |
|
$ 19.90 | ||||||
| WG04F05145 | Control Panel |
|
$ 250.54 | ||||||
| WG04F05554 | Pressure Switch |
|
$ 149.60 | ||||||
| WG04F06613 | Assemblage |
|
$ 106.36 | ||||||
| WG04F07907 | Ui Board |
|
Immediately | $ 700.15 | |||||
| WG04F12336 | Pompe (Replaces: WG04F07916) |
|
Immediately | $ 131.62 | |||||
| WG04F07920 | Gasket |
|
$ 422.14 | ||||||
| WG04F09677 | Circuit Imprimﾉ (Replaces: WG04F07933) |
|
Immediately | $ 480.05 | |||||
| WG04L00161 | Door Plunger |
|
$ 20.54 | ||||||
| WG04L00177 | Door Lock |
|
Immediately | $ 227.90 | |||||
| WG04L01235 | Liquid Detergent Insert |
|
$ 10.01 | ||||||
| WG04L01245 | Front Panel |
|
$ 252.93 | ||||||
| WG04L01253 | Assemblage |
|
$ 610.43 | ||||||
| WG04L01689 | Gasket |
|
Immediately | $ 393.55 | |||||
| WW03L00225 | Insert Handle |
|
$ 13.53 | ||||||
| WG04L02156 | Dr Frm Handle Sub |
|
$ 194.65 | ||||||
| WG04L02681 | Assemblage |
|
$ 213.17 | ||||||
| WG04L02980 | Drawer |
|
$ 119.34 | ||||||
| WG04L04502 | Door_lock |
|
Immediately | $ 204.26 | |||||
| WG04L04503 | Front Panel Ww |
|
$ 466.36 | ||||||
| WW02A00093 | Nut-strip Door Guide |
|
$ 3.57 | ||||||
| WW02L00167 | Door Guide |
|
$ 5.18 | ||||||
| WW02F00614 | Marco Y Filtro Ens (Replaces: WW03L00186) |
|
Immediately | $ 53.95 | |||||
| WW03L00219 | Panel Front(wh) |
|
$ 84.28 | ||||||
| WG04A00752 | Drive Pulley Kit |
|
$ 170.53 | ||||||
| WW03L00224 | Ring Outer Door(gray) |
|
$ 99.75 |
