SELECT A DIAGRAM

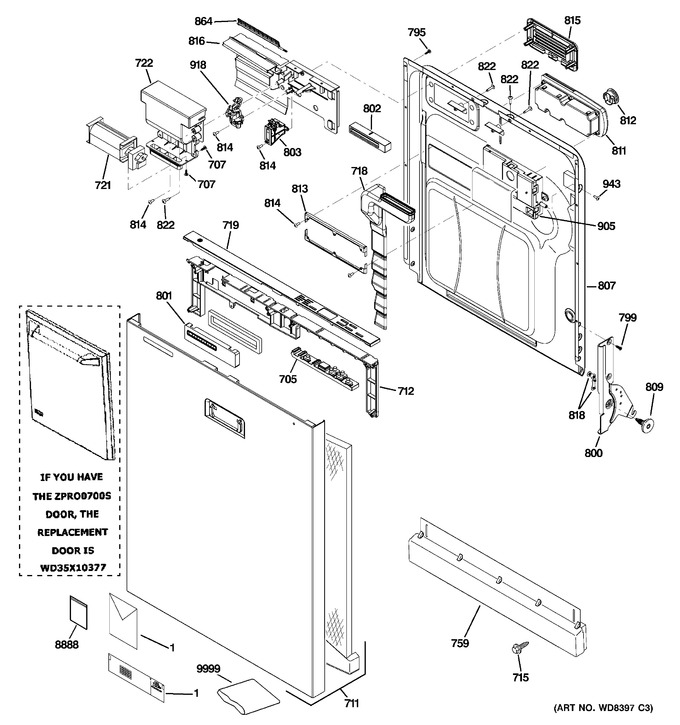

1 - Escutcheon & Door Assembly


2 - Body Parts


3 - Upper Rack Assembly


4 - Lower Rack Assembly


5 - Motor-pump Mechanism


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-30636		Pm Sheet Mini Manual		Appelez-nous	-
1	31-30284		Pm Install Instructions		Appelez-nous	-
1	31-30569-4		Pm Custom Panel Template		Appelez-nous	-
1	49-55079		Pm Manual Use & Care		Appelez-nous	-
1	WD02X10208		Scr 10-32 Tt Hxw 7/16 S		Appelez-nous	-
705	WD01X10534		Button Asm Silicone Ss		Appelez-nous	-
707	WD02X10166		Scr 8-18 Ab Hw 1/2 Ss		Appelez-nous	-
711	WD34X11701		Panel Asm Outer		Appelez-nous	-
712	WD27X10381		Console & Cover Asm		Appelez-nous	-
715	WD02X10085		Scr 8-18 B 1hw 1/2 S N		Appelez-nous	-
715	WH02X10126		Scr 8-18 B 1hw 1/2 Sn		Appelez-nous	-
718	WD12X10190		Conduit Exhaust Asm		Appelez-nous	-
721	WG04F03674		Blower Dishwasher   (Replaces: WD26X10056)				$ 165.07
722	WG04F04688		Inlet Transition Piece   (Replaces: WD12X10351)				$ 51.54
759	WD27X10206		Toekick Asm		Appelez-nous	-
795	WG04A00378		Screw   (Replaces: WD2X444)				$ 3.57
799	WD02X10149		Scr 10-32 Gxtt Flp.595 S		Appelez-nous	-
800	WG04L01512		Arm Hinge Lh Asm   (Replaces: WD14X10046)				$ 217.35
800	WD14X10047		Arm Hinge Rh Asm		Appelez-nous	-
803	WG02F02962		Latch Asm   (Replaces: WD13X10031)				$ 73.90
807	WD31X10129		Door Inner & Gasket		Appelez-nous	-
809	WG04A01243		Scr 10-32gx Flt25 .615 S   (Replaces: WD02X10084)				$ 3.57
811	WG04F00692		Module Rinse And Cap Asm   (Replaces: WD12X10163)			Immediately	$ 154.01
812	WG04L00093		Cap Rinse Asm   (Replaces: WD12X10122)				$ 35.73
813	WG04A00035		Bracket Detergent Disp   (Replaces: WD01X10207)				$ 5.72
814	WD02X10104		Scr 8-10 Pl Trp 1/2 S		Appelez-nous	-
815	WG04L01582		Cover Vent   (Replaces: WD12X10127)				$ 27.16
818	WG04L01539		Bearing Hinge Arm   (Replaces: WD12X10313)				$ 10.54
822	WG04A00158		Scr 8-18 Ab Tr 7/8s   (Replaces: WD02X10106)				$ 3.57
864	WD12X10067		Flapper Vent		Appelez-nous	-
905	WG04A02629		Module Control Asm   (Replaces: WD21X10441)				$ 291.52
918	WG04F01276		Vent Driver Asm   (Replaces: WD21X10172)				$ 62.96
943	WZ05X0219		Screw		Appelez-nous	-
9999	WG04A01014		Bag And Bracket Asm   (Replaces: WD35X10372)				$ 22.87

    View Diagram in Separate Window       Print Part List
