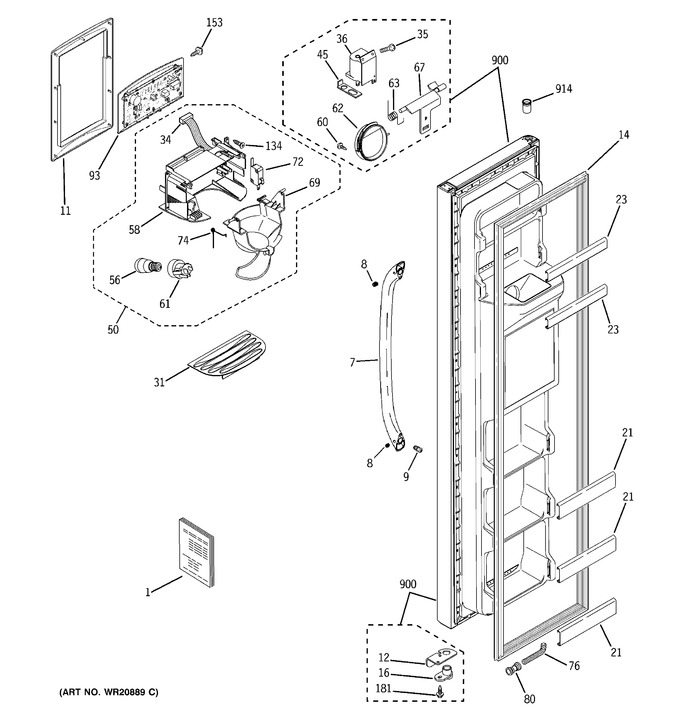

1 - Freezer Door
2 - Fresh Food Door
3 - Freezer Section
4 - Freezer Shelves
5 - Ice Maker & Dispenser
6 - Fresh Food Section
7 - Fresh Food Shelves
8 - Machine Compartment
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-51790 | Pm Mini Manual Wiring |
|
- | |||||
| 1 | 49-60514 | Pm Guide Owners |
|
- | |||||
| 7 | WR12X20857 | Tubular Handle Asm |
|
- | |||||
| 8 | WR01X11056 | Set Screw |
|
- | |||||
| 9 | WR01X11039 | Fastener Handle |
|
- | |||||
| 11 | WR38X10301 | Recess Trim |
|
- | |||||
| 12 | WR02X10576 | Plate Door Stop Fz |
|
- | |||||
| 14 | WR24X10300 | Gasket Door Fz |
|
- | |||||
| 16 | WG03L01097 | Cam & Thimble Fz (Replaces: WR02X11478) |
|
$ 7.20 | |||||
| 21 | WR17X12070 | Front Door Shelf Fz |
|
- | |||||
| 23 | WR17X12076 | Front Door Shelf Fz |
|
- | |||||
| 31 | WR17X10712 | Grill Recess White |
|
- | |||||
| 34 | WR23X10525 | Harness Recess Disp |
|
- | |||||
| 35 | WR01X10649 | Scr 8-10 Pl Pnp 1/2 S |
|
- | |||||
| 36 | WR01F01784 | Solenoid Asm (Replaces: WR62X10055) |
|
$ 88.99 | |||||
| 45 | WR2X8818 | Retainer Recess Door |
|
- | |||||
| 50 | WR02X21643 | Housing Recess Asm Disp |
|
- | |||||
| 56 | WG03A03944 | Light Dispenser (Replaces: WR02X12208) |
|
Immediately | $ 67.41 | ||||
| 58 | WG03F00341 | Housing Shield Disp (Replaces: WR17X12152) |
|
$ 18.59 | |||||
| 60 | WR01X10656 | Scr 4-10 Pl Pnp 5/16 S5h |
|
- | |||||
| 61 | WR2X9561 | Lamp Socket |
|
- | |||||
| 62 | WR01L01914 | Door Recess Asm (Replaces: WR17X11653) |
|
$ 65.21 | |||||
| 63 | WG03A00047 | Spring Recess Door (Replaces: WR02X10585) |
|
Immediately | $ 3.97 | ||||
| 67 | WR01L00935 | Crank Door Recess (Replaces: WR17X10706) |
|
$ 12.71 | |||||
| 69 | WR17X11264 | Funnel Ice Display |
|
- | |||||
| 72 | WR23X10783 | Switch |
|
- | |||||
| 74 | WR02X10584 | Spring Funnel |
|
- | |||||
| 76 | WR2X8933 | Sleeve Water Line |
|
- | |||||
| 80 | WR01F02845 | Union Connector (Replaces: WR02X11330) |
|
Immediately | $ 19.06 | ||||
| 93 | WR55X11113 | Combined Hmi Asm |
|
- | |||||
| 134 | WR01X10616 | Scr 6-10 Pl Flp 1/2 S |
|
- | |||||
| 153 | WR01X10597 | Scr 6-20 B Fhp 3/8 S |
|
- | |||||
| 181 | WR01X10655 | Scr 10-32 F Hxw 3/4 S |
|
- | |||||
| 900 | WR78X12920 | Door Asm Foam Fz Wh |
|
- | |||||
| 914 | WR01X10200 | Thimble Door Top |
|
- |
