SELECT A DIAGRAM

1 - Body Parts


2 - Pump

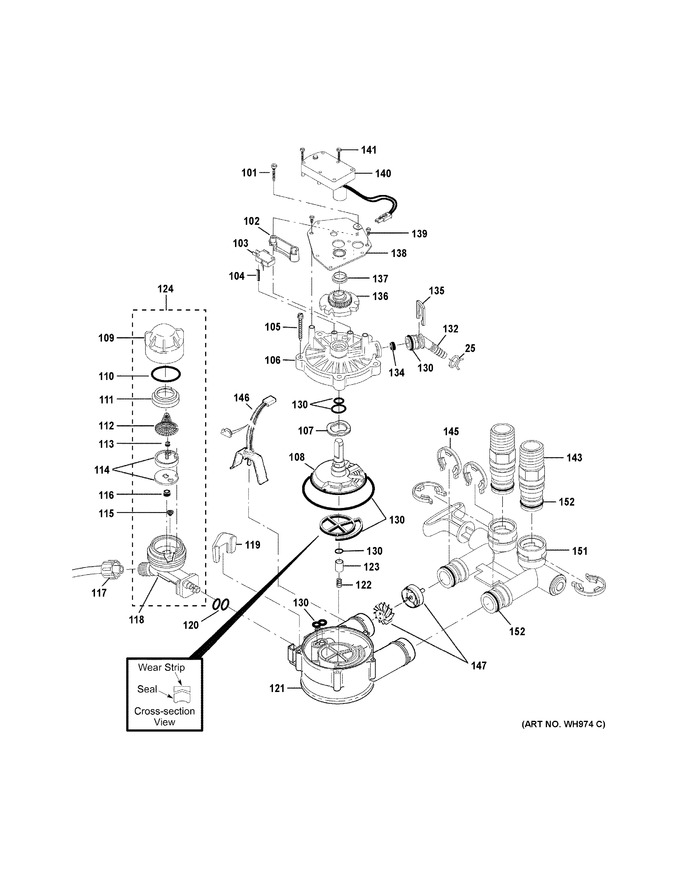

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
25	WS18X10003		Clamp Hose				$ 45.92
101	WS02X10012		Screw #4 - 24 X 1-1/8"		Appelez-nous	-
102	WS02X10013		Spacer				$ 3.54
103	WS21X10003		Switch				$ 33.08
104	WS01X10055		Pin Expansion   (Replaces: WS03X10009)				$ 78.40
105	WS02X10014		Screw #10 - 14 X 2 "		Appelez-nous	-
106	WS01X10055		Valve Cover Asm				$ 78.40
106	WS01X10055		Cover Valve   (Replaces: WS31X10006)				$ 78.40
107	WS03X10010		Washer Wave				$ 41.11
108	WS26X10002		Rotor & Disc				$ 94.73
109	WS19X10010		Cap		Appelez-nous	-
110	WS03X10011		Seal O-ring 1-1x1/4 Inch				$ 13.67
111	WS19X10005		Support Screen		Appelez-nous	-
112	WS03X10013		Screen				$ 17.67
113	WS22X10036		Flow Plug 15 Gpm				$ 19.59
114	WS08X10008		Gasket, Nozzle/vent		Appelez-nous	-
115	WS03X10013		Screen				$ 17.67
116	WS22X10021		Plug Fill Flow 3 Gpm				$ 26.34
117	WS03X10017		Nut Ferrule				$ 12.85
118	WS15X10034		Nozzle/venturi Body				$ 69.04
119	WS03X10018		Retainer				$ 12.85
120	WS03X10019		Seal O-ring 1/4" X 3/8"				$ 3.54
121	WS15X10010		Body Valve				$ 216.11
122	WS03X10020		Spring				$ 6.75
123	WS22X10022		Plug Drain Sal				$ 25.05
124	WS15X10046		Nozzle/vent Asm				$ 109.50
130	WS35X10005		Seal Kit				$ 124.27
132	WS22X10064		Drain Hose Adapter Kit				$ 44.96
132	WS22X10065		Drain Hose Adapter Kit				$ 24.00
134	WS03X10022		Plug Flow Rinse Control				$ 9.64
135	WS15X10077		Clip   (Replaces: WS03X10023)				$ 121.38
136	WS26X10003		Cam & Gear				$ 46.56
137	WS26X10004		Bearing				$ 9.21
138	WS26X10022		Plate Motor		Appelez-nous	-
139	WS02X10028		Screw #6 - 20 X 3/8"		Appelez-nous	-
140	WS26X10021		Motor Asm				$ 84.45
141	WS02X10058		Screw #8 - 32 X 1		Appelez-nous	-
143	WS60X10013		Adapt.-npt Thd-std Valve				$ 33.67
145	WS60X10004		Clip				$ 8.37
146	WS28X10017		Harness Wire, Sensor Asm				$ 70.56
147	WS19X10006		Turbine & Support Assy				$ 120.10
151	WS15X10053		Valve, By-pass Asm				$ 140.43
152	WS03X10072		Seal, O-ring				$ 37.25

    View Diagram in Separate Window       Print Part List
