SELECT A DIAGRAM

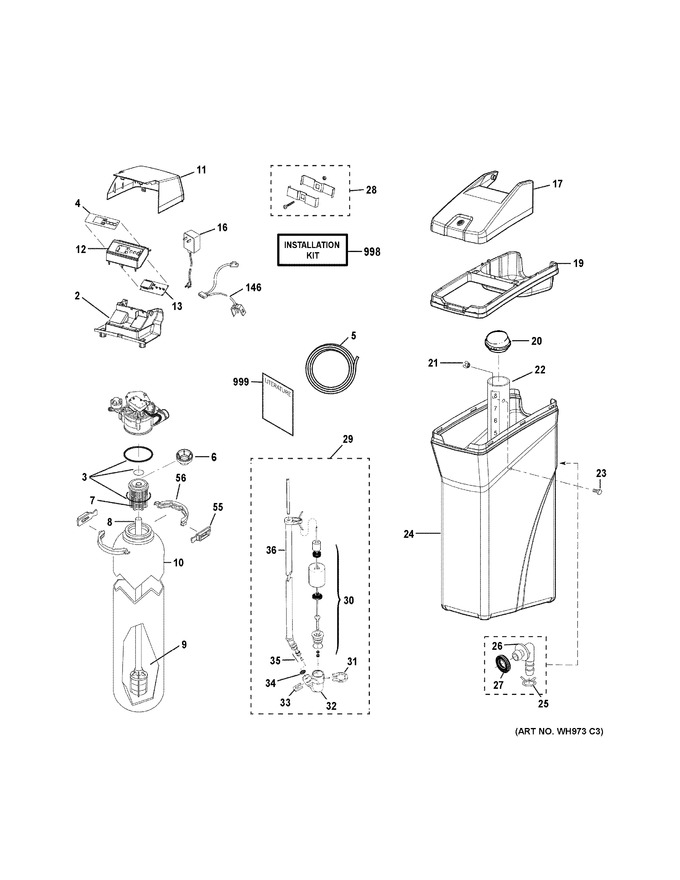

1 - Body Parts


2 - Pump


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WS31X10051		Back Cover		Appelez-nous	-
3	WS35X10001		O-ring Seal Kit				$ 35.65
4	WS34X10023		Decal, Faceplate		Appelez-nous	-
5	WS07X10004		Drain Hose-20ft				$ 84.45
6	WS31X10044		Filter Screen		Appelez-nous	-
7	WS14X10002		Distributor Top				$ 43.67
8	WS14X10001		Distributor Bottom				$ 238.90
9	WS01X10002		Resin - 1 Cu Ft				$ 263.31
10	WS32X10018		Resin Tank		Appelez-nous	-
11	WS31X10052		Cover, Top		Appelez-nous	-
12	WS34X10021		Faceplate		Appelez-nous	-
13	WS21X20981		Control   (Replaces: WS21X10054)		Appelez-nous	-
16	WS26X10013		Transformer W/power Cord				$ 143.84
17	WS31X10053		Cover, Salt Hole W/label		Appelez-nous	-
19	WS33X10010		Rim		Appelez-nous	-
20	WS31X10024		Cvr Brinewell W/ Decal				$ 23.77
21	WS02X10088		Wing Nut 1/4 - 20   (Replaces: WS02X10009)				$ 22.80
22	WS34X10025		Brinewell W/ Decal		Appelez-nous	-
23	WS02X10027		Screw				$ 45.92
24	WS32X10032		Tank,brine		Appelez-nous	-
25	WS18X10003		Clamp Hose				$ 45.92
26	WS22X10016		Adaptor Hose				$ 45.92
27	WS22X10017		Grommet				$ 45.92
28	WS35X10035		Ground Clamp Kit		Appelez-nous	-
29	WS15X10077		Brine Valve Asm				$ 121.38
30	WS35X10063		Float, Stem & Guide				$ 127.80
31	WS60X10004		Clip				$ 8.37
32	WS15X10077		Valve Body Brine   (Replaces: WS15X10006)				$ 121.38
33	WS15X10077		Clip   (Replaces: WS03X10023)				$ 121.38
34	WS15X10077		Screen   (Replaces: WS03X10008)				$ 121.38
35	WS07X10030		Tubing Asm.		Appelez-nous	-
36	WS07X10015		Brine Tube Asm		Appelez-nous	-
55	WS28X10078		Retainer Clamp   (Replaces: WS28X10003)				$ 42.39
56	WS28X10078		Clamp   (Replaces: WS28X10007)				$ 42.39
146	WS28X10018		Harness Wire, Sensor Asm		Appelez-nous	-
998	WS35X10065		Installation Kit		Appelez-nous	-
999	49-50283		Owners Manual		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
