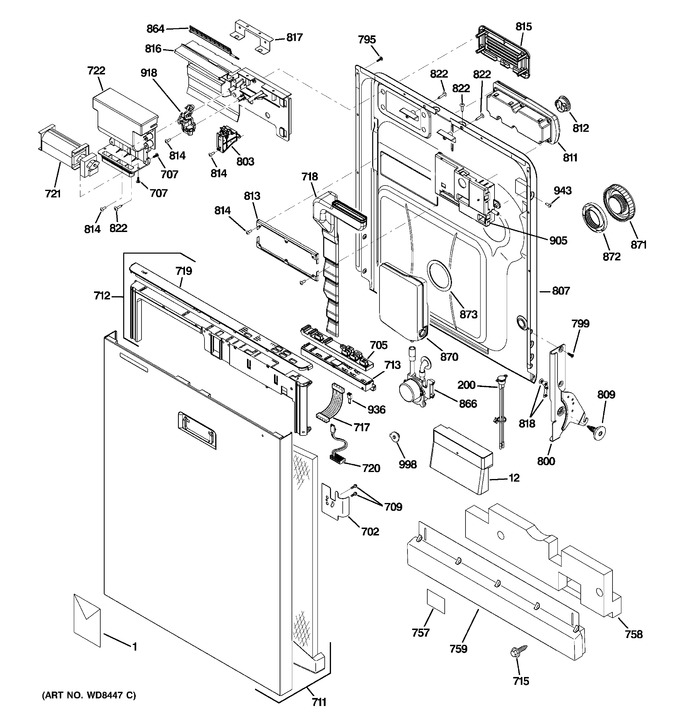

1 - Escutcheon & Door Assembly


2 - Body Parts


3 - Upper Rack Assembly


4 - Lower Rack Assembly


5 - Motor-pump Mechanism


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-30284		Pm Install Instructions		Appelez-nous	-
1	31-30636		Pm Sheet Mini Manual		Appelez-nous	-
1	49-55079		Pm Manual Use & Care		Appelez-nous	-
1	WD01X10295		Strip Hardness Tester		Appelez-nous	-
1	WD02X10208		Scr 10-32 Tt Hxw 7/16 S		Appelez-nous	-
12	WD12X10387		Board Cntrl Shield		Appelez-nous	-
200	WD01X10449		Thermostat		Appelez-nous	-
705	WD01X10592		Button Asm Silicone		Appelez-nous	-
707	WD02X10201		Scr 10-24 Tap Rnp 1/2		Appelez-nous	-
711	WD34X11722		Panel Asm Outer		Appelez-nous	-
712	WD27X10382		Console & Cover Asm		Appelez-nous	-
713	WD31X10132		Tactile Asm Housing		Appelez-nous	-
715	WH02X10126		Scr 8-18 B 1hw 1/2 Sn		Appelez-nous	-
717	WD01X10557		Harness Hmi Asm		Appelez-nous	-
718	WD12X10190		Conduit Exhaust Asm		Appelez-nous	-
720	WD01X10558		Harness Display Asm		Appelez-nous	-
721	WG04F03674		Blower Dishwasher   (Replaces: WD26X10056)				$ 183.41
722	WG04F04688		Inlet Transition Piece   (Replaces: WD12X10351)				$ 57.27
757	WD27X10250		Kit Toekick Asm		Appelez-nous	-
758	WD01X10421		Foam Brace		Appelez-nous	-
759	WD27X10206		Toekick Asm		Appelez-nous	-
795	WD02X10200		Screw		Appelez-nous	-
799	WG04A00158		Scr 8-18 Ab Tr 7/8s   (Replaces: WD02X10106)				$ 3.97
800	WD14X10040		Hinge Arm Asm Lh		Appelez-nous	-
800	WD14X10041		Hinge Arm Asm Rh		Appelez-nous	-
803	WG02F02962		Latch Asm   (Replaces: WD13X10031)				$ 82.11
807	WG04L01615		Door Inner & Gasket   (Replaces: WD31X10131)				$ 177.42
809	WD02X10203		Scr M3.5 Ab Pnp 9mm S Zn		Appelez-nous	-
811	WG04F00692		Module Rinse And Cap Asm   (Replaces: WD12X10163)			Immediately	$ 171.12
812	WG04L00093		Cap Rinse Asm   (Replaces: WD12X10122)				$ 39.70
813	WG04A00035		Bracket Detergent Disp   (Replaces: WD01X10207)				$ 6.35
814	DR01X10001		Scr 8-10 Pl Trp 1/2 S		Appelez-nous	-
815	WG04L01582		Cover Vent   (Replaces: WD12X10127)				$ 30.18
816	WG04A01336		Vent Bracket Asm   (Replaces: WD12X10383)				$ 973.98
817	WD01X10551		Latch Bracket		Appelez-nous	-
818	WG04L01539		Bearing Hinge Arm   (Replaces: WD12X10313)				$ 10.54
822	WD02X10202		Scr 8-18 Ab Ov .655		Appelez-nous	-
864	WD12X10067		Flapper Vent		Appelez-nous	-
866	WG04L01599		Dispensing Det Asm   (Replaces: WD12X10384)				$ 253.30
870	WD35X10376		Bottle Detergent Asm		Appelez-nous	-
871	WD12X10282		Cap Asm				$ 165.35
872	WD12X10212		Lock Nut Asm		Appelez-nous	-
873	WG04L01694		Gasket Fill Hole   (Replaces: WD08X10060)				$ 15.88
905	WG04A02629		Module Control Asm   (Replaces: WD21X10441)				$ 323.91
918	WG04F01276		Vent Driver Asm   (Replaces: WD21X10172)				$ 69.95
936	WD21X10483		Model Selector Plug Asm		Appelez-nous	-
943	WZ05X0219		Screw		Appelez-nous	-
998	WG04A01804		Trim Panel Accessary Ki   (Replaces: WD35X10370)				$ 137.10
