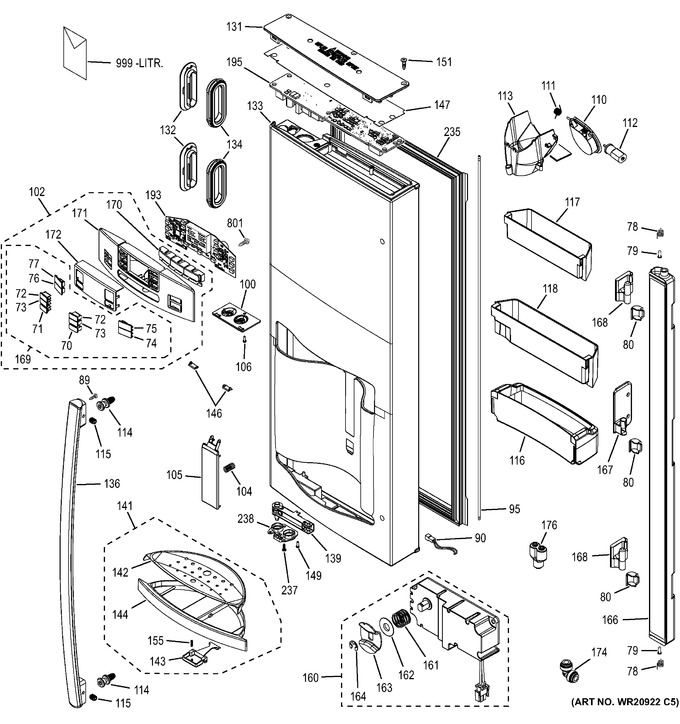

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 70 | WR04X10188 | Turbo Cool Button Asm |
|
- | |||||
| 71 | WR04X10186 | Ice Maker Button Asm |
|
- | |||||
| 72 | WR04X10184 | Lt Up Arrow Button Asm |
|
- | |||||
| 73 | WR04X10185 | Lb Down Arrow Button Asm |
|
- | |||||
| 74 | WR04X10209 | Dispenser Light Btn Asm |
|
- | |||||
| 75 | WR04X10208 | Control Lock Button Asm |
|
- | |||||
| 76 | WR04X10210 | Reset Filter Button Asm |
|
- | |||||
| 77 | WR04X10207 | Door Alarm Button Asm |
|
- | |||||
| 80 | WR02X13739 | Hinge Cap |
|
- | |||||
| 89 | WR01X11044 | Scr 10-32 B Rns .353 S |
|
- | |||||
| 90 | WR23X10755 | Harness Led Jumper |
|
- | |||||
| 95 | WR02X13701 | Tube Pex Lh Door |
|
- | |||||
| 100 | WR55X11155 | Cover Led Fz Asm |
|
- | |||||
| 102 | WR17X13143 | Display Asm (icid) |
|
- | |||||
| 104 | WR01X11027 | Spring |
|
- | |||||
| 105 | WR17X13140 | Paddle Frt Switch Asm Wh |
|
- | |||||
| 106 | WR01X11054 | Scr 8-18 Flp 1/2 S |
|
- | |||||
| 110 | WR17X13057 | Duct Door Asm |
|
- | |||||
| 111 | WR01X11017 | Spring Duct Door |
|
- | |||||
| 112 | WR60X10344 | Motor Duct Door |
|
- | |||||
| 113 | WR17X13099 | Funnel Ice |
|
- | |||||
| 114 | WR01A01801 | Fastener Door Handle (Replaces: WR01X11007) |
|
Immediately | $ 12.71 | ||||
| 115 | WG03A01608 | Set Screw (Replaces: WR01X11014) |
|
Immediately | $ 6.35 | ||||
| 116 | WR71X11051 | Bin Door Ice Btm Asm |
|
- | |||||
| 117 | WR71X11045 | Bin Ice Door Top Lh |
|
- | |||||
| 118 | WR71X11046 | Bin Ice Door Mid Lh |
|
- | |||||
| 131 | WR02X13721 | Cover Door Pcb Wh |
|
- | |||||
| 131 | WR17X13203 | Pcb Cover Asm Wh |
|
- | |||||
| 132 | WR14X10367 | Collar Gasket |
|
- | |||||
| 133 | WR78X12895 | Door Disp Asm Ff Lh Wh |
|
- | |||||
| 133 | WR78X12903 | Door Disp Foam Asm Ff Lh |
|
- | |||||
| 134 | WR14X10364 | Port Gasket |
|
- | |||||
| 136 | WR12X11035 | Handle Asm Fin Ff Lh Wh |
|
- | |||||
| 136 | WR12X11038 | Arc Handle Asm Ff Wh |
|
- | |||||
| 139 | WR11X10034 | Closure Door Asm Lh |
|
- | |||||
| 141 | WR17X13138 | Tray Recess Asm Wh |
|
- | |||||
| 142 | WR17X13137 | Grill Recess Wh |
|
- | |||||
| 143 | WR02X13689 | Lever Tray Lock |
|
- | |||||
| 144 | WR17X13179 | Tray Recess Wh |
|
- | |||||
| 146 | WR02X13655 | Shield Led Light |
|
$ 19.05 | |||||
| 147 | WR02X13676 | Heat Shield |
|
- | |||||
| 149 | WG03A00428 | Screw 8-18 Hi/lo 5/8 (Replaces: WR01X10196) |
|
$ 4.20 | |||||
| 151 | WR01X11028 | Scr 8-18 Flp 1/2 S |
|
- | |||||
| 155 | WR01X11035 | Spring Tray Latch |
|
- | |||||
| 160 | WR60X10345 | Auger Motor Asm |
|
- | |||||
| 161 | WR02X13645 | Spring Clutch Am |
|
- | |||||
| 162 | WR02X13646 | Guard Spring Am |
|
- | |||||
| 163 | WR02X13647 | Clutch Coupling Am |
|
- | |||||
| 164 | WR02X13648 | E Clip |
|
- | |||||
| 166 | WR17X13136 | Mullion Articula. Asm Wh |
|
- | |||||
| 167 | WR13X10984 | Hinge Center Mullion |
|
- | |||||
| 168 | WR13X10985 | Hinge Mullion |
|
- | |||||
| 170 | WR17X13141 | Water/crush/cube Button |
|
- | |||||
| 171 | WR17X13139 | Cover Display |
|
- | |||||
| 172 | WR17X13114 | Cover Control Pcb |
|
- | |||||
| 174 | WR02X13609 | Connector 90 Degree 5/16 |
|
- | |||||
| 174 | WR02X13737 | Connector 90 Deg 5/16 |
|
- | |||||
| 176 | WR02X13711 | Coupler 1/4 Y |
|
- | |||||
| 193 | WR55X11144 | Pcb Asm Led Icon Ui |
|
- | |||||
| 195 | WG03A04315 | Pcb Asm Door Control (Replaces: WR55X11186) |
|
$ 156.86 | |||||
| 235 | WR14X10374 | Gasket Ff Wh |
|
- | |||||
| 237 | WR01X11032 | Scr 10-24 Ab Rnt 20 5/8 |
|
- | |||||
| 238 | WR02X13634 | Stop Door Rh/lh Asm |
|
- | |||||
| 801 | WD02X10129 | 6-19 X 1/4 Torx Pan Head |
|
- |
