Diagram # Part Number Description Series Availability Ships Price Add to Cart
240 WR50X10109 Thermostat Defrost Ff Appelez-nous -
621 WR02X10518 Holder Element Appelez-nous -
636 WR02X13678 Holder Element Asm Appelez-nous -
709 WR24X10292 Boot Fan Ff Motor Appelez-nous -
710 WR60X10341 Fan Motor Dc Ff Evap Appelez-nous -
711 WR24X10289 Gasket Damper Mp Appelez-nous -
712 WR02X13733 Gasket Fan Back Appelez-nous -
719 WR55X11152 Sensor Temperature Appelez-nous -
720 WR17X13081 Ff Air Duct Asm Appelez-nous -
721 WR17X13049 Diverter & Badge Asm Appelez-nous -
722 WR02X13666 Insulation Fan Appelez-nous -
728 WR85X10154 Evap & Tube Asm Ff Appelez-nous -
730 WR17X13091 Trough Drain Ff Appelez-nous -
739 WR51X10133 Heater Conduction Ff Appelez-nous -
756 WR17X13048 Cover Connector Ff Fan Appelez-nous -
757 WR23X10753 Heater Harness Ff Appelez-nous -
761 WR51X10132 Heater Def Asm Ff Appelez-nous -
799 WR17X13142 Evap Cover Asm Ff Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

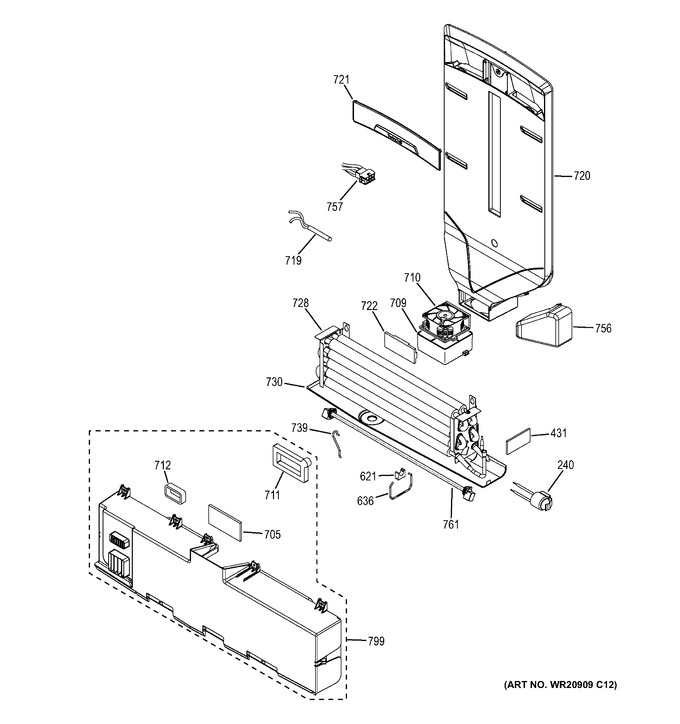

Diagram for GFE27GGDABB
