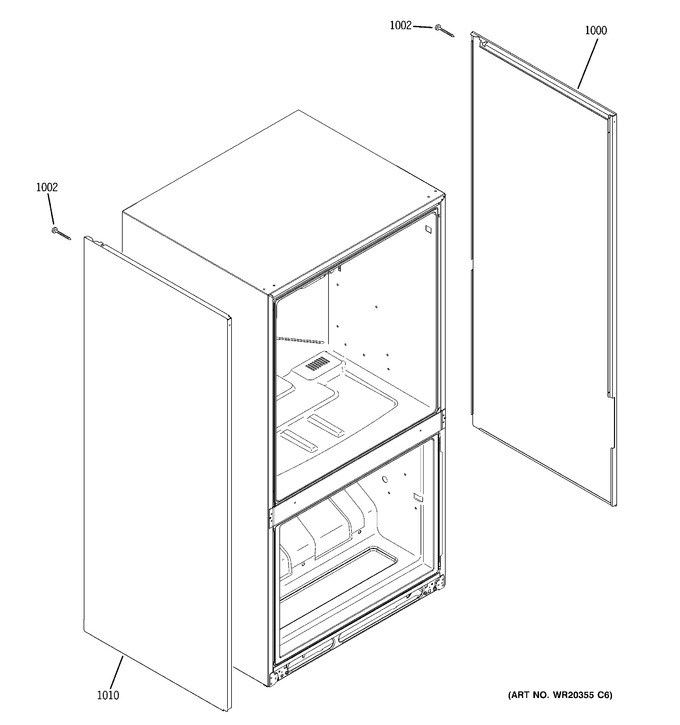

8 - Clad Components
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1000 | WR99X10131 | Side Clad Bf 21 Rh |
|
- | |||||
| 1002 | WR01X10933 | Screw 10n100txp0z |
|
- | |||||
| 1010 | WR99X10132 | Side Clad Bf 21 Lh |
|
- | |||||
| WR01L04627 | Vent Cover Kit |
|
$ 518.32 | ||||||
| WR01F02868 | Defrost Thermostat |
|
Immediately | $ 65.77 | |||||
| WR01F02845 | Connector |
|
Immediately | $ 19.06 | |||||
| WR01F01730 | Sensor Temp Ff |
|
Immediately | $ 15.72 | |||||
| WS01A00013 | Plaque-marque |
|
$ 30.04 | ||||||
| WR01F00725 | Double Coil Water Tank |
|
$ 62.91 | ||||||
| WR01F00291 | Board Main Combined Hmi |
|
Immediately | $ 435.93 | |||||
| WR01F00253 | Board Asm Temp Control |
|
$ 205.95 | ||||||
| WR01A00633 | Vis |
|
$ 3.97 | ||||||
| WG03L05594 | Pan Veg Lh Asm |
|
$ 163.13 | ||||||
| WG03L05593 | Pan Veg Rh Asm |
|
$ 163.13 | ||||||
| WG03L07736 | Pan Meat Asm (Replaces: WG03L05058) |
|
$ 96.01 | ||||||
| WG04F11911 | Valve (Replaces: WG03F00685) |
|
Immediately | $ 94.13 | |||||
| WG03F00433 | Motor Dc Cond Fan |
|
Immediately | $ 106.28 | |||||
| WR01F00995 | Heater Def Asm |
|
$ 84.76 | ||||||
| WR01L06216 | Gasket Tower Ff |
|
Immediately | $ 3.97 | |||||
| WR01L06189 | Handle Asm Commercial |
|
$ 92.10 | ||||||
| WR01L04226 | Clayette |
|
$ 114.59 | ||||||
| WR01L02559 | Icemaker Asm (Replaces: WR01L02566) |
|
Immediately | $ 136.45 | |||||
| WR01L06216 | Gasket Tower Ff (Replaces: WR01L02190) |
|
Immediately | $ 3.97 | |||||
| WR01L01722 | Porte Isolee A La Mousse Asm., Plane |
|
$ 227.81 | ||||||
| WR01L01483 | Door Foam Asm Flat Rh |
|
$ 235.41 | ||||||
| WR01L01454 | Porte Gauche Asm |
|
$ 298.14 |
