SELECT A DIAGRAM

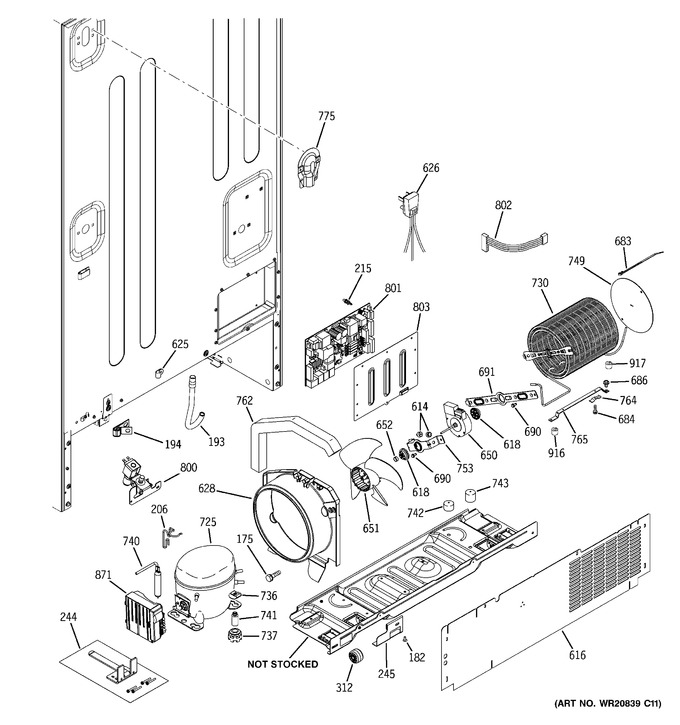

10 - Machine Compartment


1 - Dispenser Door


2 - Clad Components


3 - Doors & Bins


4 - Freezer Section


5 - Freezer Shelves


6 - Ice Maker & Dispenser


7 - Fresh Food Section


8 - Fresh Food Shelves


9 - Case Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
175	WR01X10035		Scr 8-18 Ab Ihw 5/8 S		Appelez-nous	-
182	WR01X10622		Scr 10-32 B Ihxw 1/2		Appelez-nous	-
193	WR01F01884		Tube Drain   (Replaces: WR02X11426)			Immediately	$ 36.53
194	WR01X10684		Clamp Cable		Appelez-nous	-
206	WR02X12377		Clip Drain Tube		Appelez-nous	-
215	WR02X10663		Stand Off		Appelez-nous	-
244	WR49X10179		Kit Anti Tip Asm		Appelez-nous	-
245	WR17X12267		Anti Tip Base Bracket		Appelez-nous	-
312	WG03L06838		Wheel Mobility Rear   (Replaces: WR02X10695)				$ 19.06
614	WR01A00163		Bumper Lid   (Replaces: WR02X10540)			Immediately	$ 6.35
616	WR01L00714		Cover Access   (Replaces: WR82X10109)				$ 119.45
618	WR01A00579		Grommet Evap Fan   (Replaces: WR02X11331)				$ 3.97
626	WR23X10540		Cord Power Asm		Appelez-nous	-
628	WR01L04391		Shroud Condenser   (Replaces: WR17X12668)				$ 26.20
650	WR60X10216		Motor Dc Cond Fan		Appelez-nous	-
651	WR01F02003		Blade Cond Fan Asm   (Replaces: WR60X10206)				$ 11.51
652	WG03F01616		Ring Compression   (Replaces: WR02X12149)				$ 3.97
683	WR02X11027		Wire Tie		Appelez-nous	-
684	WR01X10602		Scr 8-32 Ab Ihws 3/8 S		Appelez-nous	-
686	WR01X10252		Scr 10-32 Tt Hxw 5/16 S		Appelez-nous	-
690	WR1X1466		Scr 8-32 T Hxw 3/8 S		Appelez-nous	-
691	WR02X10593		Bracket Cond Fan (rear)		Appelez-nous	-
725	WR87X10180		Inverter Compressor Emb		Appelez-nous	-
730	WR01F02892		Condenser Asm   (Replaces: WR84X10022)				$ 403.54
736	WR2X8203		Clip Compressor Mount		Appelez-nous	-
737	WR01F00846		Grommet   (Replaces: WR02X10099)				$ 7.15
740	WG03A03157		Dryer Bifurcated Xh9   (Replaces: WR86X96)			Immediately	$ 153.40
741	WR1X1779		Stud Mtg Compr		Appelez-nous	-
742	WR02X10587		Support Condenser		Appelez-nous	-
743	WR02X10588		Support Condenser		Appelez-nous	-
749	WR17X11039		Baffle Cond Air		Appelez-nous	-
753	WR02X10521		Brkt Cond Fan (mtg)		Appelez-nous	-
762	WR14X10053		Foam Strip Se Adh		Appelez-nous	-
764	WR2X9000		Clip, Cond Mnt		Appelez-nous	-
765	WR17X10763		Bracket Condenser Bar		Appelez-nous	-
775	WR17X13124		Cover Water Line		Appelez-nous	-
800	WR57X10040		Water Valve				$ 71.10
801	WR01F00241		Board Asm Main Control   (Replaces: WR55X11098)			Immediately	$ 292.81
802	WR23X10710		Harness Board Indiv		Appelez-nous	-
803	WR02X12025		Main Board Enclosure Asm		Appelez-nous	-
871	WG04A00766		Inverter Asm   (Replaces: WR55X10979)			Immediately	$ 554.11
916	WR02X13569		Grommet		Appelez-nous	-
917	WR02X13573		Grommet		Appelez-nous	-
	WR01F00138		Blower Fan Duct			Immediately	$ 209.42
	WR01F00241		Board Asm Main Control			Immediately	$ 292.81
	WR01F00500		Slide Control				$ 4.20
	WR01F00501		Slide Control				$ 3.97
	WR01F01461		Interface Dispenser Asm			Immediately	$ 151.55
	WR01F01730		Sensor Temp Ff			Immediately	$ 16.29
	WR01F02845		Connector			Immediately	$ 19.06
	WR01F03637		Switch			Immediately	$ 17.47
	WR01L00905		Cover Top Veg Pan			Immediately	$ 114.45
	WG03F00433		Motor Dc Cond Fan			Immediately	$ 106.28
	WR01L01444		Door Foam Asm Flat Rh				$ 248.81
	WR01L01723		Door Foam Asm Fz Flat				$ 262.06
	WR01L01887		Door Ice Box Asm				$ 184.49
	WR01L01888		Door Ice Box Hinge Bottom				$ 18.81
	WR01L01889		Door Ice Box Hinge Top				$ 52.54
	WR01L02030		Frame Pan Meat				$ 86.88
	WG03F07366		Icemaker - Door Mounted   (Replaces: WR01L02568)			Immediately	$ 244.43
	WR01L04627		Vent Cover Kit				$ 518.32
	WR01L01426		Door Foam Asm Fr Flt Lh				$ 385.13
	WG04F11911		Valve   (Replaces: WG03F00685)			Immediately	$ 123.62
	WG03L04412		Sealing Compound 2lb Slug				$ 69.65
	WG04A00766		Inversuer Asm.			Immediately	$ 554.11
	WR01A00751		Service Kit I&w Door				$ 378.17
	WR01A01053		Screw Mobility				$ 49.21
	WG03L06838		Wheel Mobility   (Replaces: WR01A01068)				$ 19.06
	WR01F00017		Air Tower Asm			Immediately	$ 193.86
