1 - Escutcheon & Door Assembly


2 - Body Parts


3 - Upper Rack Assembly


4 - Lower Rack Assembly


5 - Sump & Filter Assembly


6 - Sump & Motor Mechanism


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

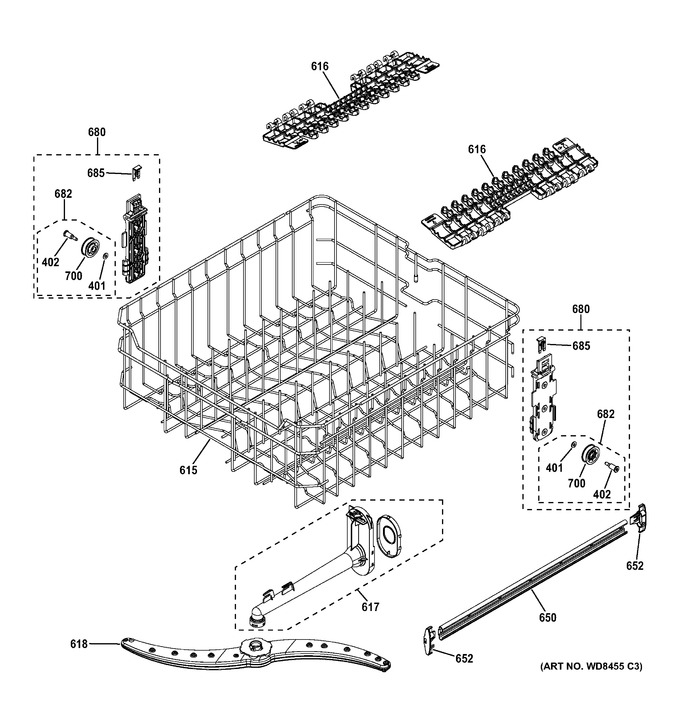

615	WG01L03262		Serivice Kit Upper Rack   (Replaces: WD28X10352)				$ 173.80
616	WD28X10350		Shelf Cup		Appelez-nous	-
617	WD22X10094		Conduit Mid Asm		Appelez-nous	-
618	WD22X10089		Arm Spray Mid Asm		Appelez-nous	-
650	WG04L03827		Slide Rack   (Replaces: WD30X10042)				$ 27.82
652	WG04L01637		End Cap   (Replaces: WD12X10426)				$ 6.35
680	WG04L05774		Rack Bracket Asm   (Replaces: WD12X10448)				$ 11.12
682	WD12X10431		Upp Rack Roller Stud Asm		Appelez-nous	-
685	WD12X10430		Clip Bracket		Appelez-nous	-
