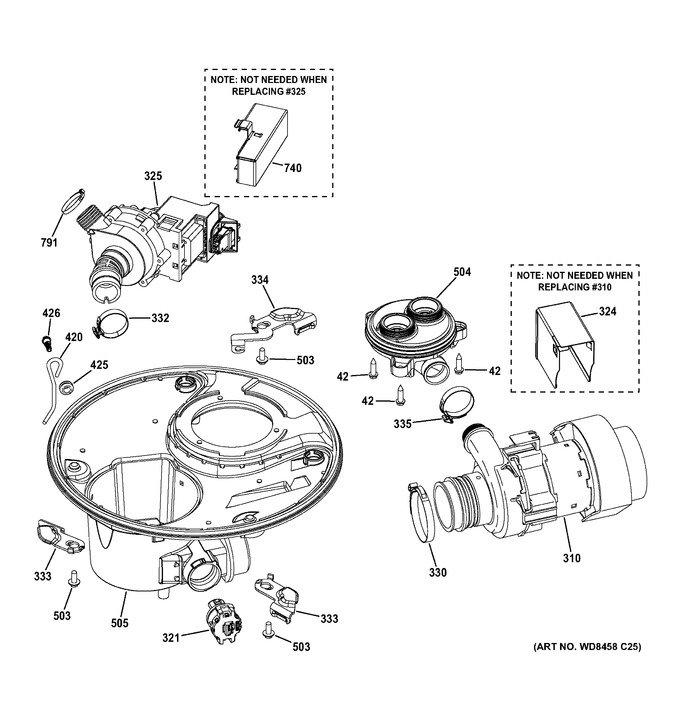

1 - Escutcheon & Door Assembly
2 - Body Parts
3 - Upper Rack Assembly
4 - Lower Rack Assembly
5 - Sump & Filter Assembly
6 - Sump & Motor Mechanism
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 42 | WD02X10110 | Screw #8-3/4 L Hx Hd Ss |
|
- | |||||
| 310 | WD26X10061 | Pump Wash Main Asm |
|
- | |||||
| 321 | WG04F05595 | Sensor Turbidity Asm (Replaces: WD21X10494) |
|
$ 50.92 | |||||
| 324 | WD01X10580 | Shield Wash Pump |
|
- | |||||
| 325 | WG04F10705 | Pump Drain (Replaces: WD26X10062) |
|
$ 291.00 | |||||
| 330 | WG04A01134 | Clamp (Replaces: WD01X10571) |
|
Immediately | $ 21.85 | ||||
| 332 | WD01X10573 | Clamp |
|
- | |||||
| 333 | WD01X10632 | Latch Cam |
|
- | |||||
| 334 | WD01X10575 | Latch Cam |
|
- | |||||
| 335 | WD01X10572 | Clamp |
|
- | |||||
| 420 | WD01X10579 | Hanger Drain Pump |
|
- | |||||
| 425 | WD01X10101 | Grommet |
|
- | |||||
| 426 | WD02X10094 | Wd02x10093 |
|
- | |||||
| 503 | WB01T10103 | Scr 10-16 Ab Hxw .532 |
|
- | |||||
| 504 | WD18X10052 | Diverter Passive Asm |
|
- | |||||
| 505 | WG04F06743 | Sump Manifold (Replaces: WD18X10054) |
|
$ 66.87 | |||||
| 740 | WD01X10584 | Shield Drain Pump |
|
- | |||||
| 791 | WW01A00722 | Clamp (Replaces: WD01X10611) |
|
$ 12.71 | |||||
| WG04L06024 | Gasket Tub (Replaces: WG04L04120) |
|
Immediately | $ 92.18 | |||||
| WG04A01463 | Kit Dry Enhancement Ps |
|
$ 221.40 | ||||||
| WG04F06983 | Cover Vent (Replaces: WG04L02101) |
|
$ 15.54 | ||||||
| WG04L01703 | Gasket Vent |
|
$ 14.02 | ||||||
| WG04L01634 | Door Vent Seal |
|
Immediately | $ 11.12 | |||||
| WG03A02167 | Arm Spray Upper Asm (Replaces: WG04L01519) |
|
Immediately | $ 98.12 | |||||
| WG04F08972 | Joint Plastique |
|
Immediately | $ 14.48 | |||||
| WG04F07745 | Interface User Top |
|
$ 194.10 | ||||||
| WG04F06701 | Diverter Air Asm |
|
$ 67.82 | ||||||
| WG04F11770 | Valve Water Asm (Replaces: WG04F05889) |
|
Immediately | $ 76.30 | |||||
| WG04F04857 | Interrupteur Asm |
|
Immediately | $ 100.20 | |||||
| WG04A05239 | Module Detergent (Replaces: WG04F04754) |
|
Immediately | $ 108.73 | |||||
| WG04F04726 | Latch Tub Side Standard |
|
Immediately | $ 69.95 | |||||
| WG04A05153 | Element Heating Asm (Replaces: WG04F04624) |
|
Immediately | $ 173.90 | |||||
| WG04F04609 | Drain Tube Asm |
|
Immediately | $ 42.93 | |||||
| WG04F04517 | Ens Poulie |
|
Immediately | $ 19.06 | |||||
| WG04A03393 | Board Main Control (Replaces: WG04F04510) |
|
$ 222.56 | ||||||
| WG04F12108 | Pump Drain Kit (Replaces: WG04A02642) |
|
Immediately | $ 208.41 | |||||
| WG04A02383 | Ressort Porte |
|
Immediately | $ 17.47 |
