SELECT A DIAGRAM
1 - Doors
2 - Freezer Section
3 - Freezer Shelves
4 - Fresh Food Section
5 - Fresh Food Shelves
6 - Case Parts

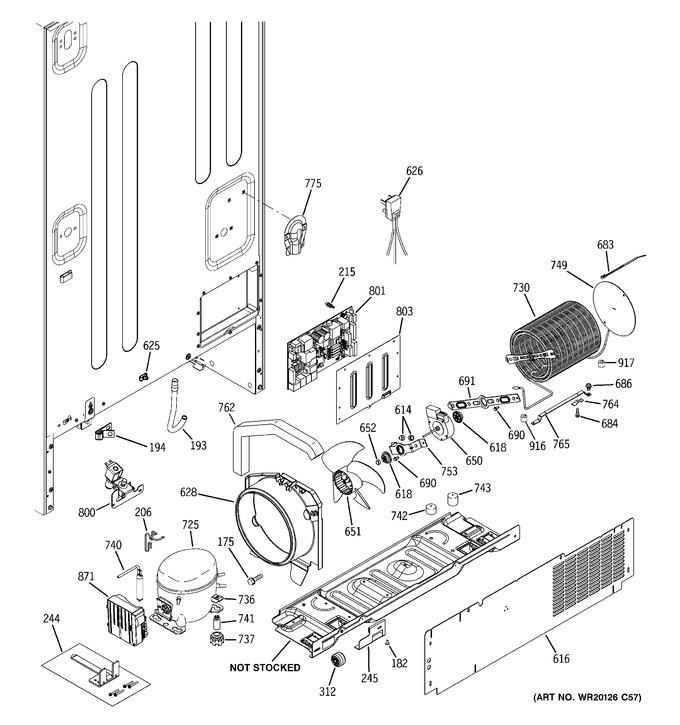

7 - Machine Compartment
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 175 | WR01X10035 | Scr 8-18 Ab Ihw 5/8 S |
|
- | |||||
| 182 | WR01X10622 | Scr 10-32 B Ihxw 1/2 |
|
- | |||||
| 194 | WR01X10684 | Clamp Cable |
|
- | |||||
| 206 | WR02X12377 | Clip Drain Tube |
|
- | |||||
| 206 | WR13X10565 | Hinge Closure Asm |
|
- | |||||
| 215 | WR02X10663 | Stand Off |
|
- | |||||
| 244 | WR49X10179 | Kit Anti Tip Asm |
|
- | |||||
| 245 | WR17X12267 | Anti Tip Base Bracket |
|
- | |||||
| 312 | WG03L06838 | Wheel Mobility Rear (Replaces: WR02X10695) |
|
$ 19.06 | |||||
| 614 | WR01A00163 | Bumper Lid (Replaces: WR02X10540) |
|
Immediately | $ 6.35 | ||||
| 616 | WR01L00714 | Cover Access (Replaces: WR82X10109) |
|
$ 119.45 | |||||
| 618 | WR01A00579 | Grommet Evap Fan (Replaces: WR02X11331) |
|
$ 3.97 | |||||
| 626 | WR23X108 | Power Cord |
|
- | |||||
| 628 | WR01L04391 | Shroud Condenser (Replaces: WR17X12668) |
|
$ 26.20 | |||||
| 650 | WR60X10216 | Motor Dc Cond Fan |
|
- | |||||
| 652 | WG03F01616 | Ring Compression (Replaces: WR02X12149) |
|
$ 3.97 | |||||
| 683 | WR02X11027 | Wire Tie |
|
- | |||||
| 684 | WR01X10602 | Scr 8-32 Ab Ihws 3/8 S |
|
- | |||||
| 686 | WR01X10252 | Scr 10-32 Tt Hxw 5/16 S |
|
- | |||||
| 690 | WR1X1466 | Scr 8-32 T Hxw 3/8 S |
|
- | |||||
| 691 | WR02X10593 | Bracket Cond Fan (rear) |
|
- | |||||
| 725 | WR87X10123 | Inverter Compressor Emb |
|
- | |||||
| 730 | WR01F02892 | Condenser Asm (Replaces: WR84X10022) |
|
$ 403.54 | |||||
| 736 | WR2X8203 | Clip Compressor Mount |
|
- | |||||
| 737 | WR01F00846 | Grommet (Replaces: WR02X10099) |
|
$ 7.15 | |||||
| 742 | WR02X10587 | Support Condenser |
|
- | |||||
| 743 | WR02X10588 | Support Condenser |
|
- | |||||
| 749 | WR17X11978 | Baffle Cond Air |
|
- | |||||
| 753 | WR02X10521 | Brkt Cond Fan (mtg) |
|
- | |||||
| 764 | WR2X9000 | Clip, Cond Mnt |
|
- | |||||
| 765 | WR17X10763 | Bracket Condenser Bar |
|
- | |||||
| 775 | WR17X13124 | Cover Water Line |
|
- | |||||
| 800 | WR57X10086 | Valve And Tube Asm |
|
- | |||||
| 801 | WR55X11062 | Board Main Combined Hmi |
|
- | |||||
| 803 | WR02X12025 | Main Board Enclosure Asm |
|
- | |||||
| 916 | WR02X13569 | Grommet |
|
- | |||||
| 917 | WR02X13573 | Grommet |
|
- | |||||
| WR01L00507 | Came D. |
|
$ 15.49 | ||||||
| WR01L00735 | Couvercle |
|
$ 124.60 | ||||||
| WR01L00902 | Couvercle Supﾃ#rieur Du Bac |
|
$ 134.73 | ||||||
| WR01L01465 | Porte Du Rﾃ#frigﾃ#rateur Doit Asm |
|
$ 202.67 | ||||||
| WG03F00154 | Compressor Repl Kit (charged) |
|
$ 1,117.00 | ||||||
| WR01L02285 | Panneau Infﾃ#rieur |
|
$ 62.29 | ||||||
| WR01L02481 | Charniﾃ#re Asm |
|
$ 62.98 | ||||||
| WR01L02482 | Charniﾃ#re Asm |
|
$ 62.98 | ||||||
| WR01L02559 | Machine ﾃ# Glaﾃ#ons (Replaces: WR01L02566) |
|
Immediately | $ 136.45 | |||||
| WR01L02088 | Gasket |
|
Immediately | $ 154.00 | |||||
| WG04A00766 | Inverter W/jumpers Kit |
|
Immediately | $ 554.11 | |||||
| WR01A00382 | Mobility Wheel Kit Asm |
|
$ 35.11 | ||||||
| WR01A01822 | Kit Slide Holder 21 Bf |
|
$ 123.50 | ||||||
| WR01F00291 | Board Main Combined Hmi |
|
Immediately | $ 435.93 | |||||
| WR01L00497 | Came G. |
|
$ 15.49 |
