SELECT A DIAGRAM

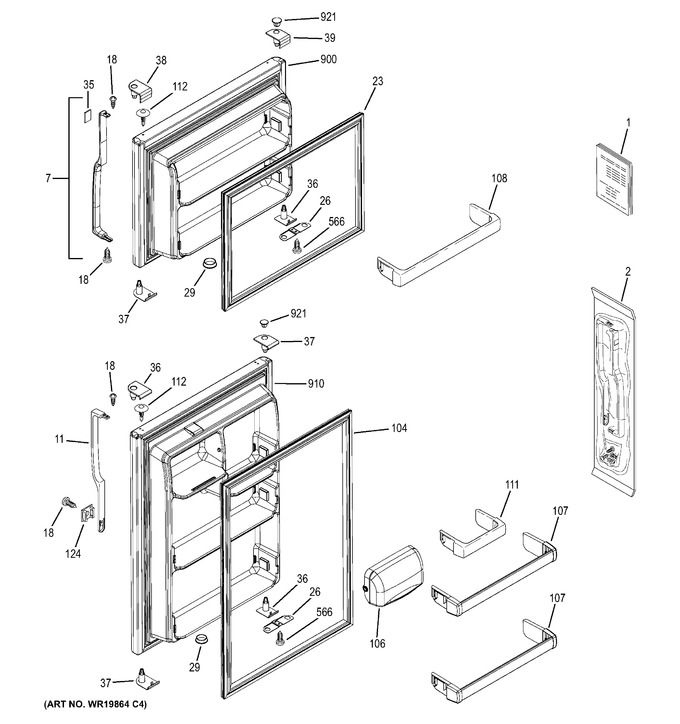

1 - Doors


2 - Freezer Section


3 - Evaporator Instructions


4 - Fresh Food Section


5 - Fresh Food Shelves


6 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-51742		Pm Mini Manual Wiring		Appelez-nous	-
1	49-60511		Pm Guide Owners		Appelez-nous	-
2	WR12X10760		Pk Handle Small Asm		Appelez-nous	-
2	WR12X10761		Pk Handle Small Asm		Appelez-nous	-
7	WR12X10607		Handle Asm Fz		Appelez-nous	-
7	WR12X10610		Handle Asm Fz		Appelez-nous	-
11	WG03L01291		Handle Door Ff   (Replaces: WR12X10770)				$ 54.47
11	WR12X10771		Handle Door Ff		Appelez-nous	-
18	WR1X1726		Scr 10-16 Ab 3/4 Ss		Appelez-nous	-
23	WR24X10187		Gasket Door Fz		Appelez-nous	-
23	WG03L00638		Gasket Door Fz   (Replaces: WR24X10185)				$ 173.61
26	WR02X10752		Stop Door Fz Bk		Appelez-nous	-
26	WR02X10767		Stop Door Wh		Appelez-nous	-
35	WR04X10030		Lens Nameplate Bk		Appelez-nous	-
35	WG03F01617		Lens Nameplate Wh   (Replaces: WR04X10028)				$ 4.37
36	WR02X11761		Cap Door Corner		Appelez-nous	-
36	WR02X11776		Cap Door Corner		Appelez-nous	-
37	WR02X11762		Cap Door Corner		Appelez-nous	-
37	WR02X11777		Cap Door Corner		Appelez-nous	-
38	WR02X11763		Cap Door Corner		Appelez-nous	-
38	WR02X11778		Cap Door Corner		Appelez-nous	-
39	WR02X11779		Cap Door Corner		Appelez-nous	-
39	WR02X11764		Cap Door Corner		Appelez-nous	-
104	WG03L00637		Gasket Door Ff   (Replaces: WR24X10184)				$ 193.30
104	WG03L01328		Gasket Door Ff   (Replaces: WR24X10186)				$ 178.69
106	WG03L09118		Door Diary Clear   (Replaces: WR22X10024)				$ 63.72
107	WR71X10683		Shelf Front Ff		Appelez-nous	-
108	WG03L01680		Shelf Front Full Fz   (Replaces: WR71X10681)				$ 76.98
111	WG03L01575		Shelf Front Half Ff   (Replaces: WR71X10682)				$ 72.54
112	WR01A00517		Plug Door Rvsbl Wh   (Replaces: WR2X8693)				$ 4.37
112	WR01A00518		Plug Door Rvsbl Bk   (Replaces: WR2X8701)				$ 4.20
124	WR12X10129		Plug Button Handle Wh		Appelez-nous	-
124	WR12X10136		Plug Button Handle Bk		Appelez-nous	-
566	WR01X10590		Scr 10-16 Ab Pnt20 1/2 S		Appelez-nous	-
900	WR78X10599		Kit Rplcmt Wr78x10599		Appelez-nous	-
900	WR78X10413		Kit Rplcmt Wr78x10413		Appelez-nous	-
910	WR78X10412		Kit Rplcmt Wr78x10412		Appelez-nous	-
910	WR48X10598		Kit Rplcmt Wr78x10598		Appelez-nous	-
921	WG03F02242		Plug Door Thimble Bk   (Replaces: WR02X10751)				$ 4.20
921	WR02X10724		Plug Door Thimble Wh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
