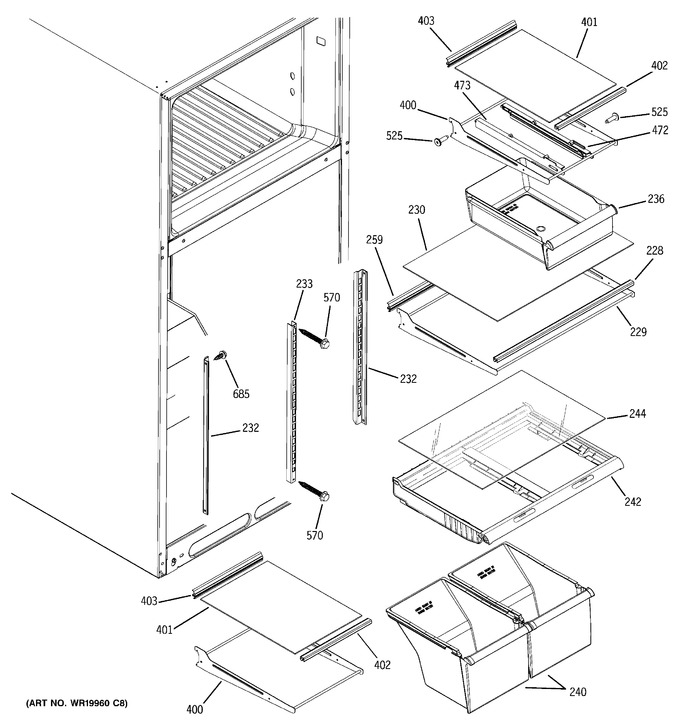

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
228	WR38X10221		Trim Front Glass Shelf		Appelez-nous	-
229	WR38X10223		Trim Rear Glass Shelf		Appelez-nous	-
229	WR71X10279		Shelf Cant Full		Appelez-nous	-
232	WR72X10057		Track Cant Side		Appelez-nous	-
233	WR72X10212		Track Cant Center		Appelez-nous	-
240	WR32X10846		Pan 1/2		Appelez-nous	-
242	WG03L01141		Cover Veg Pan   (Replaces: WR32X10537)			Immediately	$ 183.50
244	WG03L01564		Shelf Cant Glass   (Replaces: WR32X10540)			Immediately	$ 64.87
400	WG03L01565		Shelf Cant Half   (Replaces: WR71X10280)				$ 83.03
401	WR32X10177		Shelf Cant Glass Half		Appelez-nous	-
402	WR38X10224		Trim Rear Glass Shelf		Appelez-nous	-
403	WR38X10222		Trim Front Glass Shelf		Appelez-nous	-
472	WG03L01608		Slide Snack Pan   (Replaces: WR72X10086)				$ 74.17
473	WG03L01607		Slide Snack Pan Lh   (Replaces: WR72X10055)				$ 41.29
525	WR1X1763		Scr 8-18 T Wafer 5/8		Appelez-nous	-
570	WR1X1757		Scr 8-18 Hxw 1 1/4s		Appelez-nous	-
