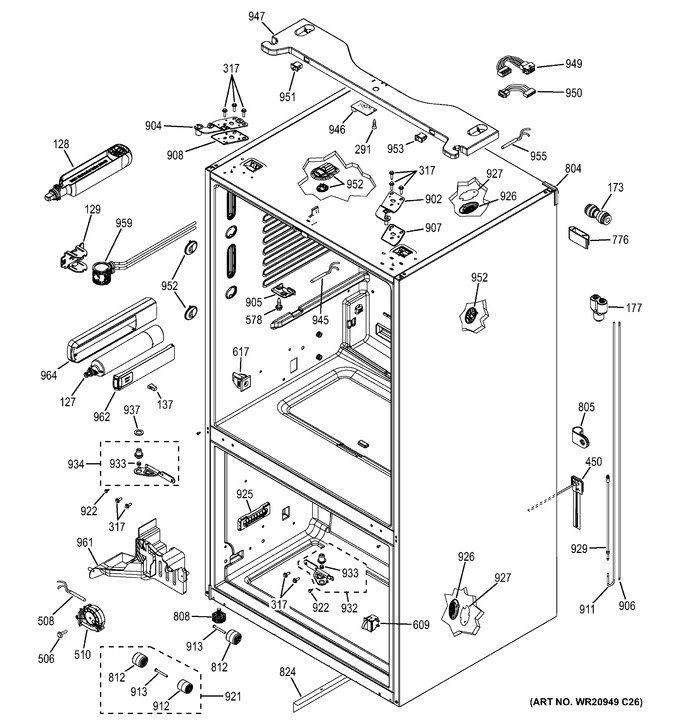

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 127 | PMRPWFE | Refrigeration Water Filt (Replaces: RPWF) |
|
$ 84.14 | |||||
| 128 | WR17X13068 | Plug Bypass Asm Pn55-681 |
|
- | |||||
| 129 | WR17X13069 | Brkt Filter Manifold |
|
- | |||||
| 137 | WG03L05211 | Latch Filter Door (Replaces: WR11X10032) |
|
$ 17.01 | |||||
| 173 | WR02X13671 | Coupler Straight 1/4 |
|
- | |||||
| 291 | WR01X10649 | Scr 8-10 Pl Pnp 1/2 S |
|
- | |||||
| 291 | WR01A01034 | Screw 8-10 Pl Pnp 1/2 S (Replaces: WR01X10221) |
|
$ 4.20 | |||||
| 317 | WR01X11011 | Scr1/4-20 Hxw 3/4s |
|
- | |||||
| 506 | WG04A00176 | Screw 8-16 Hxw 1/2 Ss (Replaces: WD02X10067) |
|
$ 3.97 | |||||
| 508 | WR55X11151 | Sensor Temperature |
|
- | |||||
| 510 | WR60X10342 | Fan Motor Im Asm / Senso |
|
$ 138.51 | |||||
| 578 | WR01X11012 | Scr 8-18 Ab Hxw 9/16 S |
|
- | |||||
| 609 | WG03F09086 | Switch Light (Replaces: WR23X10143) |
|
Immediately | $ 11.12 | ||||
| 617 | WR2X8349 | Grommet Scr Closed |
|
- | |||||
| 776 | WG03A00749 | Clamp Tube (Replaces: WR02X10522) |
|
$ 9.25 | |||||
| 804 | WR02X13720 | Cap Case Corner Wh |
|
- | |||||
| 805 | WR2X3736 | Str Relief |
|
- | |||||
| 808 | WR01X11046 | Screw Leveling Asm |
|
- | |||||
| 812 | WR02X13693 | Wheel Overmold Asm Rear |
|
- | |||||
| 824 | WR17X13096 | Baffle Air Highside |
|
- | |||||
| 902 | WR13X10974 | Hinge Top Pin Asm Rh |
|
- | |||||
| 904 | WR13X10975 | Hinge Top Pin Asm Lh |
|
- | |||||
| 905 | WR02X13716 | Striker Top Mullion |
|
- | |||||
| 906 | WR02X13699 | Tube Pex Mc Valve |
|
- | |||||
| 907 | WR02X13717 | Pad Top Hinge Asm Rh |
|
- | |||||
| 908 | WR02X13718 | Pad Top Hinge Asm Lh |
|
- | |||||
| 911 | WR02X13673 | Tubing Pex 55.3 In |
|
- | |||||
| 912 | WR02X13685 | Wheel |
|
- | |||||
| 913 | WR01X11008 | Axle Wheel |
|
- | |||||
| 921 | WR49X10268 | Front/rear Wheel & Axle |
|
- | |||||
| 922 | WR01X11037 | Scr8-32 Tt Pnt 5/8s |
|
- | |||||
| 925 | WR02X13623 | Louver Duct Im Return Fz |
|
- | |||||
| 927 | WR01X11009 | Shunt Sensor |
|
- | |||||
| 929 | WR02X13672 | Tube Lead Asm |
|
- | |||||
| 932 | WR13X10976 | Hinge Center Asm Rh |
|
- | |||||
| 933 | WR01X11016 | Screw Hinge Ctr Adj |
|
- | |||||
| 934 | WR13X10977 | Hinge Center Asm Lh |
|
- | |||||
| 945 | WR55X11150 | Sensor Temperature |
|
- | |||||
| 946 | WR55X11145 | Pcb Asm Zigbee Hum Mod |
|
- | |||||
| 947 | WR17X13148 | Cover Hinge Wh & Shields |
|
- | |||||
| 949 | WR23X10762 | Harness Door Switch Ac |
|
- | |||||
| 950 | WR23X10738 | Harness Door Case |
|
- | |||||
| 951 | WR23X10758 | Switch Light Ff Wh |
|
- | |||||
| 952 | WG03L00855 | Cover Led Asm, Ff (Replaces: WR55X11132) |
|
Immediately | $ 76.82 | ||||
| 953 | WR23X10759 | Switch Light Ff Wh |
|
- | |||||
| 955 | WR55X11153 | Sensor Temperature |
|
- | |||||
| 959 | WG03F03829 | Filter Manifold (Replaces: WR02X13684) |
|
Immediately | $ 127.19 | ||||
| 961 | WR17X13100 | Plate Mtg Fz Im |
|
- | |||||
| 962 | WR02X13682 | Door Water Filter |
|
- | |||||
| 964 | WR02X13683 | Cover Water Filter |
|
- |
