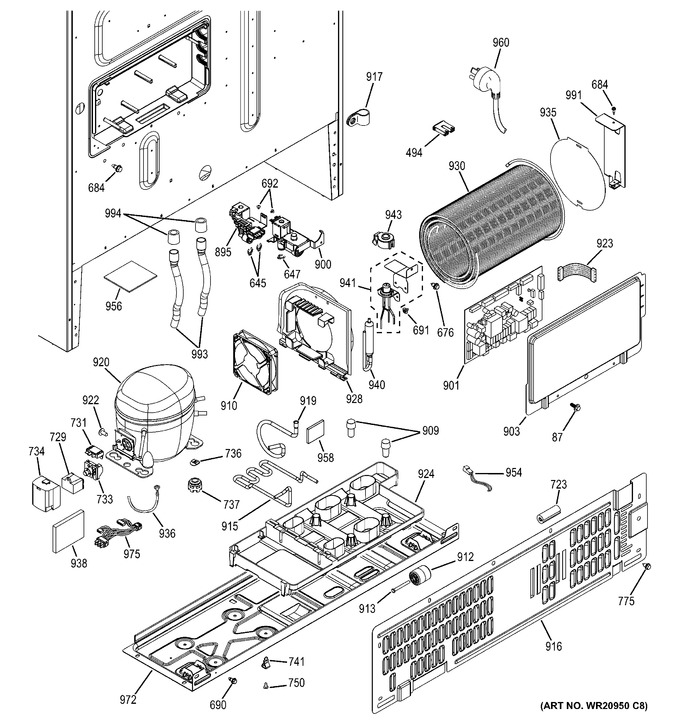

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 87 | WR01A00683 | Scr 8-18 Ab Ihxw 9/16 S (Replaces: WR01X10588) |
|
$ 3.97 | |||||
| 494 | WD1X1459 | Insulator Hsng Term |
|
- | |||||
| 645 | WR01X11020 | Clip Connector 1/4 |
|
- | |||||
| 647 | WR01X11041 | Quick Clip Connector 1/4 |
|
- | |||||
| 684 | WR01X10635 | Scr 8-32 Ca Ihxw .625 S |
|
- | |||||
| 684 | WR01X10602 | Scr 8-32 Ab Ihws 3/8 S |
|
- | |||||
| 690 | WZ05X0158 | Screw 8-32x3/8 Grd Scr |
|
- | |||||
| 691 | WR01X10897 | Scr 12-24tt Bht20 .700 S |
|
- | |||||
| 692 | WZ04X0416 | Scr 8-18 Ab Hxw 3/4 |
|
- | |||||
| 723 | WR14X10055 | Grommet Tubing Slit |
|
- | |||||
| 729 | WR01F02043 | Capacitor (Replaces: WR62X79) |
|
Immediately | $ 17.17 | ||||
| 731 | WR08X10135 | Overload |
|
- | |||||
| 733 | WR07X10083 | Relay Start |
|
- | |||||
| 734 | WR02X10556 | Cover Relay Snap (mei) |
|
- | |||||
| 736 | WR2X8583 | Clip Comp Mtng |
|
- | |||||
| 741 | WR1X1779 | Stud Mtg Compr |
|
- | |||||
| 750 | WR1X1786 | Scr 10-32 Tr 1/2 |
|
- | |||||
| 775 | WD02X10126 | Scr 10-16 Hxw 3/8 S |
|
- | |||||
| 895 | WR55X11146 | Valve Im Water Asm |
|
- | |||||
| 900 | WG03F01801 | Valve Water Iso Asm (Replaces: WR55X11128) |
|
$ 79.46 | |||||
| 901 | WR55X11175 | Board Asm Main Control |
|
- | |||||
| 903 | WR02X13714 | Cover Mainboard |
|
- | |||||
| 909 | WR02X13668 | Support Condenser |
|
- | |||||
| 910 | WG03F04083 | Fan Motor Condenser Dc (Replaces: WR60X10339) |
|
Immediately | $ 170.91 | ||||
| 912 | WR02X13685 | Wheel |
|
- | |||||
| 913 | WR01X11008 | Axle Wheel |
|
- | |||||
| 915 | WR84X10112 | Jumper Comp Discharge |
|
- | |||||
| 916 | WR82X10127 | Cover Access |
|
- | |||||
| 917 | WR01X11026 | Clamp Tube |
|
- | |||||
| 919 | WR84X10114 | Tube Suction Jumper |
|
- | |||||
| 920 | WG03F00133 | Aasm Hi Side Wr87x10211 (Replaces: WR87X10211) |
|
Immediately | $ 1,045.82 | ||||
| 922 | WR01X11037 | Scr8-32 Tt Pnt 5/8s |
|
- | |||||
| 923 | WR23X10765 | Harness Personality |
|
- | |||||
| 924 | WR32X10862 | Pan Drain |
|
- | |||||
| 928 | WR17X13046 | Plenum Condenser Fan Asm |
|
- | |||||
| 930 | WR84X10109 | Cond Rolled Bracket Asm |
|
- | |||||
| 935 | WR17X13045 | Baffle Cond Air |
|
- | |||||
| 936 | WR23X10748 | Harness Ground |
|
- | |||||
| 938 | WR82X10129 | Blanket Acoustic |
|
- | |||||
| 940 | WR86X10089 | Dryer Filter |
|
- | |||||
| 941 | WR02X13687 | Bracket Pri Valve Body |
|
- | |||||
| 943 | WR86X10091 | Coil 3 Way Valve |
|
- | |||||
| 954 | WR23X10768 | Harness Doghouse |
|
- | |||||
| 956 | WR02X13713 | Pad Mastic |
|
- | |||||
| 960 | WG03F01799 | Power Cord (Replaces: WR23X10744) |
|
$ 61.96 | |||||
| 972 | WR17X13128 | Base Compressor |
|
- | |||||
| 991 | WR02X13622 | Bracket Condenser |
|
- | |||||
| 993 | WR02X13710 | Tube Trap Drain |
|
- | |||||
| 994 | WR01X11006 | Check Valve |
|
- | |||||
| WG03F05190 | Poignee Asm. Refrig. |
|
$ 181.23 | ||||||
| WG03A00275 | Rondelle |
|
Immediately | $ 9.53 | |||||
| WG03A01080 | Vis |
|
$ 6.35 |
