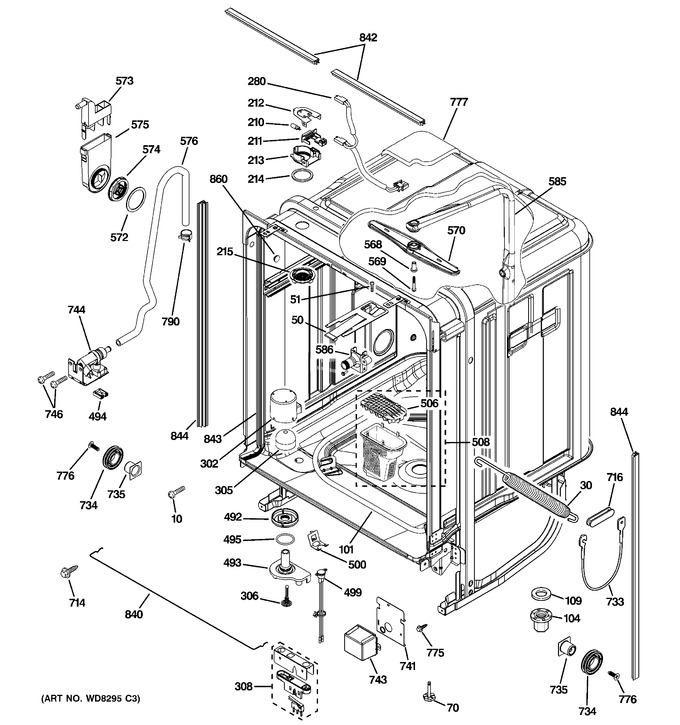

1 - Escutcheon & Door Assembly


2 - Body Parts


3 - Upper Rack Assembly


4 - Lower Rack Assembly


5 - Motor-pump Mechanism


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
30	WD03X10022		Spring Door		Appelez-nous	-
50	WG03F01990		Latch Keeper Asm   (Replaces: WD13X10064)				$ 75.23
51	WD02X10117		Scr 8-18 Va Trt 7/16 S N		Appelez-nous	-
101	WD05X10010		Element Heating Asm		Appelez-nous	-
104	WD01X10214		Nut Tower Heater Asm		Appelez-nous	-
109	WG04F00473		Grommet Heater   (Replaces: WD01X10094)				$ 23.82
210	WD21X10213		Lamp Xenon		Appelez-nous	-
211	WD21X10212		Socket Lamp		Appelez-nous	-
212	WD01X10275		Reflector Tub Light		Appelez-nous	-
213	WD01X10273		Fixture Tub Light		Appelez-nous	-
214	WD08X10058		Gasket Tub Light		Appelez-nous	-
215	WD01X10274		Lens Tub Light		Appelez-nous	-
280	WD21X10374		Harness Light Asm		Appelez-nous	-
302	WG04F00293		Dome Float   (Replaces: WD12X10119)				$ 9.53
305	WD12X10406		Float		Appelez-nous	-
306	WG04F01021		Stem Float   (Replaces: WD12X10048)				$ 89.95
492	WD12X10135		Locknut		Appelez-nous	-
493	WD12X10183		Base Flood Switch		Appelez-nous	-
494	WD21X10355		Hsng Special-water Valve		Appelez-nous	-
499	WD01X10512		Thermostat - Safety		Appelez-nous	-
500	WD01X10425		Bracket Tco		Appelez-nous	-
506	WG04L01576		Cover Inlet   (Replaces: WD12X10400)				$ 68.68
508	WG04L01684		Filter Sump & Cover Asm   (Replaces: WD22X10077)			Immediately	$ 135.93
568	WG04A01025		Bearing Spray Arm Up   (Replaces: WD01X10410)				$ 3.97
569	WG04A01261		Scr 8-32 B Hxw 1.13 Ss   (Replaces: WD02X10109)				$ 15.88
570	WG04L01520		Arm Spray Upper Asm   (Replaces: WD22X10069)				$ 59.78
570	WG04L01520		Arm Spray Upper Asm   (Replaces: WD22X10084)				$ 59.78
572	WG04L00218		Gasket Water Inlet   (Replaces: WD08X10044)				$ 21.63
573	WG04L00110		Cover Water Inlet   (Replaces: WD12X10129)				$ 9.53
574	WG04A00871		Nut Water Inlet   (Replaces: WD01X10220)				$ 12.71
575	WD12X10181		Funnel And Gasket Asm		Appelez-nous	-
576	WG01F01545		Hose Fill   (Replaces: WD24X10024)				$ 113.54
585	WD12X10113		Conduit Main		Appelez-nous	-
586	WD12X10121		Cone Docking		Appelez-nous	-
714	WG04A00016		Badge Monogram Small   (Replaces: WB02X10833)				$ 91.76
716	WG04L00677		Link Hinge Arm   (Replaces: WD14X10009)			Immediately	$ 6.35
733	WG04F00096		Cable Asm   (Replaces: WD01X10235)			Immediately	$ 15.88
734	WG04L01851		Pulley Hinge   (Replaces: WD01X10217)				$ 63.62
735	WG04L01583		Cup Hinge   (Replaces: WD01X10218)				$ 20.65
741	WD12X10124		Bracket J Box		Appelez-nous	-
744	WG03F00838		Valve Water Inlet   (Replaces: WD15X10014)			Immediately	$ 65.23
746	WD2X248		Scr 10-24x3/8 Tt Hex		Appelez-nous	-
775	WD2X5166		Scr 10-16x1/2 Ab Hexw S		Appelez-nous	-
776	WG04A01257		Scr 10-32 C Hx 7/16 S   (Replaces: WD02X10159)				$ 3.97
777	WD01X10550		Insulation Tub Blanket		Appelez-nous	-
790	WH1X2036		Clamp Hose		Appelez-nous	-
790	WD01X10293		Clamp Hose		Appelez-nous	-
840	WG02L01019		Spring Gasket   (Replaces: WD03X10020)				$ 19.06
842	WG04L01925		Trim Gasket   (Replaces: WD08X10054)				$ 33.35
843	WG04L00215		Gasket Tub   (Replaces: WD08X10032)			Immediately	$ 106.25
844	WG04F01196		Trim Gasket   (Replaces: WD08X10055)			Immediately	$ 38.12
860	WD01X10223		Plug Button		Appelez-nous	-
	WG04L01615		Door Inner & Gasket				$ 177.42
	WG02F03017		Pump Cntr Wgt Asm W/hngr			Immediately	$ 205.08
	WG04L01684		Filter Sump & Cover Asm			Immediately	$ 135.93
	WG04A02644		Module Control Asm Kit				$ 194.65
	WG04F00096		Cable Asm			Immediately	$ 15.88
	WG04L01741		Insulated Exhaust Vent				$ 85.80
	WG04F04636		Filter Fine Asm			Immediately	$ 109.01
	WG04F04741		Mechanism Asm			Immediately	$ 282.59
	WG04L00059		Basket Silverware End			Immediately	$ 65.21
	WG04L00215		Gasket Tub			Immediately	$ 106.25
