SELECT A DIAGRAM
1 - Escutcheon & Door Assembly

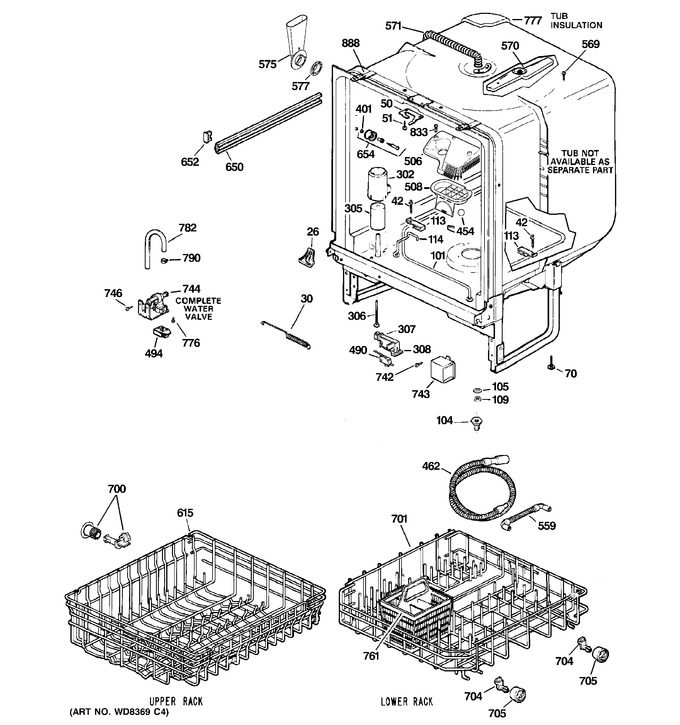

2 - Body Parts
3 - Motor-pump Mechanism
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 26 | WG04F00036 | Baffle Tub Corner Lh (Replaces: WD8X228) |
|
Immediately | $ 10.86 | ||||
| 26 | WG04F01565 | Baffle Tub Corner Rh (Replaces: WD8X227) |
|
Immediately | $ 10.86 | ||||
| 30 | WG04A01292 | Spring Door Bk 20 Lb (Replaces: WD03X10006) |
|
$ 136.29 | |||||
| 42 | WD02X10110 | Screw #8-3/4 L Hx Hd Ss |
|
- | |||||
| 51 | WD02X10066 | Screw 10-24x1/2 Tt Trr S |
|
- | |||||
| 70 | WG04A00321 | Screw Level (Replaces: WD2X320) |
|
$ 15.88 | |||||
| 101 | WG04A04608 | Element Heating Asm (Replaces: WD05X10009) |
|
$ 96.47 | |||||
| 101 | WD05X10011 | Element Heating Asm |
|
- | |||||
| 104 | WD01X10070 | Nut Tower Heater |
|
- | |||||
| 105 | WD1X1168 | Heater Washer |
|
- | |||||
| 109 | WD8X225 | Grommet Heater |
|
- | |||||
| 113 | WD01X10086 | Support Calrod Assy |
|
- | |||||
| 114 | WD1X1472 | Support Heater |
|
- | |||||
| 302 | WD12X445 | Float Dome |
|
- | |||||
| 305 | WD12X334 | Flood Float |
|
- | |||||
| 306 | WD12X335 | Float Stem |
|
- | |||||
| 307 | WD12X10023 | Bracket Flood Switch |
|
- | |||||
| 308 | WG04F01663 | Cover Bracket (Replaces: WD12X377) |
|
$ 9.53 | |||||
| 401 | WD3X767 | Washer St Stl |
|
- | |||||
| 462 | WG04F01563 | Hose Drain (Replaces: WD24X10014) |
|
Immediately | $ 68.11 | ||||
| 490 | WG04F01056 | Switch Flood (Replaces: WD21X479) |
|
$ 14.29 | |||||
| 494 | WD21X10355 | Hsng Special-water Valve |
|
- | |||||
| 506 | WD12X10356 | Cover Inlet |
|
- | |||||
| 508 | WD12X10358 | Cap Sump |
|
- | |||||
| 559 | WD24X10041 | Hose Chamber |
|
- | |||||
| 569 | WD02X10114 | Scr 8-18 Pl Hxw 3/8 S |
|
- | |||||
| 575 | WD12X10180 | Funnel Fill |
|
- | |||||
| 577 | WD08X10053 | Gasket Funnel Fill |
|
- | |||||
| 615 | WG04F12728 | Rack Asm Final Upper (Replaces: WD28X10210) |
|
Immediately | $ 236.95 | ||||
| 650 | WG04L00503 | Rack Slide (Replaces: WD30X98) |
|
$ 14.29 | |||||
| 652 | WG04L00086 | Rack Slide End Cap (Replaces: WD12X10304) |
|
Immediately | $ 94.28 | ||||
| 654 | WD12X332 | Roller Stud Asm |
|
$ 4.88 | |||||
| 700 | WG04A01309 | Stud & Roller Asm - Uppe (Replaces: WD12X10269) |
|
$ 6.35 | |||||
| 700 | WD12X10268 | Roller Slide - Upper |
|
- | |||||
| 700 | WG04A05238 | Rack Lower & Roller Asm (Replaces: WD28X10335) |
|
$ 209.83 | |||||
| 701 | WG04A05238 | Rack Asm Final Lower (Replaces: WD28X10284) |
|
$ 209.83 | |||||
| 704 | WG04L01910 | Stud Roller - Lower (Replaces: WD12X10265) |
|
$ 38.75 | |||||
| 705 | WG04A03477 | Roller Lower Rack (Replaces: WD12X10074) |
|
Immediately | $ 67.43 | ||||
| 705 | WG04A03477 | Roller Asm Lwr Rack Rear (Replaces: WD12X272) |
|
Immediately | $ 67.43 | ||||
| 744 | WG03F00838 | Valve Water Inlet (Replaces: WD15X10014) |
|
Immediately | $ 65.23 | ||||
| 746 | WD2X248 | Scr 10-24x3/8 Tt Hex |
|
- | |||||
| 761 | WG04F00380 | Basket Silverware Tm (Replaces: WD28X265) |
|
Immediately | $ 78.84 | ||||
| 776 | WG04A01257 | Scr 10-32 C Hx 7/16 S (Replaces: WD02X10159) |
|
$ 3.97 | |||||
| 777 | WG04A05053 | Insulation Tub (Replaces: WD01X10419) |
|
$ 34.94 | |||||
| 777 | WD01X10266 | Insulation Tub |
|
- | |||||
| 782 | WG04F00460 | Water Inlet Hose (Replaces: WD18X202) |
|
$ 14.29 | |||||
| 790 | WH1X2036 | Clamp Hose |
|
- | |||||
| 833 | WD02X10195 | Scr 8-16 Ab 1hxw 1.25 Ss |
|
- | |||||
| 888 | WD35X200 | Bracket Counter |
|
- | |||||
| WG04F01873 | Mechanism S/s Asm |
|
Immediately | $ 213.64 | |||||
| WG04F04501 | Ball Filter - Orange |
|
Immediately | $ 23.82 | |||||
| WG04F04519 | Cam Timer |
|
$ 1.93 | ||||||
| WG04F04847 | Sump Inlet |
|
$ 49.33 | ||||||
| WG04F04929 | Timer |
|
$ 122.79 | ||||||
| WG04F06723 | Filter Fine Asm |
|
$ 42.88 | ||||||
| WG04F06912 | Clamp (pump Connector) |
|
- | ||||||
| WG04L00086 | Rack Slide End Cap |
|
Immediately | $ 94.28 | |||||
| WG04L00152 | Door |
|
$ 87.93 | ||||||
| WG04L00216 | Door Gasket |
|
Immediately | $ 45.20 | |||||
| WG04L00503 | Slide Rack |
|
$ 14.29 | ||||||
| WG04L01528 | Base Spray Arm Horizon |
|
Immediately | $ 59.78 | |||||
| WG04L01568 | Cover Det Cup |
|
$ 13.53 | ||||||
| WG04L03171 | Cap Tower Upper |
|
$ 4.20 | ||||||
| WG04F12728 | Rack Asm Final Upper (Replaces: WG04L01855) |
|
Immediately | $ 236.95 | |||||
| WG04L01923 | Tower Upper Rack |
|
$ 17.47 | ||||||
| WG04L01956 | Arm Hinge |
|
$ 26.16 | ||||||
| WG04L01957 | Arm Hinge |
|
$ 26.16 | ||||||
| WG04L03110 | Drip Shield |
|
$ 17.01 | ||||||
| WG04L03179 | Seal Cap Tower Upper |
|
$ 9.76 | ||||||
| WG04A00032 | Bracket & Solenoid |
|
Immediately | $ 83.70 | |||||
| WG02F04142 | Shaft Det Cp |
|
Immediately | $ 58.52 | |||||
| WG03F00838 | Valve Water Inlet |
|
Immediately | $ 65.23 | |||||
| WG04A00077 | Clamp |
|
$ 15.88 | ||||||
| WG04A01084 | Detergent Trip Spring |
|
$ 3.97 | ||||||
| WG04A01309 | Stud Roller Upper Asm |
|
$ 6.35 | ||||||
| WG04A00032 | Bracket & Solenoid (Replaces: WG04A02658) |
|
Immediately | $ 83.70 | |||||
| WG04F00036 | Tub Corner Baffle Lh |
|
Immediately | $ 10.86 | |||||
| WG04F00607 | Latch Asm |
|
$ 55.68 | ||||||
| WG04F00608 | Latch Detergent Cup |
|
$ 57.25 | ||||||
| WG04F00655 | Motor & Pump Asm |
|
Immediately | $ 273.84 | |||||
| WG04F01165 | Timer Knob |
|
$ 12.71 | ||||||
| WG04F01561 | Pump Connector |
|
Immediately | $ 62.03 | |||||
| WG04F01563 | Drain Hose |
|
Immediately | $ 68.11 | |||||
| WG04F01565 | Tub Corner Baffle Rh |
|
Immediately | $ 10.86 | |||||
| WG04F01660 | Tank Rinse Aid Asm |
|
$ 73.11 |
